USE
MAINTENANCE
3
Rebound hydraulic brake:

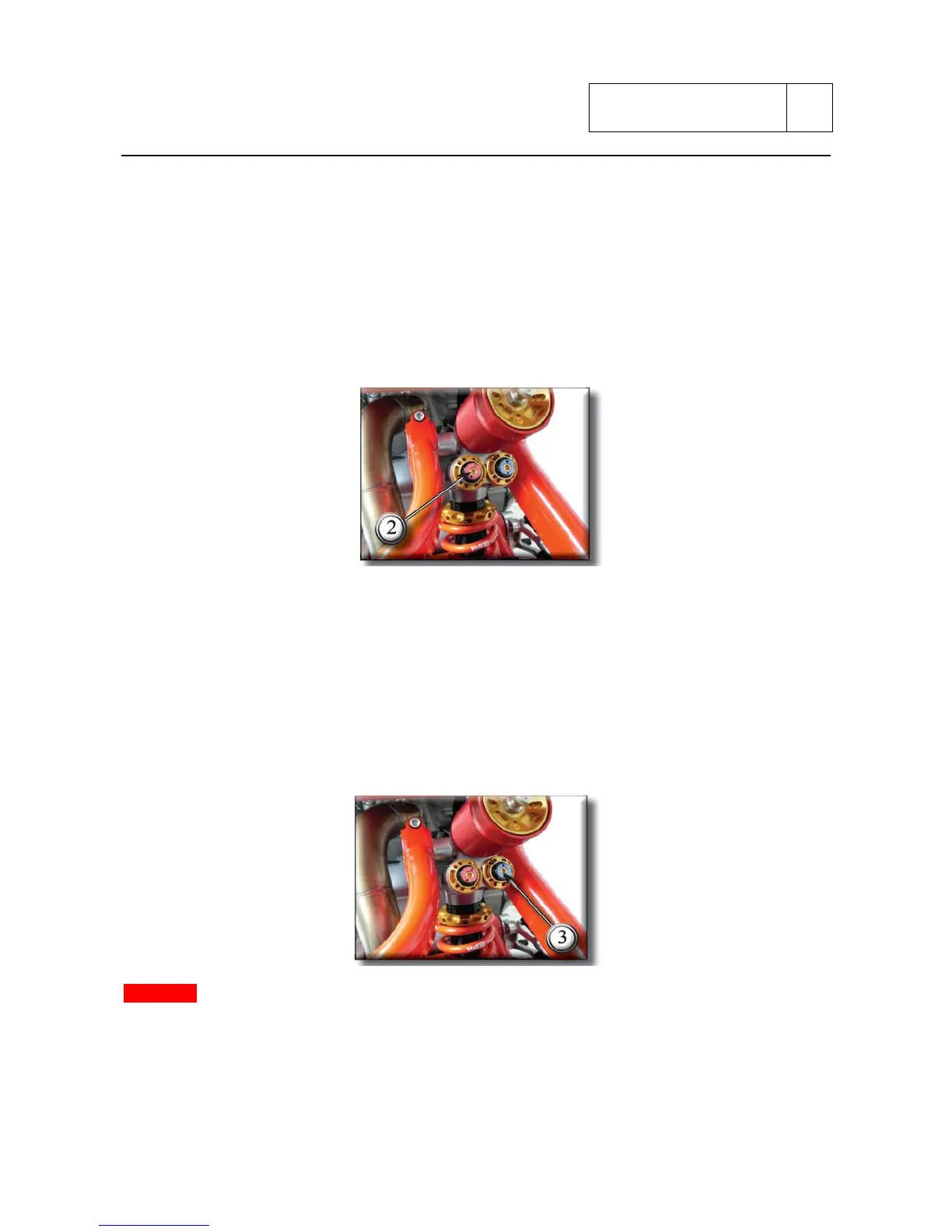

The rebound adjuster (2) is placed in the upper part of the shock absorber and is adjustable both
for low and high speeds. To adjust the rebound to high speed use a 15mm wrench while for low
speed a 4mm hexagonal key.
Rotating the adjuster you will notice clicks, count the number of clicks from all closed position
(clockwise) for high speed, while for low speed refer the adjuster mark to the numbered scale.
SOFT: rotate the adjuster counter clockwise, in case of light loads and driving on standard and
plain road.
HARD: rotate the adjuster clockwise, for a more severe drive and rough roads.
Compression hydraulic brake:
The compression adjuster (3) is placed on the upper part of the shock absorber and is adjustable
both for low and high speed. To adjust the compression to high speed use a 15mm wrench while
for low speed a 4mm hexagonal key.
Rotating the adjuster you will notice clicks, count the number of clicks from all closed position
(clockwise) for high speed, while for low speed refer the adjuster mark to the numbered scale.
SOFT: rotate the adjuster counter clockwise in case of light loads and driving on standard and plain
road.
HARD: rotate the adjuster clockwise for a more severe drive and rough roads.
CAUTION
The shock absorber contains high pressure gas and could cause serious damages if dismantled by
inexperienced personnel.
Sub 3-45
