4.14.1 Example of the L2TP Tunnel Configuration

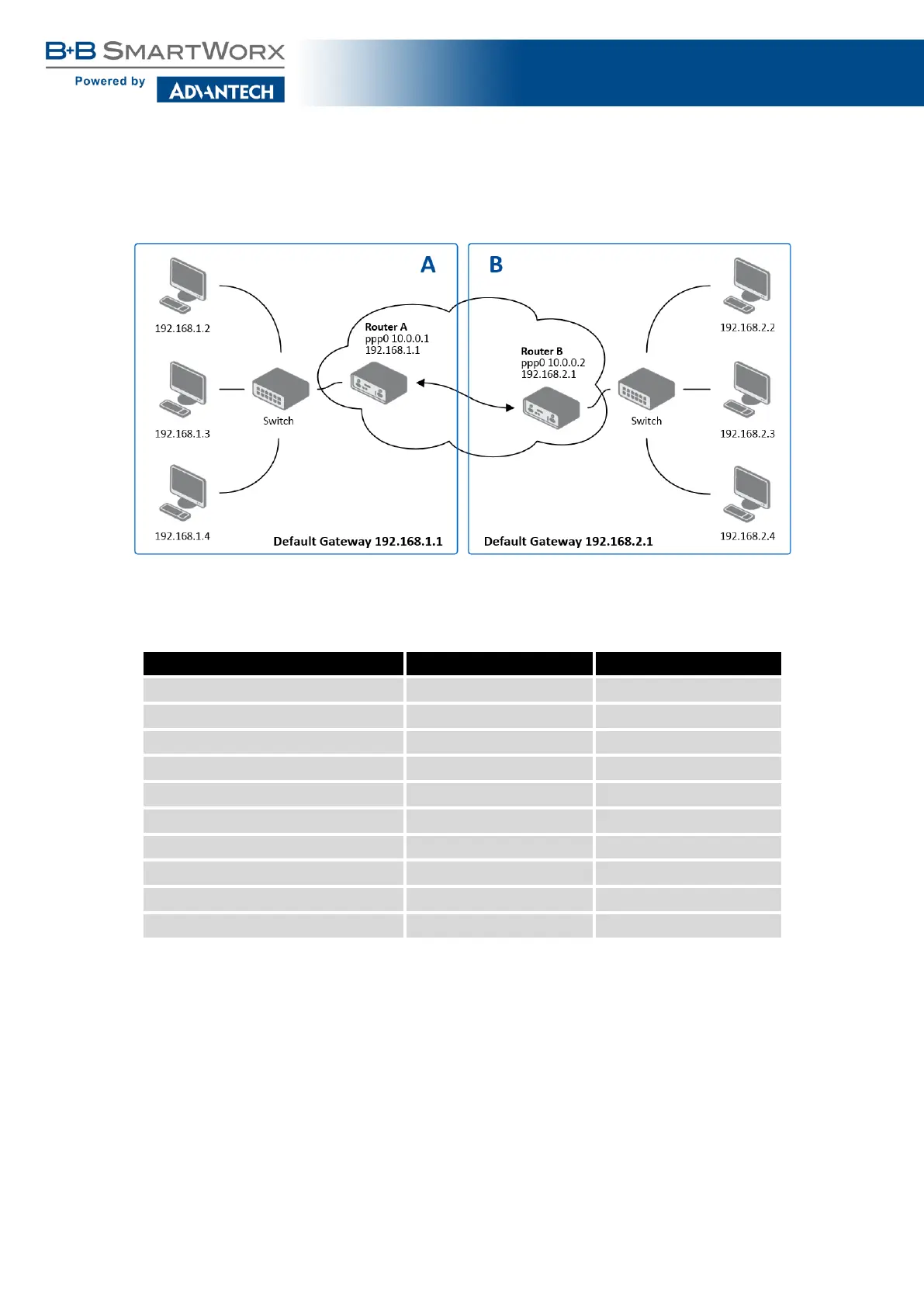

Figure 46: Topology of L2TP Tunnel Configuration Example
Configuration of the L2TP tunnel:
Configuration A B
Mode L2TP Server L2TP Client
Server IP Address — 10.0.0.1
Client Start IP Address 192.168.2.5 —
Client End IP Address 192.168.2.254 —
Local IP Address 192.168.1.1 —
Remote IP Address — —
Remote Subnet 192.168.2.0 192.168.1.0
Remote Subnet Mask 255.255.255.0 255.255.255.0
Username username username
Password password password
Table 47: L2TP Tunnel Configuration Example
