SmartFlex
Activating the Enable I/O extension function allows you monitor the binary I/O inputs on
the router.
Selecting Enable M-BUS extension and entering the Baudrate, Parity and Stop Bits lets you
monitor the meter status connected via MBUS interface. MBUS expansion port is not currently
supported, but it is possible to use an external RS232/MBUS converter.
Selecting Enable reporting to supervisory system and entering the IP Address and Period
lets you send statistical information to the monitoring system, R-SeeNet.
Item Description
IP Address IPv4 or IPv6 address.
Period Period of sending statistical information (in minutes).
Table 55: SNMP Configuration (R-SeeNet)
Each monitored value is uniquely identified using a numerical identifier OID – Object Iden-
tifier. This identifier consists of a progression of number s separated by a point. The shape
of each OID is determined by the identifier value of the parent element and then this value is
complemented by a point and current number. So it is obvious that there is a tree structure.

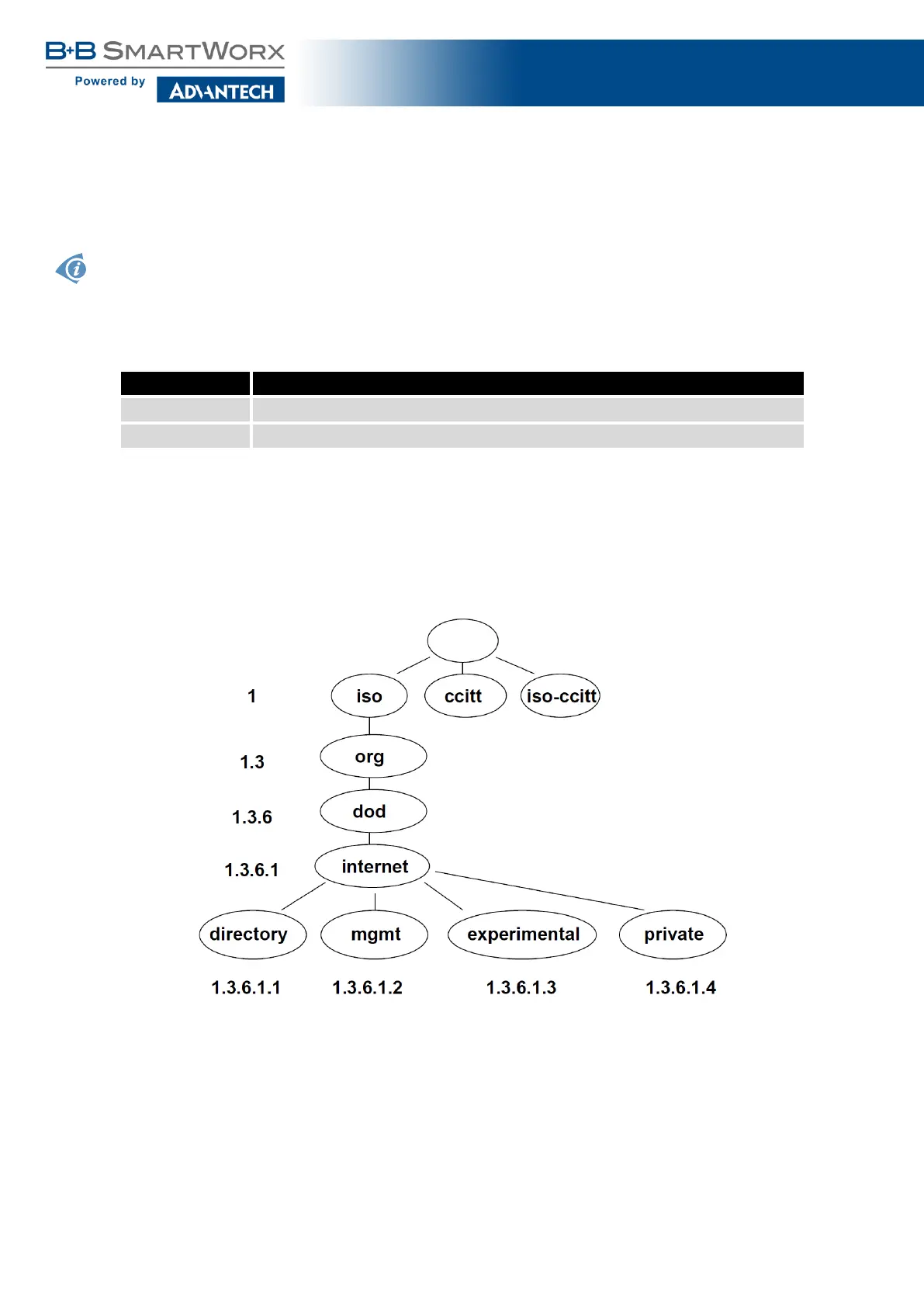

The following figure displays the basic tree structure that is used for creating the OIDs.
Figure 52: OID Basic Structure
The SNMP values that are specific for Conel routers create the tree starting at
OID = .1.3.6.1.4.1.30140. You interpret the OID in the following manner:
iso.org.dod.internet.private.enterprises.conel
98
