4.11.1 Example of the OpenVPN Tunnel Configuration in IPv4 Network

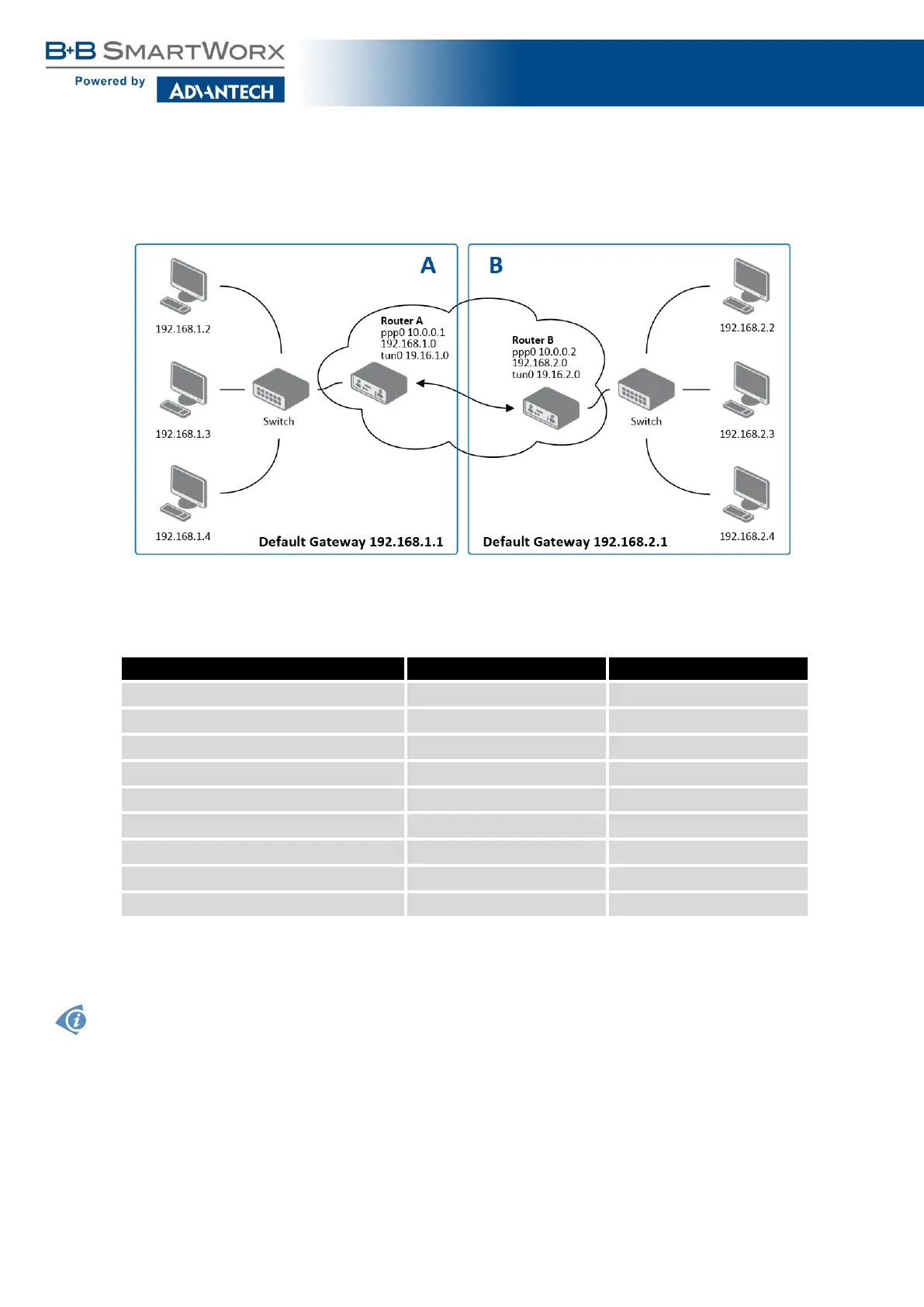

Figure 40: Topology of OpenVPN Configuration Example
OpenVPN tunnel configuration:
Configuration A B
Protocol UDP UDP
UDP Port 1194 1194
Remote IP Address 10.0.0.2 10.0.0.1
Remote Subnet 192.168.2.0 192.168.1.0
Remote Subnet Mask 255.255.255.0 255.255.255.0
Local Interface IP Address 19.16.1.0 19.16.2.0
Remote Interface IP Address 19.16.2.0 19.18.1.0
Compression LZO LZO
Authenticate mode none none
Table 41: OpenVPN Configuration Example
Examples of different options for configuration and authentication of OpenVPN tunnel can be
found in the application note OpenVPN Tunnel [5].
