4.15.1 Example of the PPTP Tunnel Conﬁguration

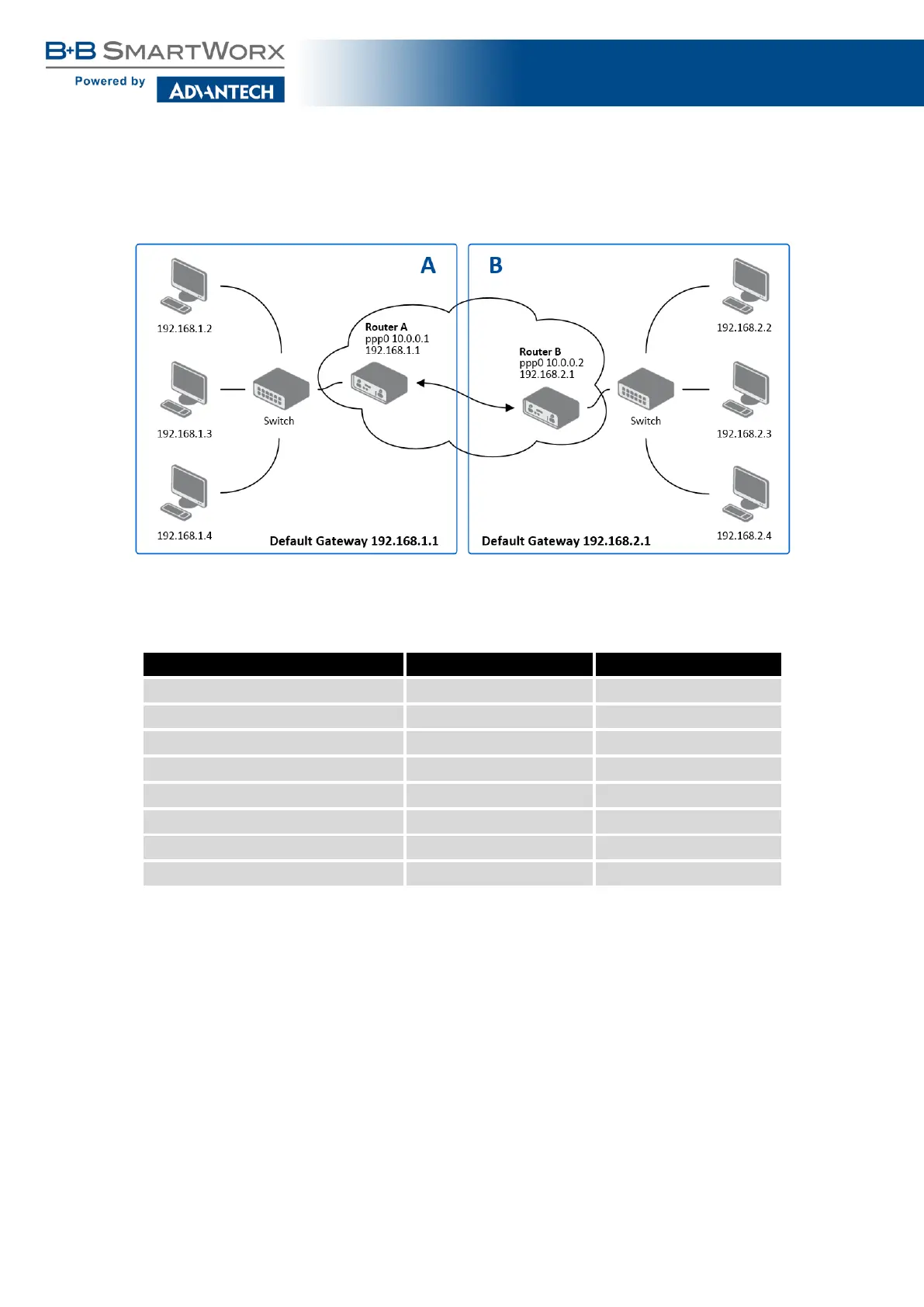

Figure 48: Topology of PPTP Tunnel Conﬁguration Example

Conﬁguration of the PPTP tunnel:

Conﬁguration A B

Mode PPTP Server PPTP Client

Server IP Address — 10.0.0.1

Local IP Address 192.168.1.1 —

Remote IP Address 192.168.2.1 —

Remote Subnet 192.168.2.0 192.168.1.0

Remote Subnet Mask 255.255.255.0 255.255.255.0

Username username username

Password password password

Table 49: PPTP Tunnel Conﬁguration Example
