Backup Routes configuration After setting up the backup routes you will need to set their
priorities. In Figure 93 the eth1 wired connection has the highest priority. If that connection
fails, the second choice will be the WiFi wlan0 network inter face. The third choice will be the
mobile connection – usb0 network interface.
The backup routes system must be activated by checking the Enable backup routes switch-
ing item for each of the routes. Click the Apply button to confirm the changes. For detailed
configuration see Chapter 4.7.

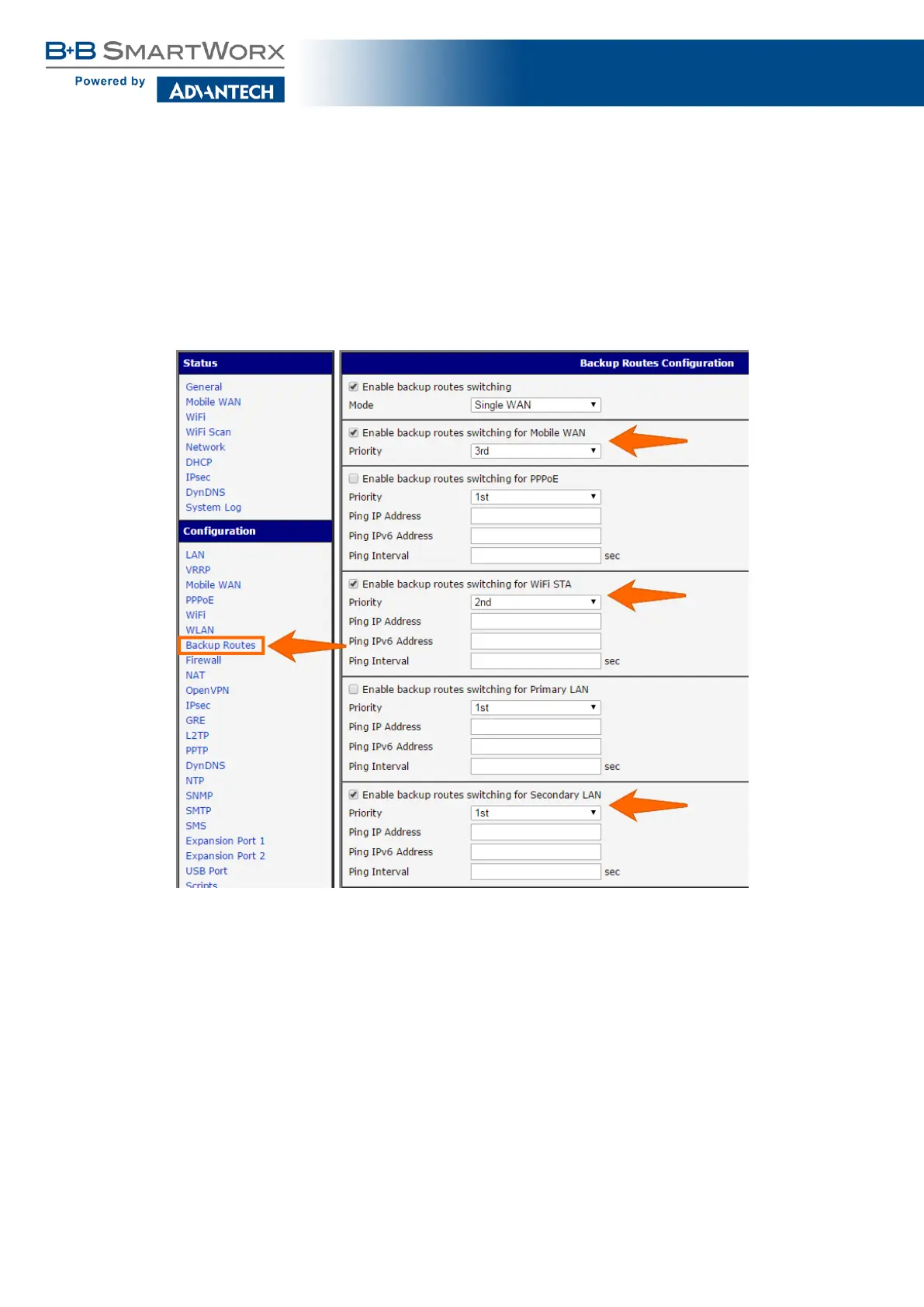

Figure 93: Backup access to the Internet – Backup Routes configuration
You can verify the configured network interfaces in the Status section in the Network item.
You will see the active network interfaces: eth0 (connection to LAN), eth1 (wired connection
to the Internet), wlan0 (WiFi connection to the Internet) and usb0 (mobile connection to the
Internet). IP addresses and other data are included.
At the bottom of the page you will see the Route Table and corresponding changes if a
wired connection fails or a cable is disconnected (the default route changes to wlan0). Simi-
larly, if a WiFi connection is not available, the mobile connection will be used.
Backup routes work even if they are not activated in the Backup Routes item, but the router
will use the factory defaults.
