Example 2: IPv4 NAT Configuration with More Equipment Connected
In this example, using the switch you can connect more devices behind the router. Every
device connected behind the router has its own IP address. Enter the address in the Server
IPv Address field in the NAT dialog. The devices are communicating on port 80, but you
can set port forwarding using the Public Port and Private Port fields in the NAT dialog. You
have now configured the router to access the 192.168.1.2:80 soc ket behind the router when
accessing the IP address 10.0.0.1:81 from the Internet. If you send a ping request to the
public IP address of the router (10.0.0.1), the router responds as usual (not forwarding). And
since the Send all remaining incoming packets to default server is inactive, the router denies
connection attempts.

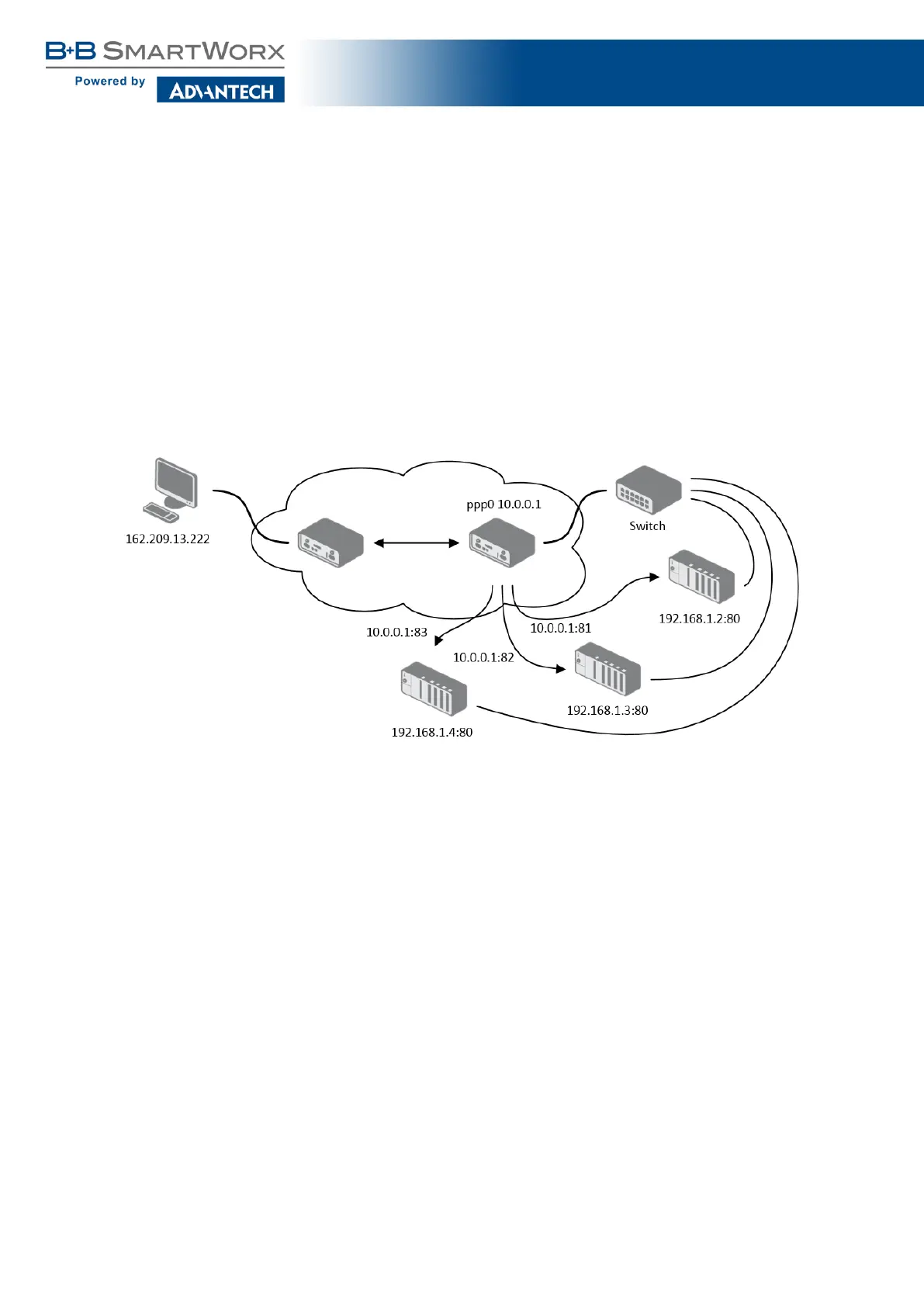

Figure 37: Topology for NAT Configuration Example 2
