4.1.3 LAN Conﬁguration Examples

Example 1: IPv4 Dynamic DHCP Server, Default Gateway and DNS Server

• The range of dynamic allocated IPv4 addresses is from 192.168.1.2 to 192.168.1.4.

• The address is allocated for 600 second (10 minutes).

• Default gateway IP address is 192.168.1.20

• DNS server IP address is 192.168.1.20

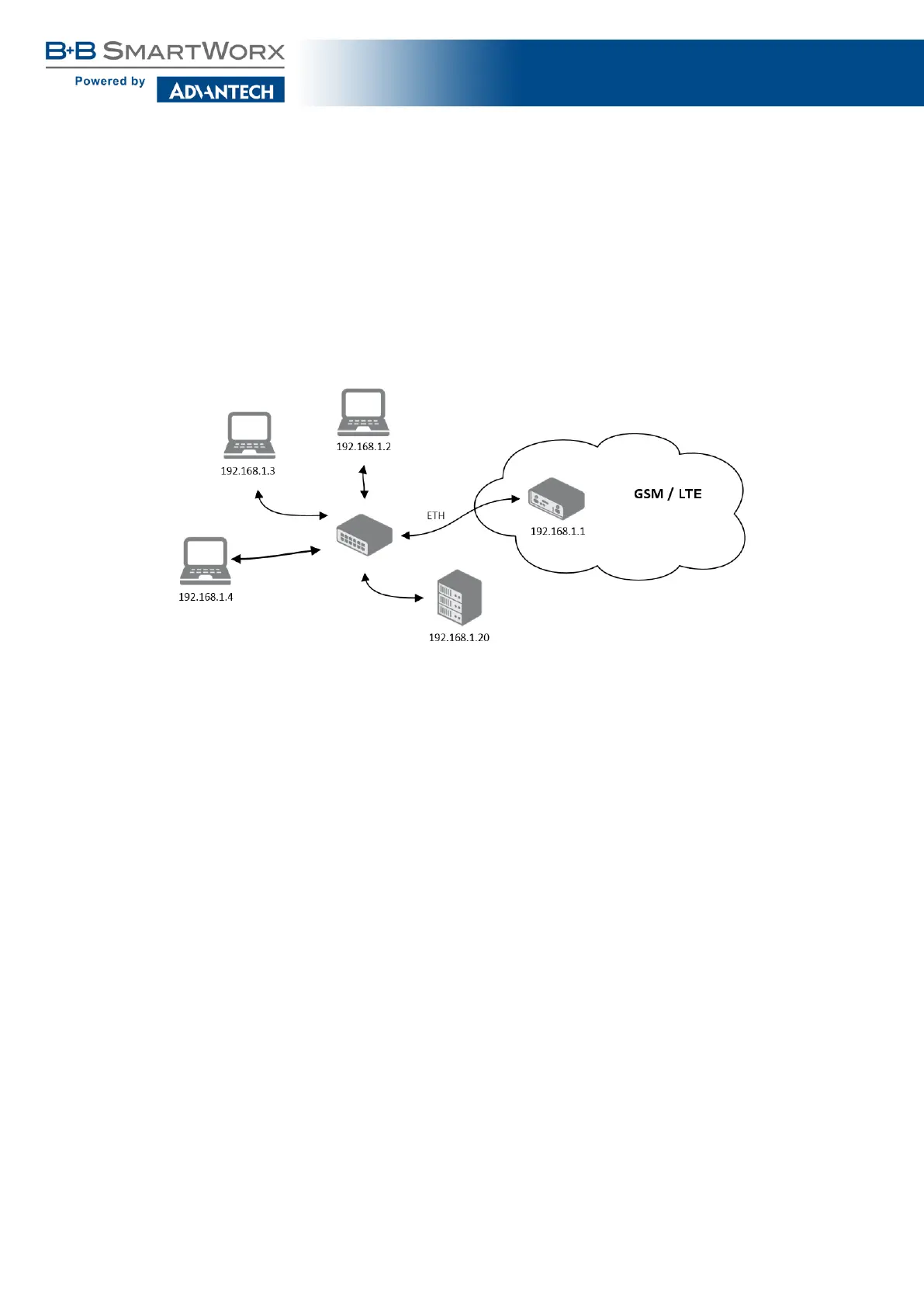

Figure 13: Network Topology for Example 1
