Page 156 of 479

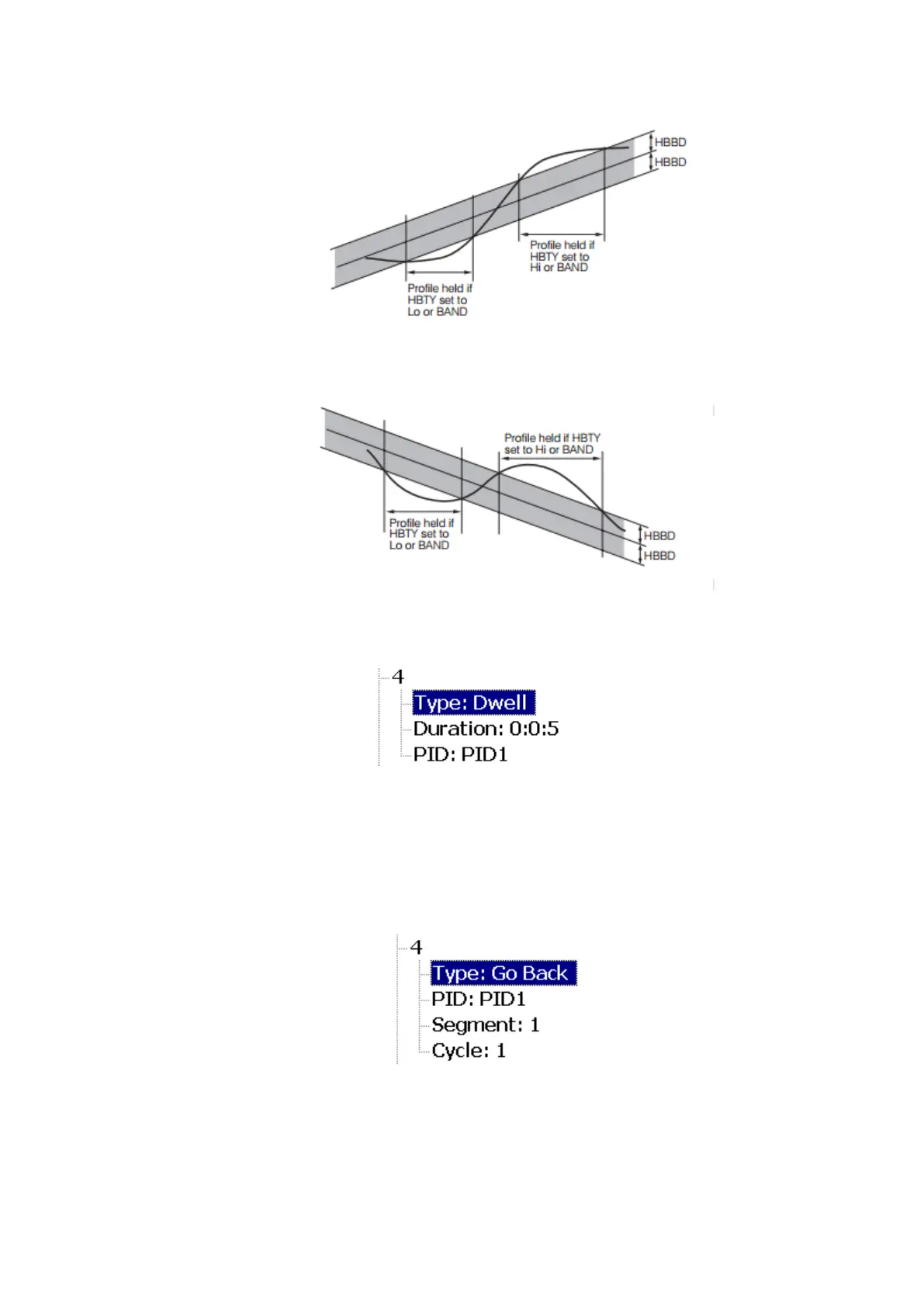

5-14 Holdback on Positive Ramp
5-15 Holdback on Negative Ramp
5.2.5.3.1.2 Dwell Segment Parameters
Duration
Duration of the segment for the Dwell can be set in Hour: Minute: Second.
PID
The PID Values to be used for this Dwell is PID1 or PID2.
5.2.5.3.1.3 Go Back Segment Parameters
This segment will jump to the specified in the segment mentioned on the Segment for the no of
cycles mentioned in Cycle.
