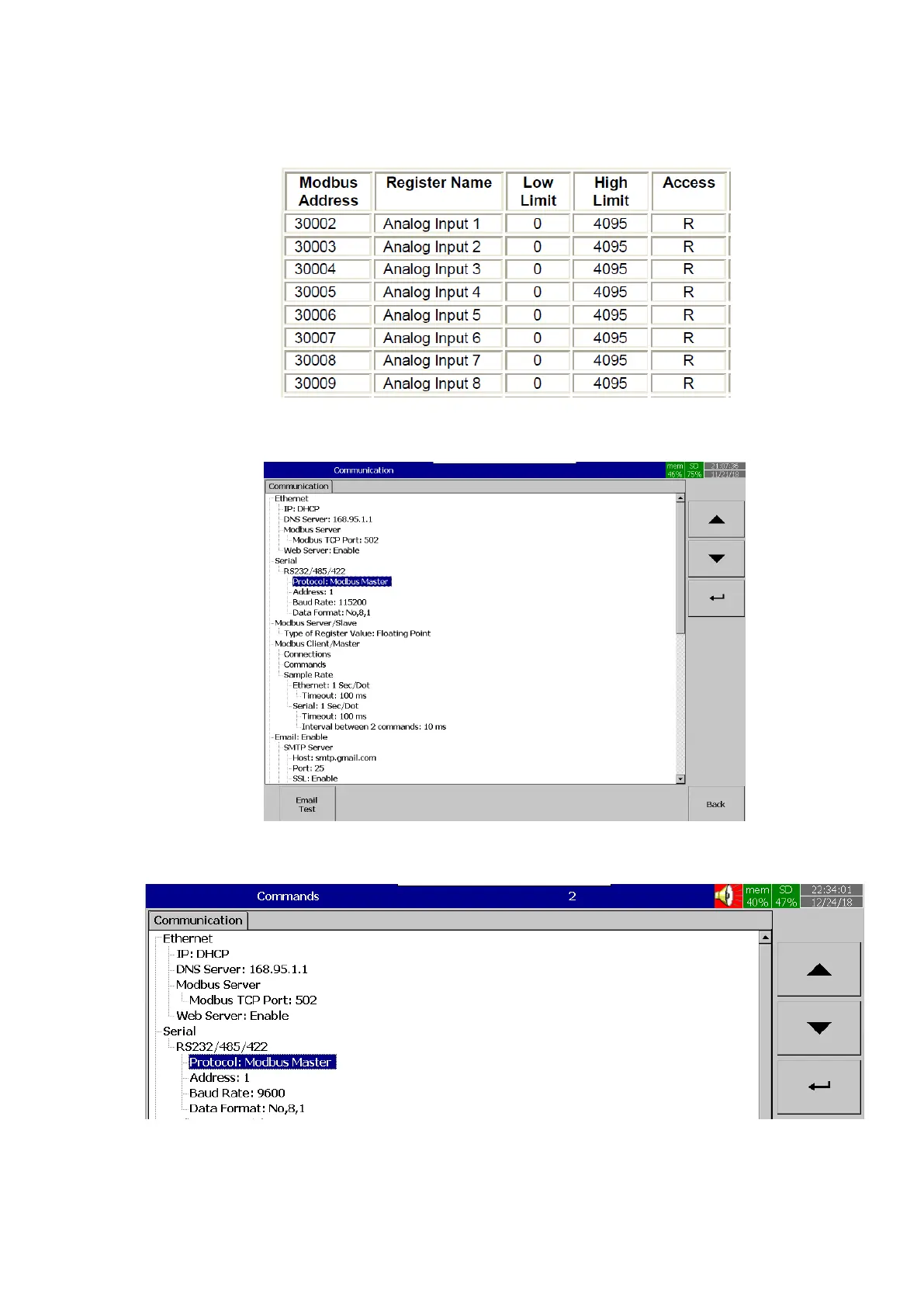

The below table shows the Modbus address mapping of IO Modules which needs to be mapped
to external channels of recorder.
The recorder communication protocol must be set as Modbus Master to communicate with
external channels.
Configure the communication parameters as per the slave (IO Module) configuration.
Add connections and commands as per IO module configuration.
