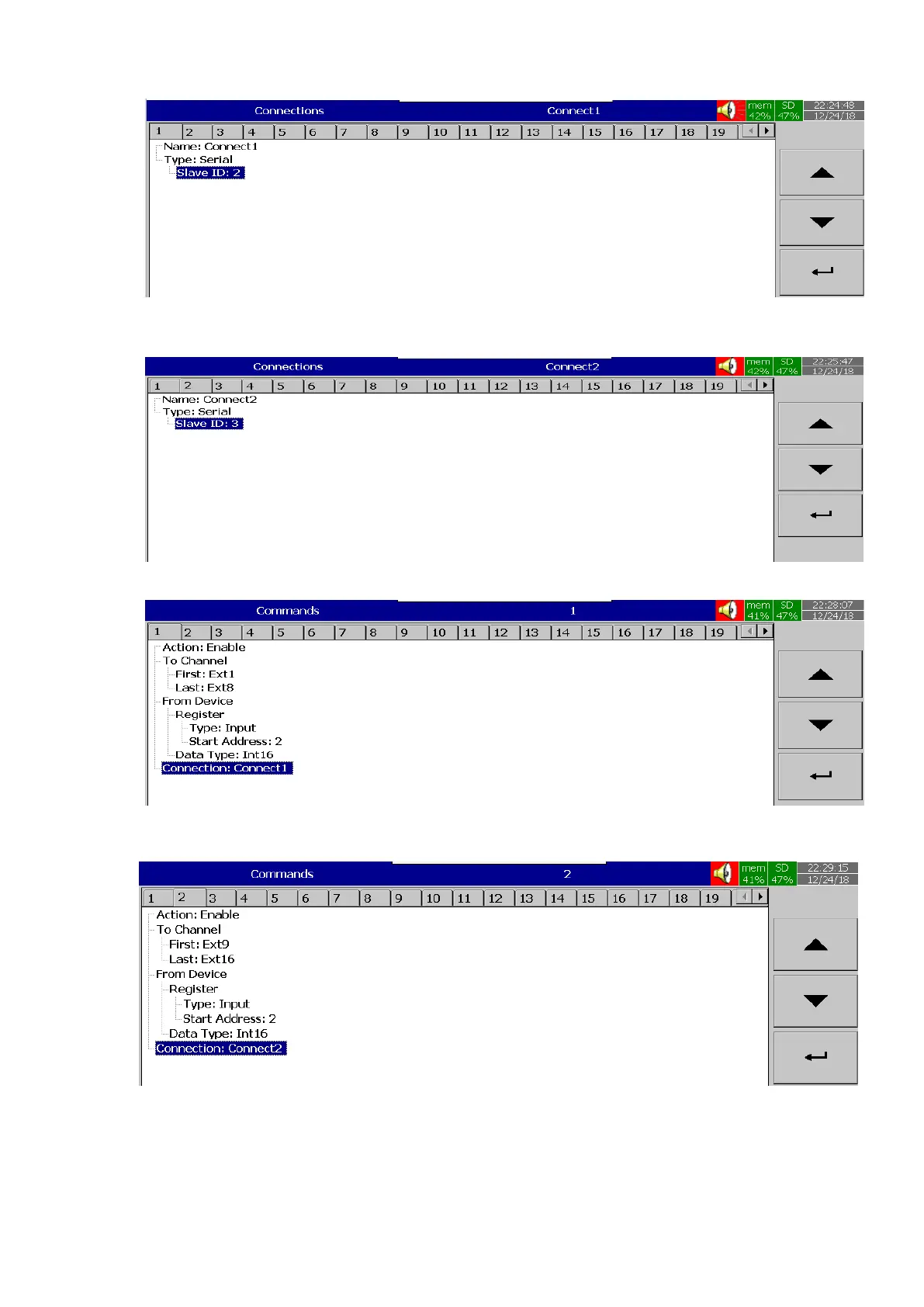

5-19 Connection for Slave ID 2
5-20 Connection for Slave ID 3
5-21 Mapping of IO Module and External Channel for Slave ID2
5-22 Mapping of IO Module and External Channel for Slave ID 3
After the mapping of IO module with external channel is successful then all mapped external
channel needs to be configured for displaying the data with proper scaling.
