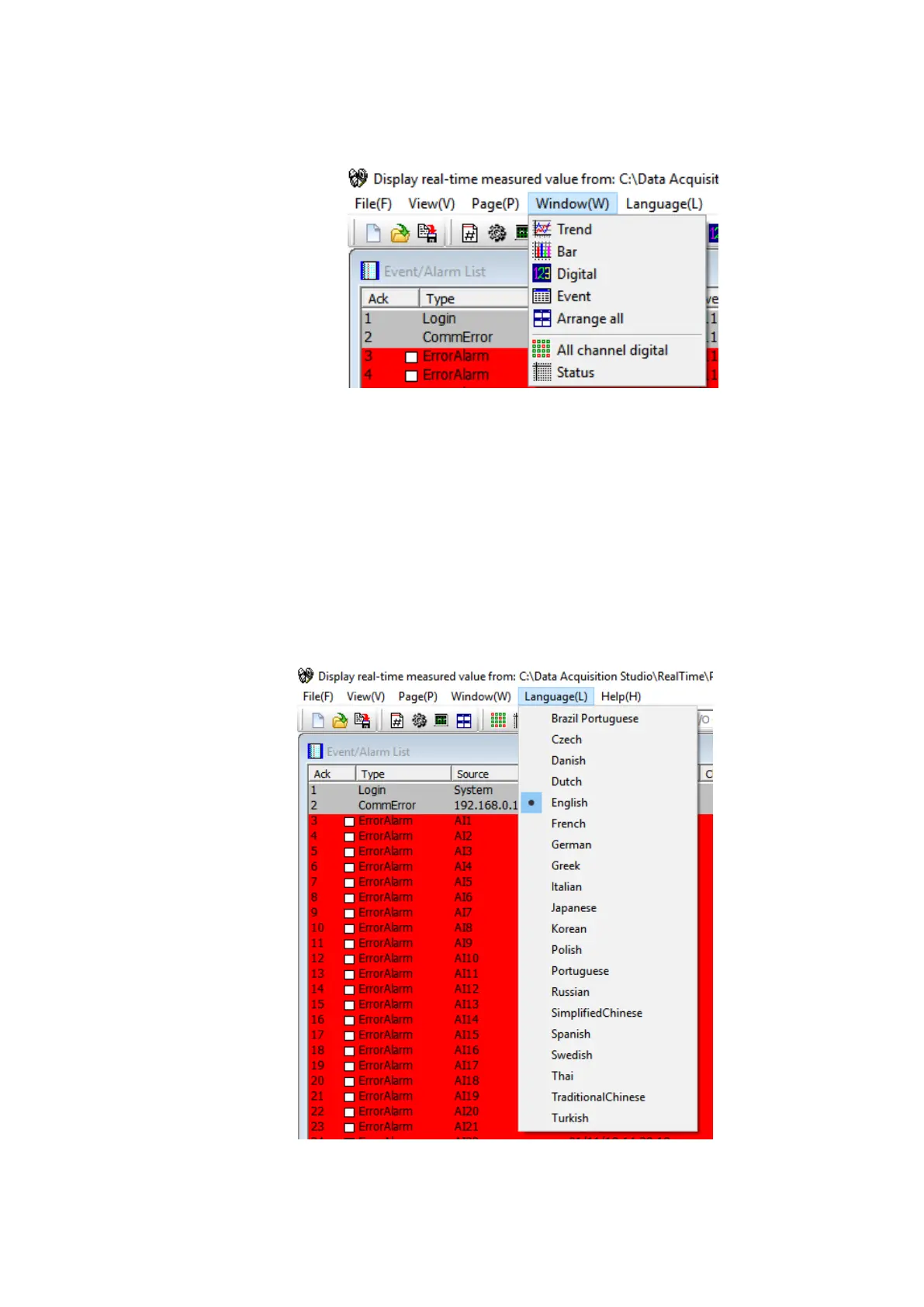

6.2.3.2.4 Window (W)
The Window menu consists of the different display modes to select. The user can select the
display mode to be viewed from the shown list.
1. Trend: Shows the display page in trend mode.
2. Bar: Shows the display page in bar graph mode.
3. Digital: Shows the display page in digital display mode.
4. Event: Shows the Event/ Alarm List display.
5. Arrange All: Shows the display page with Trend, Bar Graph, Digital Display and Event/Alarm
List.
6. All Channel Digital: Shows all the configured channels in digital mode as overview.
7. Status: Shows the status of counters and Totalizers.
6.2.3.2.5 Language (L)
The display language of the software can be changed by selecting anyone of the available
language from the sub menu.
6.2.3.2.6 Help (H)
The help menu provide the information about the software and the necessary information.
