Band editor
A maximum of 32 bands are available. Band editor for “Arc” is the same as explained for the
“Line” object earlier.
6.3.9.1.8 Table
It is used to draw a table during design time by specifying number of rows & columns. All
rows/columns will have an equal width and height. It is possible to place labels on rows (Linked with Tags)
for displaying process values to appear like a tabular column. User can edit properties via the GUI dialog or
Property grid as per convenience. After dragging/dropping the object to the screen, double click on the
object to open GUI dialog.
While working with a Table, in page properties, select Snap to Grid = False so that it will be easy to
place labels/textboxes in required positions easily.

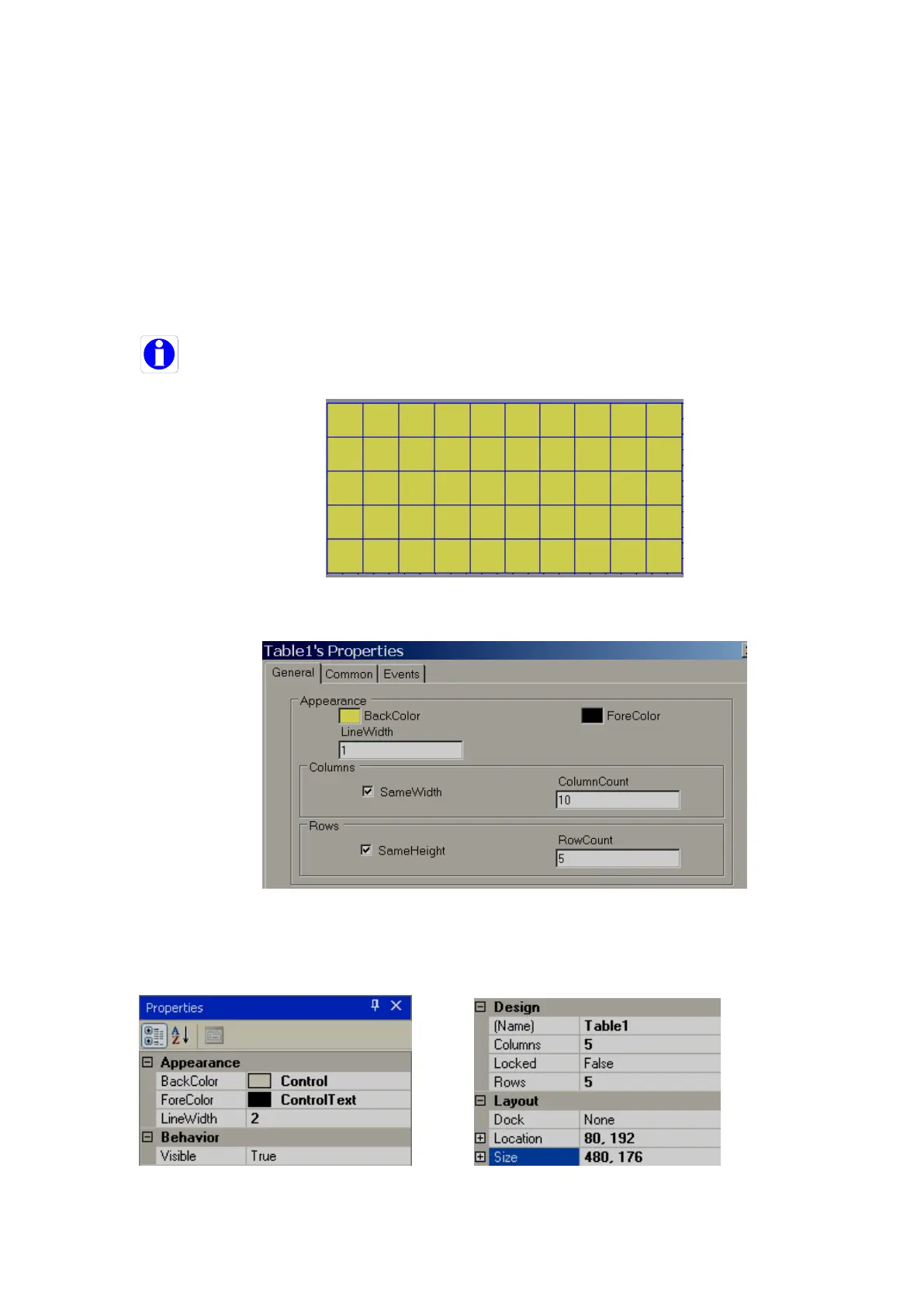

Drag and Drop Table from Basic objects to the screen, then double click on Table. The following
screen will open.
Note: Deselect “Same Width” to adjust column width in the Table
Note: Deselect “Same Height” to adjust Row height in the Table
