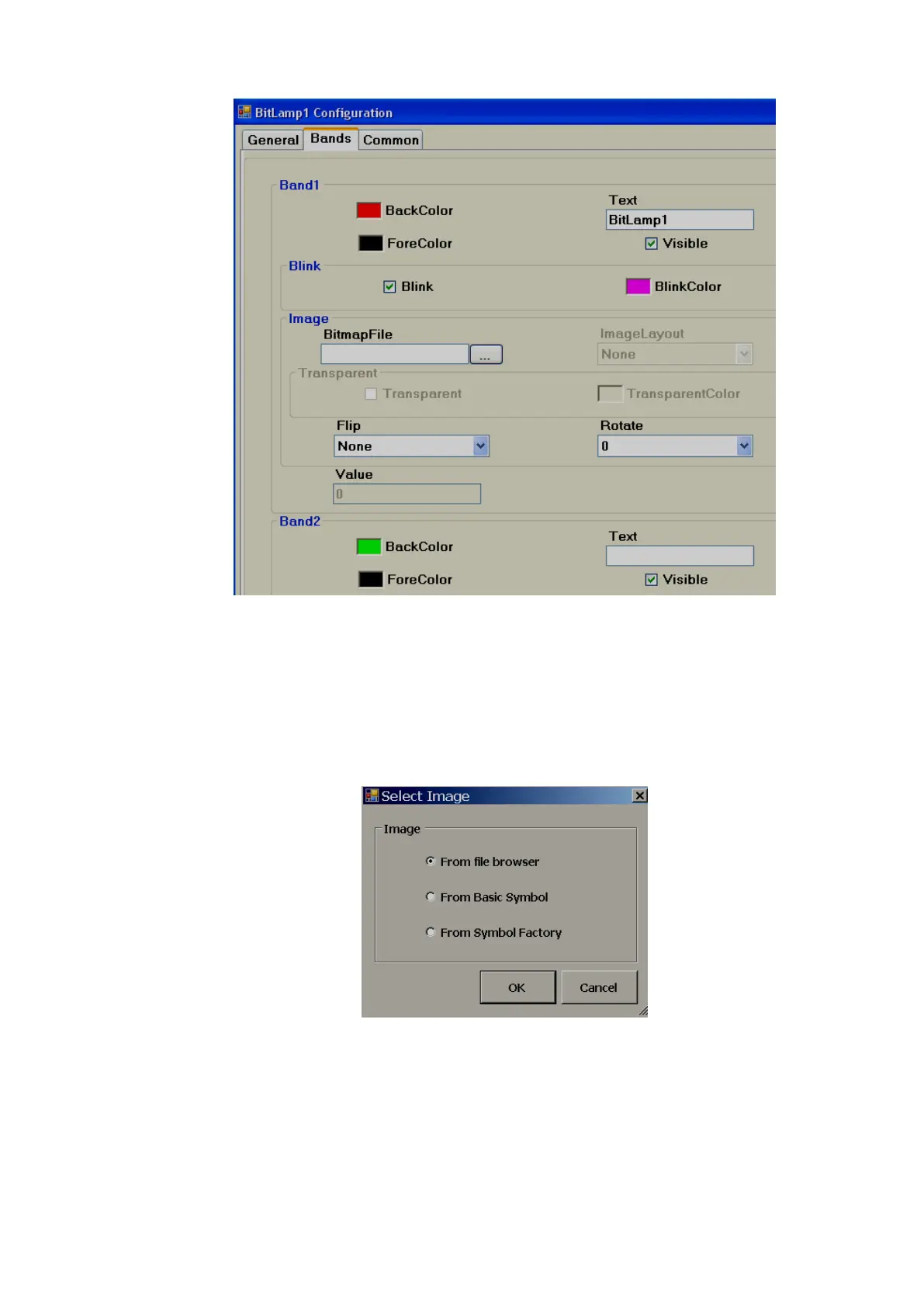

Bitmap file: Select the image to be displayed when tag value reaches this band in run time.
For example: When Tag1=0, show Red coloured motor symbol. When Tag1=1, show Green
coloured motor symbol
Note: Two different symbols are required for the above
Bmp, wmf, jpg, gif and png types are supported. If the selected file is other than wmf, then it is
also possible to select Image layout and transparent options.
From File browser: Allows user to select images in formats of bmp, wmf, jpg, gif and png
From Basic Symbol: Allows user to select wmf format images from basic symbols
From symbol factory: Allows for selecting symbols from symbol factory in .wmf format
Image layout: None, center and Stretch options are available. Stretch means the selected
bitmap will be fixed to the size of the bit lamp
Note: If a bitmap has poor resolution, when stretch is used, it may show a low quality image in
screen.
