Bands
It is to define various bands for the process value to appear and display animation in Run time.
Band count: Use up/down buttons to increase/decrease number of bands. Maximum 32 bands
are supported. In each band, it is possible to configure back color, fore color and
blink properties.
Back color: Define back color.
Fore Color: Define fore color.
Blink: Select “True” if blink is required and “False” if blink is not required.
Blink color: If “True” is selected for blink, then this property is visible and you can select
required blink color.
Value: It is the band range. For the first band, it is always the Range Low value defined for the
bar box. Band 1 high range is the value defined at Band2. Band 2 high range value is
the value defined at Band3 and so on.

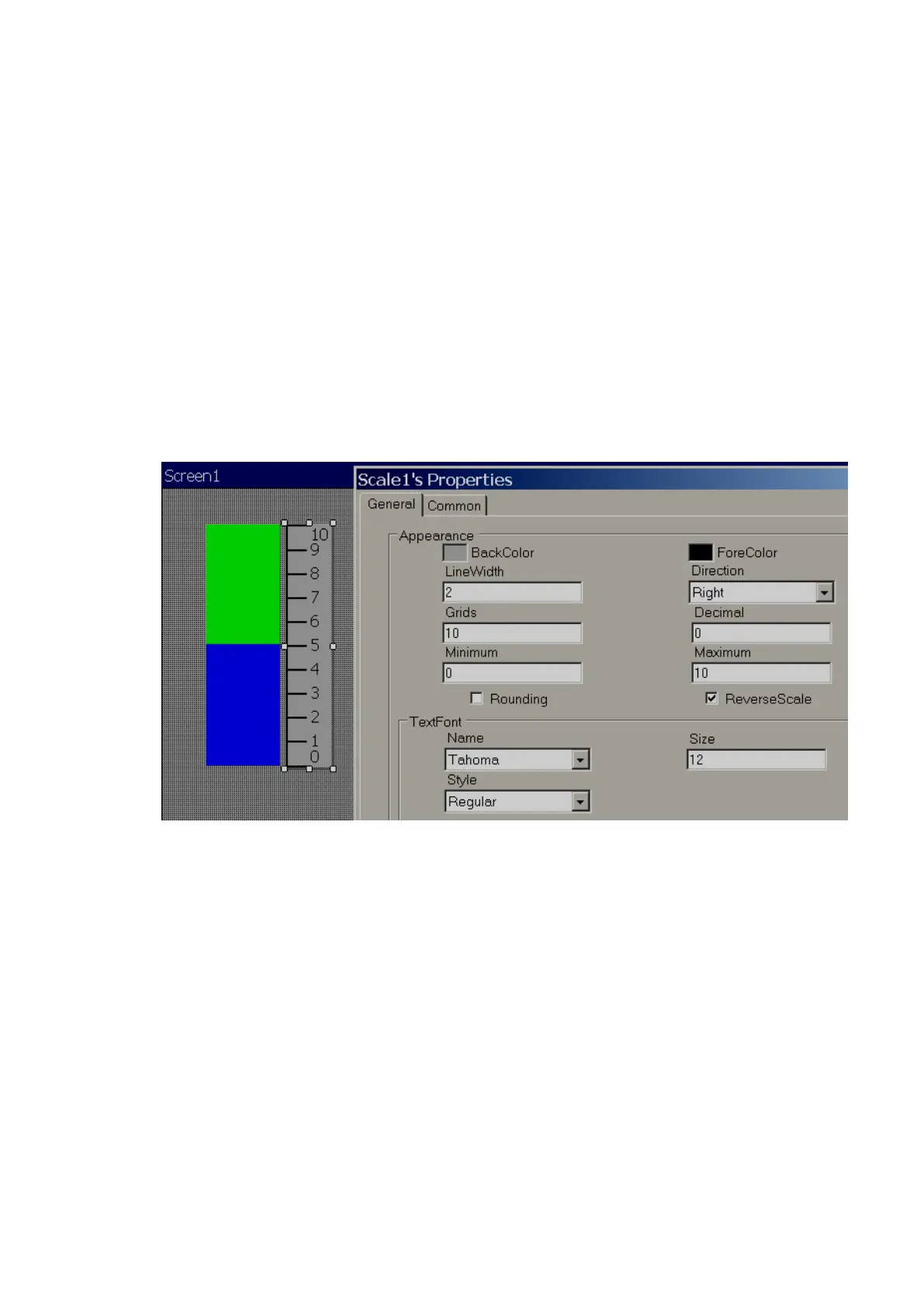

6.3.9.2.7 Scale
Scale is a Graphical User Interface widget used along with bar box if required.
Properties
Back color: Define back color
Fore Color: Define fore color
Line width: Define width of line
Grids: Define number of grids
Direction: Define direction of Scale. Up/Down/Left/Right
6.3.9.2.8 Picture box
Picture box permits the user to link different picture files into a Picture box component during
design time and then later view them during Run time based on the value of the Tag. Supported formats
include Bitmap file (*.bmp), Windows Metafile (*.wmf), JPEG File (*.jpg), Graphics Interchange format (*.gif),
Portable Network Graphic (*.png).
