700M HFID 6-2-15
16
Rack Mounting
The front panel is designed for mounting into a standard 19-inch rack enclosure. Holes are
located on the left and right side to allow the panel to be secured in the rack by screws. Optional
rack slides allow the analyzer to be pulled out of the rack enclosure for access.

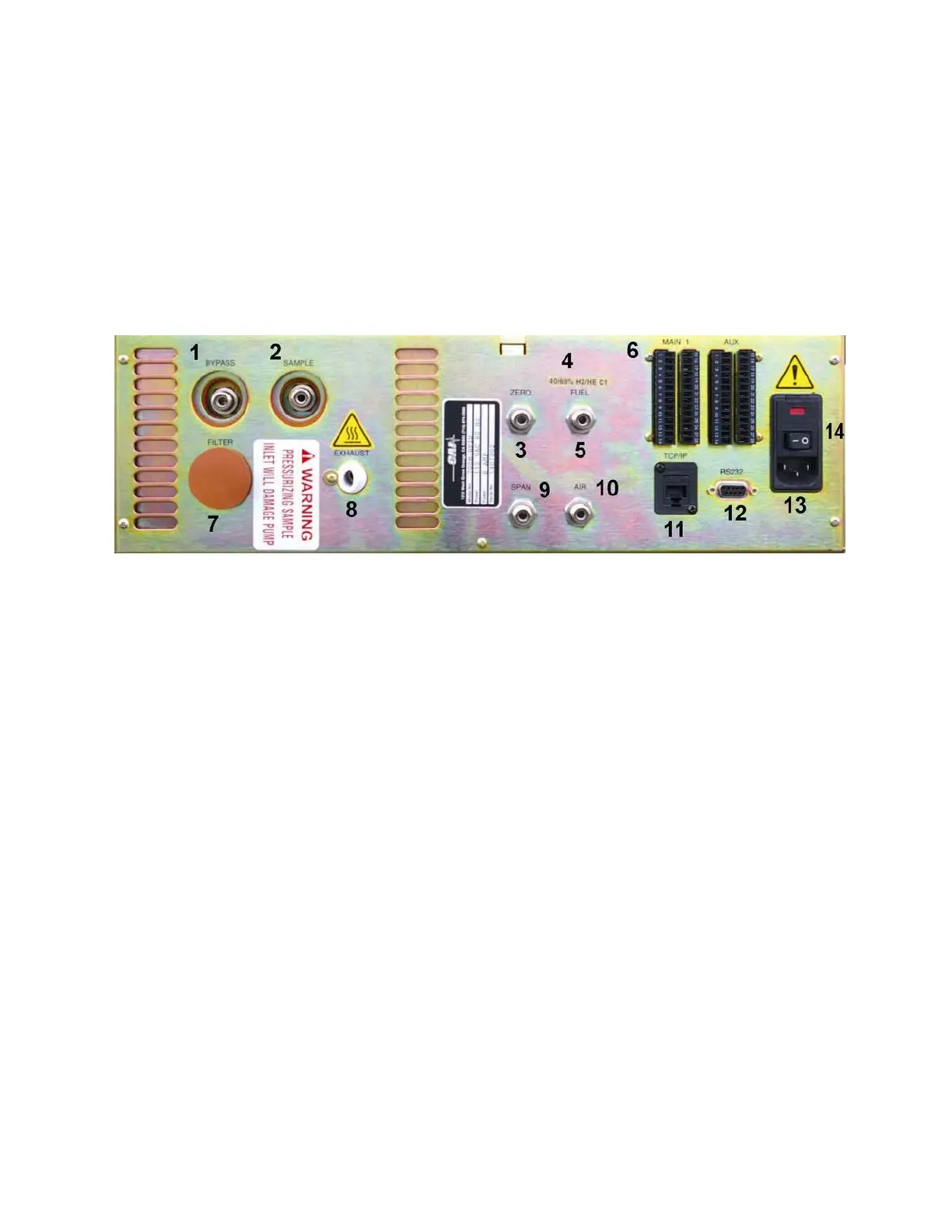

Rear Panel
The rear panel includes the following:
1. Sample Gas Bypass outlet (vent) for exhaust of sample (¼-inch tube).
2. Sample Gas inlet for delivering gas to the analyzer (¼-inch tube).
3. Zero Gas inlet for delivering zero calibration gas to the analyzer (optional).
4. Label identifies the proper fuel to be used with this analyzer.
5. Fuel Gas inlet delivers fuel to the burner for combustion.
6. Connectors for analog and digital outputs and inputs.
7. Sample inlet filter access.
8. Exhaust vent from FID burner.
9. Span Gas inlet for delivering calibration gas to the analyzer.
10. Air inlet for delivering hydrocarbon-free air to the analyzer for burner combustion.
11. TCP/IP RJ-47connection to network cable.
12. RS232 Serial connection to serial cable.
13. Power Entry module for power connection, power switch, fuse compartment.
14. Rear-panel ON/OFF switch.
