9-ACCESSORIES
Thetabforoperationalsettingsoftheauxiliaryhigh-owhydrauliccircuitfeaturestwopages.Thesetwopagesal-
lowstosetandstorespecicowrate/pressurecombinationsaccordingtothetypeandtothespecicationsofthe
attachmentused.

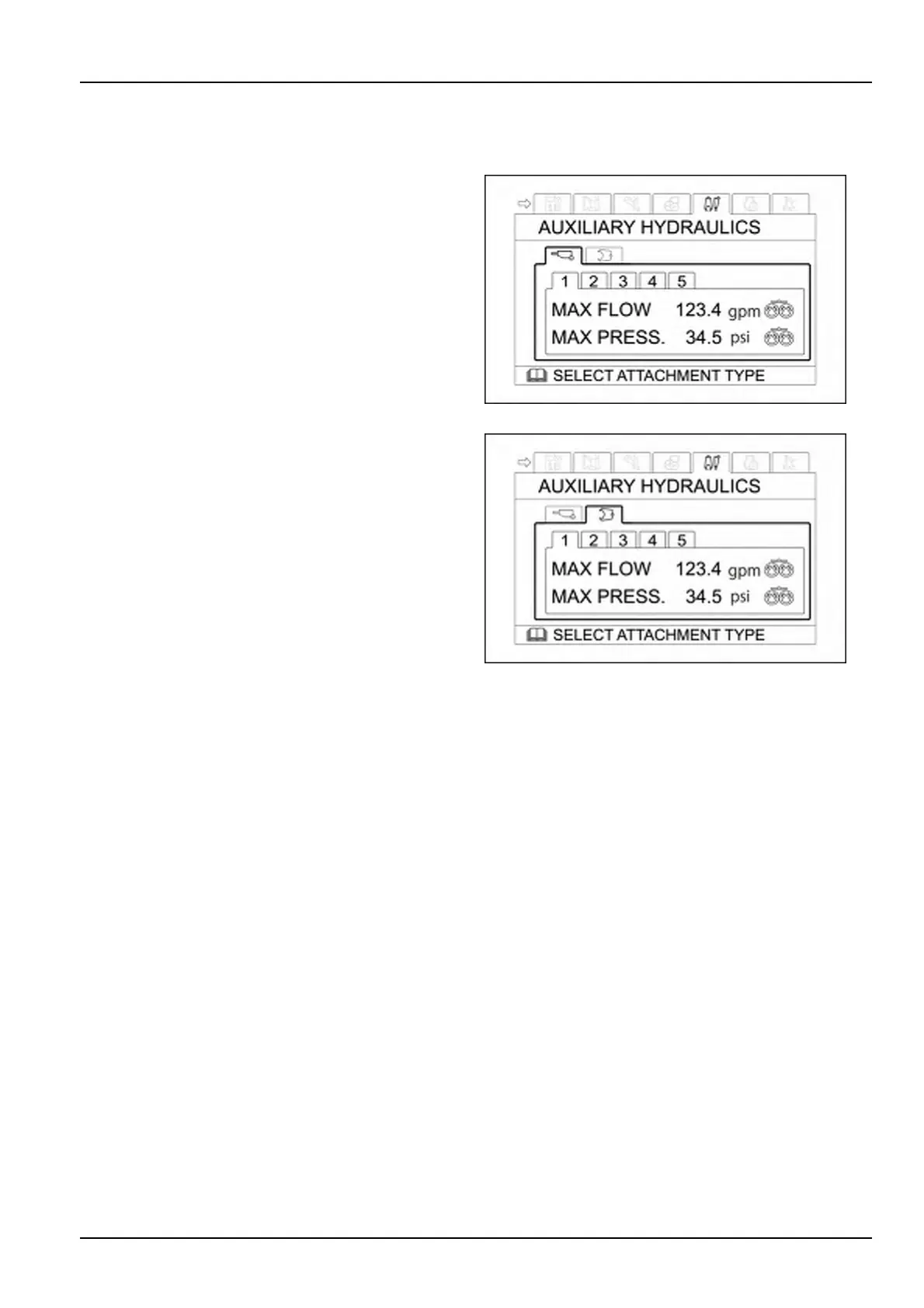

Beforeoperatingahydraulicbreakeroranyothersingle-
actinghydraulicattachment,selecttherstpage(breaker
icon)tosetandstoretheproperowrate/pressurecom-
bination.
NOTE:Fiveowrate/pressurecombinationscanbeset
andstoredforusageofsingle-actinghydraulicattach-
ments.
NOTE:IfthemachineisequippedwiththeDouble-acting
auxiliaryhigh-owhydrauliccircuit,thepageforsetting
theowrate/pressurecombinationsforbreakersisnot
active.
SMIL15CEXZZ48AA5
Beforeoperatingahydrauliccrusheroranyotherdou-
ble-actinghydraulicattachment,selectthesecondpage
(crushericon)tosetandstoretheproperowrate/pres-
surecombination.
NOTE:Fiveowrate/pressurecombinationscanbeset
andstoredforusageofdouble-actinghydraulicattach-
ments.
NOTE:IfthemachineisequippedwiththeSingle-acting
auxiliaryhigh-owhydrauliccircuit,thepageforsetting
theowrate/pressurecombinationsforcrushersisnot
active.
SMIL15CEXZZ47AA6
Combination1forbreakerissetfromfactory.
Combination1forcrusherissetfromfactory.
Refertothenextpagesforspecicinformationaboutset-
tingcapabilitiesforeachkindofauxiliaryhigh-owhy-
drauliccircuit.
NOTE:allthevaluesofthemaximumowratearerelated
totheSPworkmode.Iftheauxiliaryhigh-owhydraulic
circuitisusedwithadifferentworkmodetheactualow
willbelower.
