9
-
ACCESSORIES

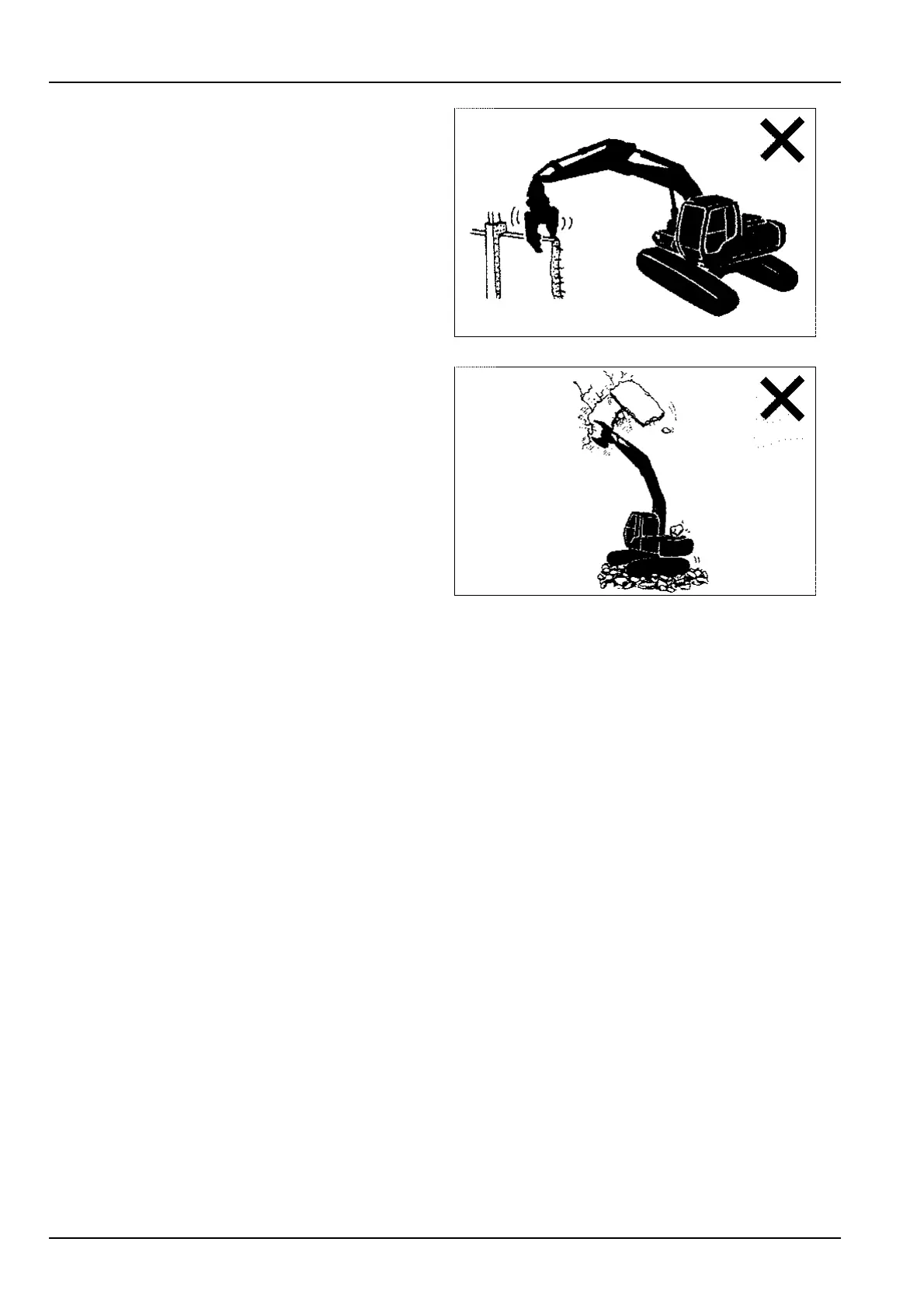

Do
not
perform
crushing
on
either
side
of
the
machine,
always
do
so
at
front
or
rear
,
parallel
with
tracks.
Other-
wise,
the
machine
may
overturn.
NH0213A
35
When
operating
the
crusher
up
high
with
the
boom
fully
raised,
be
careful
of
falling
objects.
NH0214
36
9-22
299
301
