Liberty
™
Automated Microwave Peptide Synthesizer
600178 • Revision 5 • October 2009
87

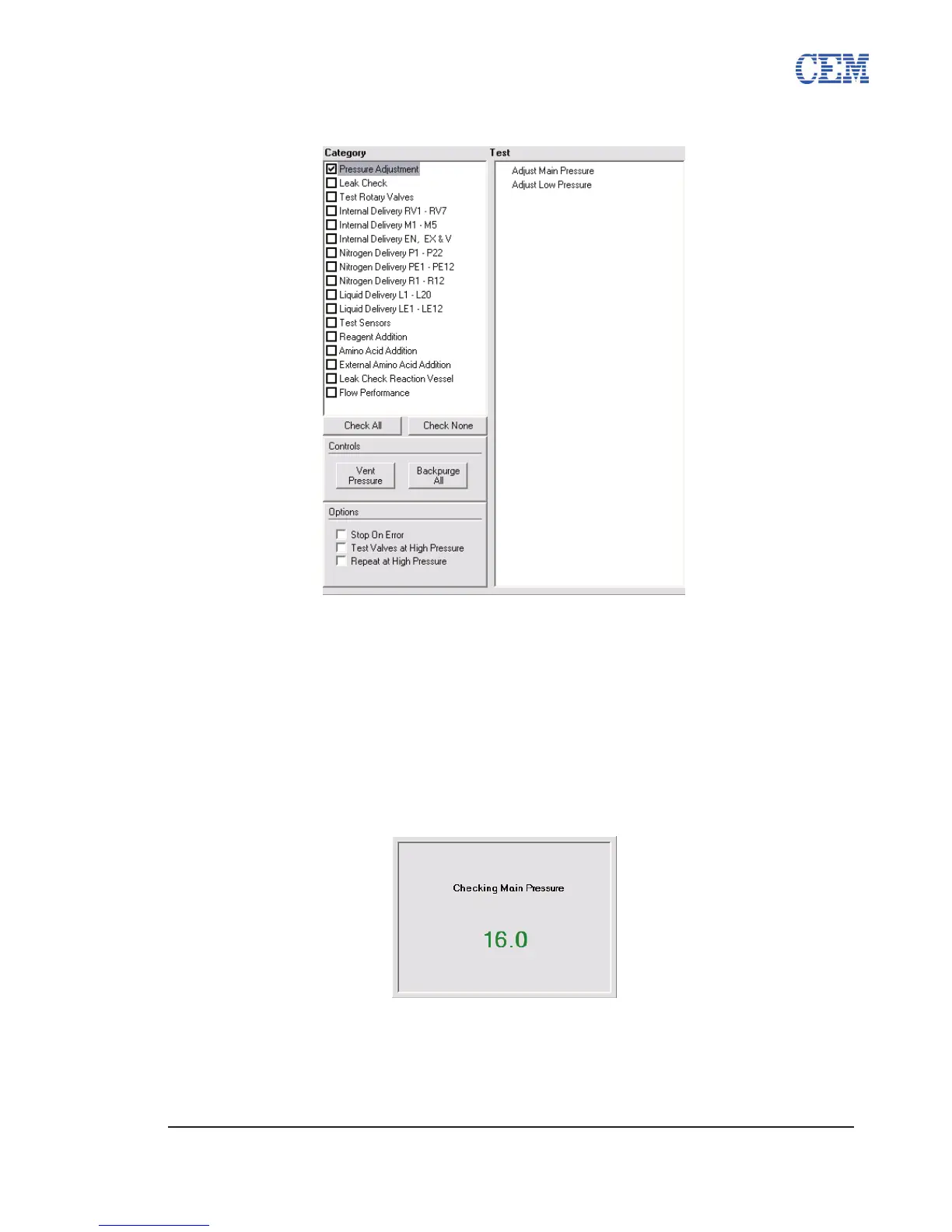

Pressure Adjustment
The Pressure Adjustment category contains two tests: Adjust Main Pressure and Adjust Low
Pressure. These two tests are used to ensure the high and low pressure regulators are adjusted
to within the standard operating parameters.
Main Pressure Adjustment
Select the Pressure Adjustment category, and then double-click on the Adjust 1.
Main Pressure test.
The current pressure reading (in psi) will be displayed in the status box. The 2.
reading will be displayed in green if the value is within the standard operating
parameters (15-17 psi), and in red if it is outside the standard parameters.
If the pressure reading is outside the range, the status box will display 3.
instructions for adjusting the pressure regulator. The pressure reading will be
displayed in real time. Adjust the regulator until the reading is between 15 and
17 psi.
