Battery Cell Insulation Tester 11210 User’s Manual
5-36

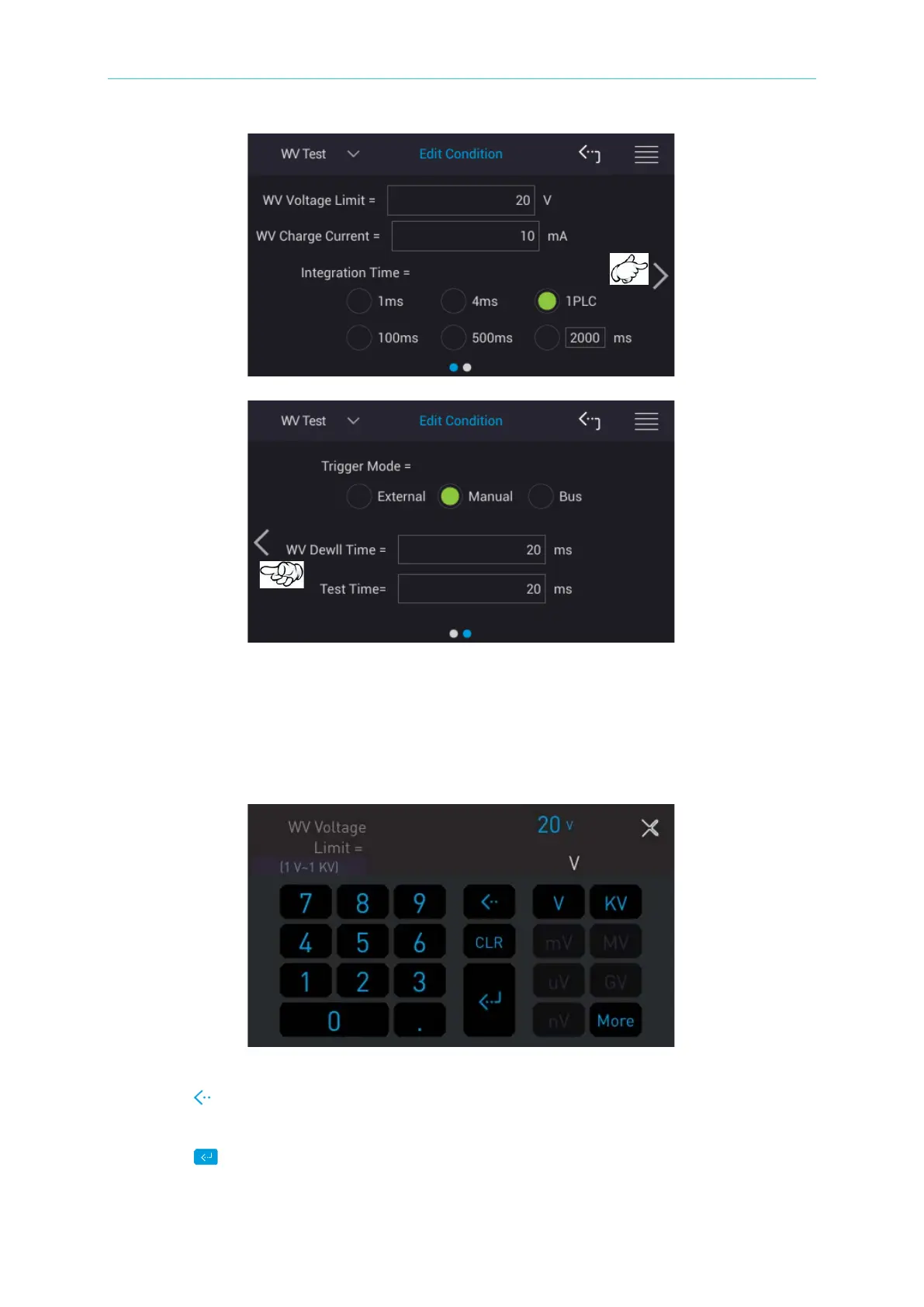

There are 6 measurement parameters for test setting.
(1) WV Voltage Limit:
It sets the maximum WV test voltage. The range is 1V~1000V and the factory
default is 20V.
Touch the WV Voltage Limit input voltage column and a touch keypad will appear.
[0∼9,.]: Set the input required value with decimal point.
[ ]: Backward key
[CLR]: Clear the inputted value.
[V, KV]: It sets voltage unit.
[ ]: Confirm the input setting value.
