Program Sequence
4-13

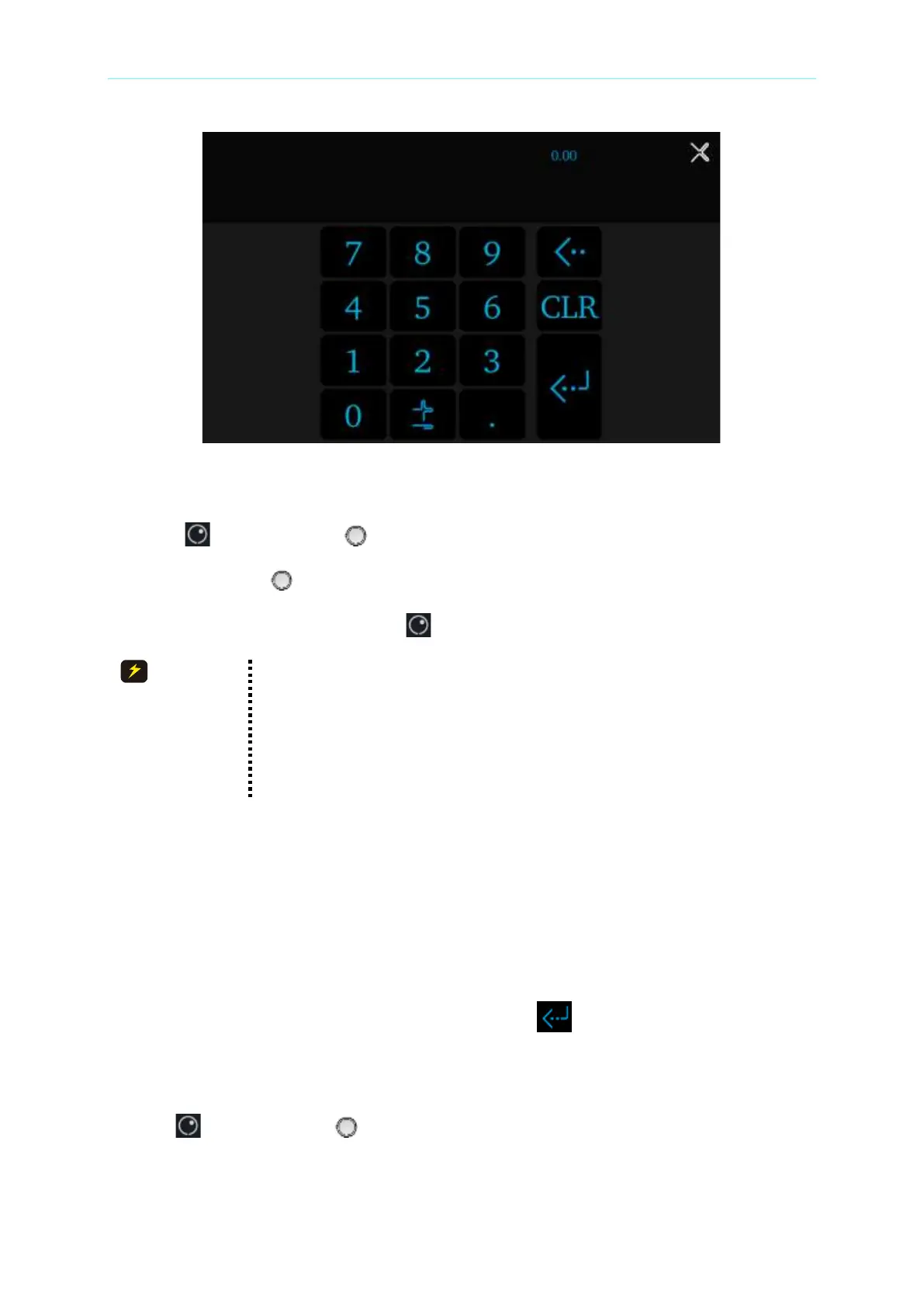

Figure 4-16
Method 2 (via rotary knob):
1. Tap to use “Rotary” (
) knob. Tap the value box after Start V and the cursor at
lower right will flicker.
2. When “Rotary” (
) knob is used for setting, pressing it can move the cursor to a
different digit. Turning the rotary knob can increase or decrease the value of that digit.
3. When the value is confirmed, tap “ ” to complete the Start V setting.
When the initial voltage on the output of the supply does not equal the
setting of Start V there are two circumstances that may occur in V Step
Mode: (1) The output voltage will rise to the setting of start voltage and
the V Slew Rate is 1V/ms by default (which can be changed if desired),
or (2) output voltage will fall to the setting of Start V and the falling time
is calculated by the default 1V/ms (which can be changed if desired)
while the actual V Slew Rate is varied by load.
4.2.1.2 Setting End V
There are two methods to set End V:
Method 1 (via touch panel):
1. Tap the value box after End V and the touch panel will switch to a numeric pad as show
in Figure 4-16.
2. Use numeric buttons (0 ~9) to set the value and tap “ ” to complete the setting of End
V.
Method 2 (via rotary knob):
1. Tap to use “Rotary” (
) knob. Tap the value box after End V and the cursor at
lower right will flicker.
To Next Page
