Chroma 62000D Series User Manual

Programmable Bidirectional DC Power Supply 62000D Series
Operating and Programming Manual
3-10
3.2.3 System Setup

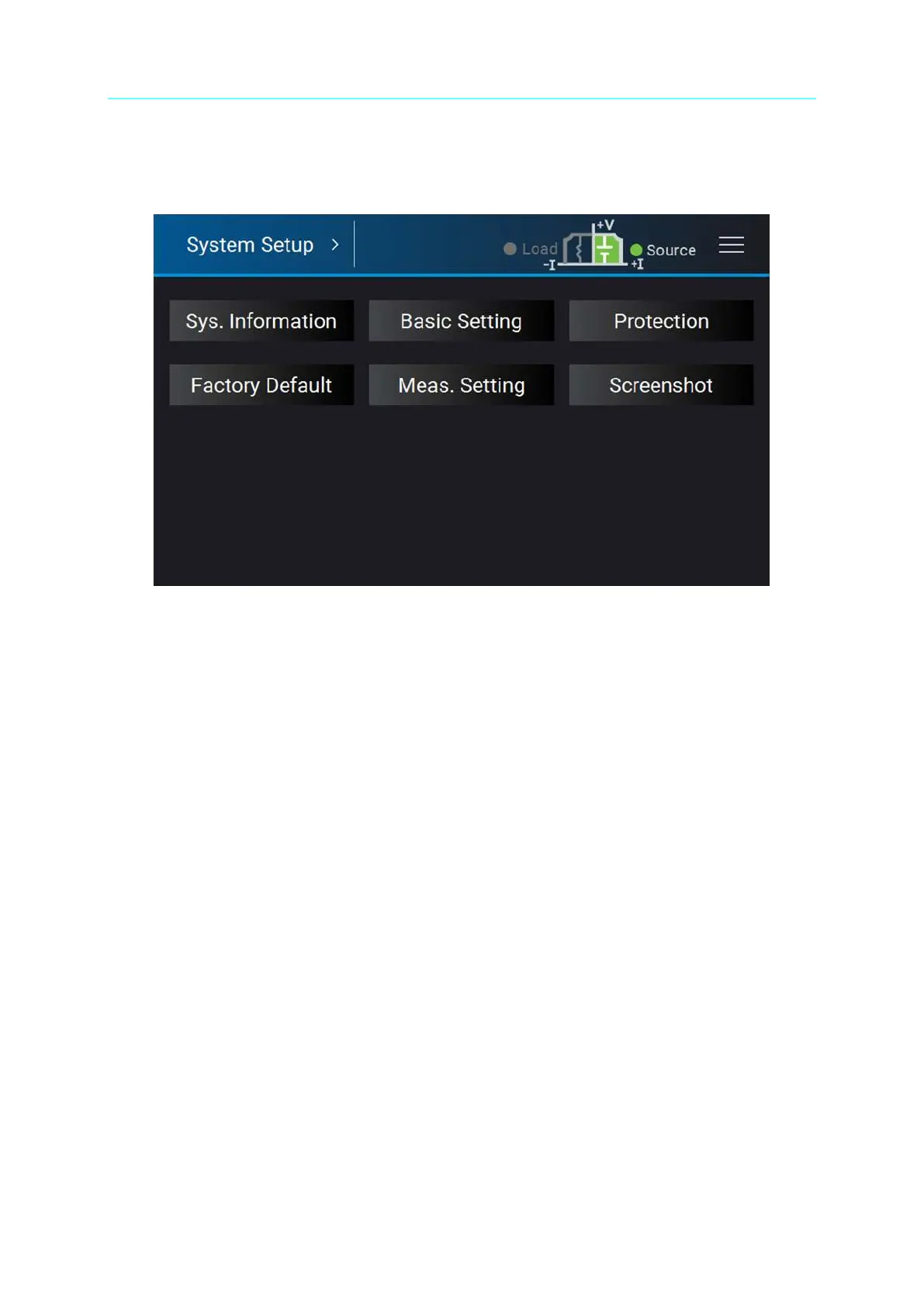

In Menu page, tap “System Setup” to enter into the screen as Figure 3-12 shows.
Figure 3-12
3.2.3.1 System Information
This function allows you to learn the firmware information of the DC power supply. Tap “Sys.
Information” to access it.
The display of each item is explained as follows:
Device Model
：
Displays the power supply model no. as shown in Figure 3-13.
Serial No.
：
Displays the device serial no. as shown in Figure 3-13.
Host
：
Displays the version of CPLD, PCB and UI as shown in Figure 3-13
AD1~AD3
：
Displays the firmware version no. of front stage module as shown in
Figure 3-14.
DD1~DD3
：
Displays the firmware, CPLD, and PCB version no. of rear stage
module as shown in Figure 3-15.
