3.2.3.4.2 OCP
Use the touch panel to set OCP 132.00. This function sets the protection point for Over Current.
Once the output current exceeds the range, it will turn off the output that is OUTPUT = OFF to
protect the unit under test.
There are A/D and D/D over current protections. The A/D OCP occurs when the device
internal is having over current while the D/D OCP occurs when the output terminal is having
over current.
Table 3-2 shows the current range of OCP.
Table 3-2
Model
Min. OCP (A)
Max. OCP (A)
62xxxD-xxxx
0
1.10 x Io_MAX

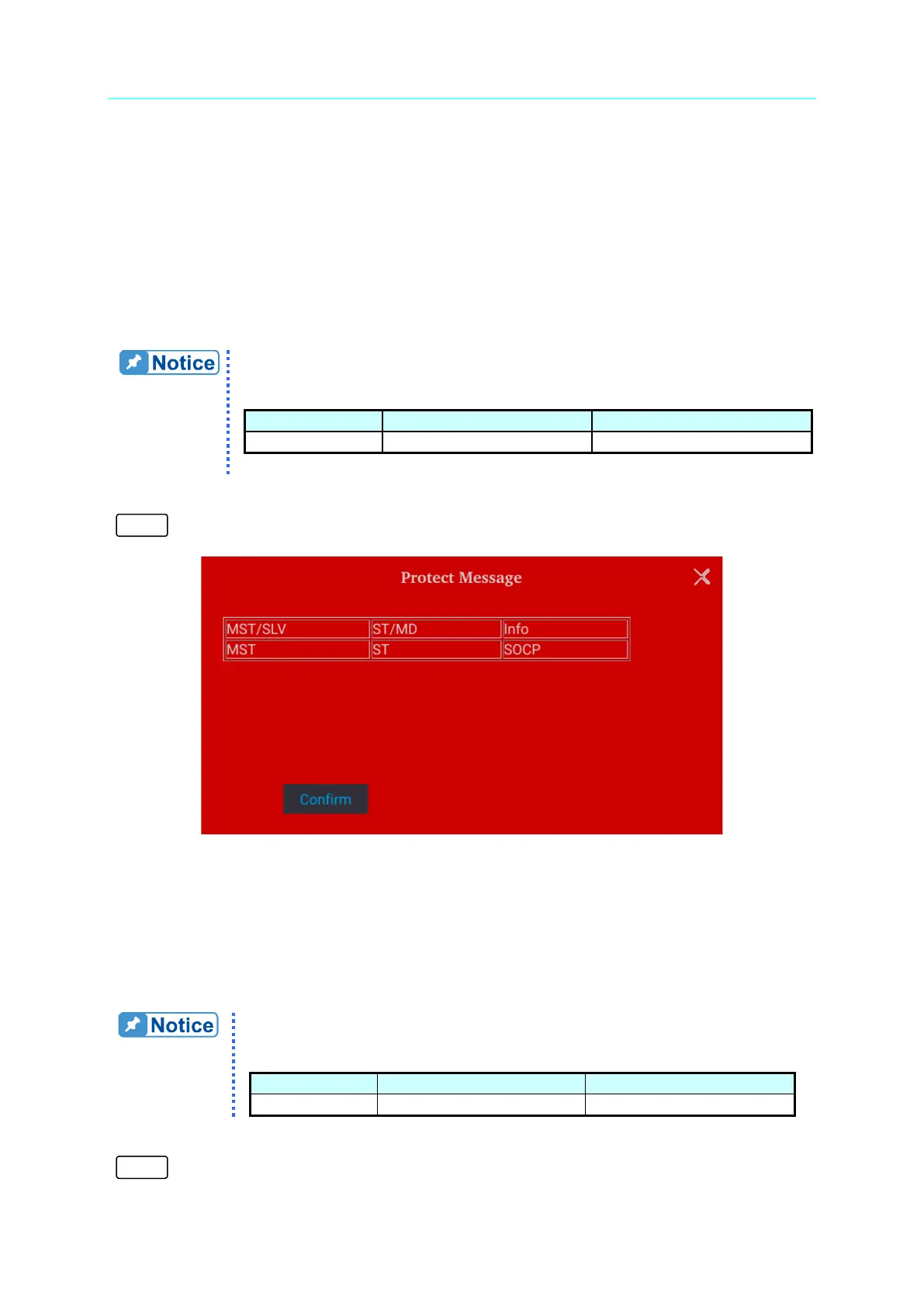

When OCP occurs the main page will prompt a protect message as Figure 3-22 shows. Tap
“
Confirm
” to return to the setup page.
Figure 3-22
3.2.3.4.3 OPP
Use the touch panel to set OPP 18900. This function sets the protection point for Over Power.
Once the output power exceeds the range, it will turn off the output that is OUTPUT = OFF to
protect the unit under test.
Table 3-3 shows the power range of OPP.
Table 3-3
Model
Min. OPP (W)
Max. OPP (W)
62xxxD-xxxx
0
1.05 x Po_MAX
When OPP occurs the main page will prompt a protect message as Figure 3-23 shows. Tap
“
Confirm
” to return to the setup page.
