Manual Operation
3-45
6. When above voltage calibrations are done, tap “STOP” to exit the calibration procedure.
To save the calibration data, tap “SAVE”, and tap “CLEAR” to delete the calibration
parameters if there is no need to save them.
Improper shunt range selection may cause damage to the current shunt.
Calibration points will be different for other models (example is for the
Model 62180D-600), please following the same calibration instructions
3.2.4.4.3 APG Voltage Output Calibration
Table 3-7 lists the hardware requirements for APG voltage output calibration.
Table 3-7
Suggest Model or Capacity
HP 34401A or equivalent DVM
Any DC power supply or DC signal source that
can output 10Vdc and drive more than 100mA.

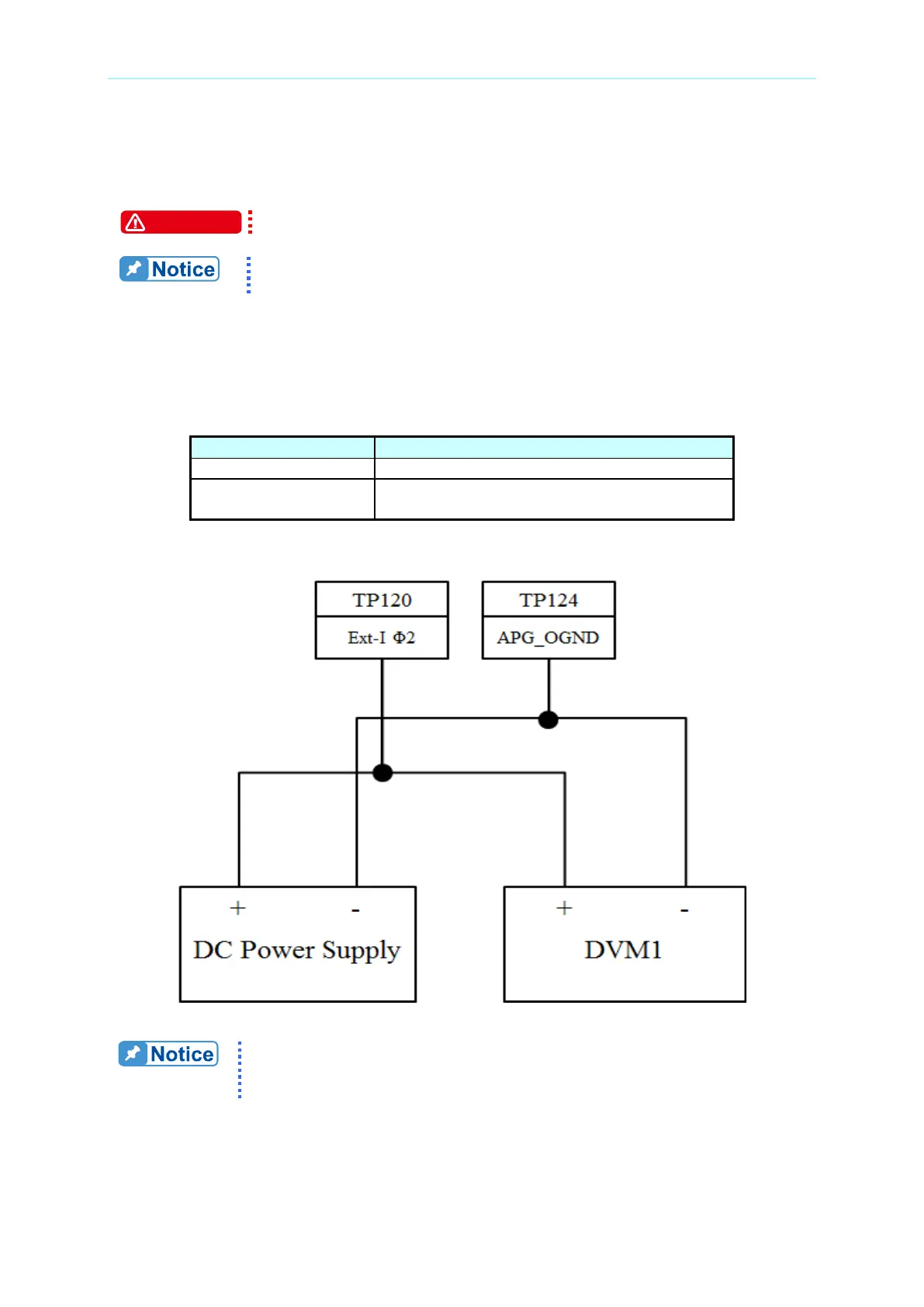

Figure 3-70 shows the wire connection for APG voltage output calibration.
Figure 3-70
When conducting the APG voltage output calibration, each calibration
point has to be entered to at least 4 significant digits (i.e. 5.007V) to
ensure the power supply accuracy after calibration.
Calibration Procedure (Model 62180D-600):
