3.2.4.2.6 Series Mode Connection
1. When D-series power supplies are powered on after the keypro is installed the system will
automatically enter into Serial & Parallel mode as Figure 3-58 shows. (Note: Standalone
operation is invalid in this mode.)
2. Set one device to Master and the other to Slave.

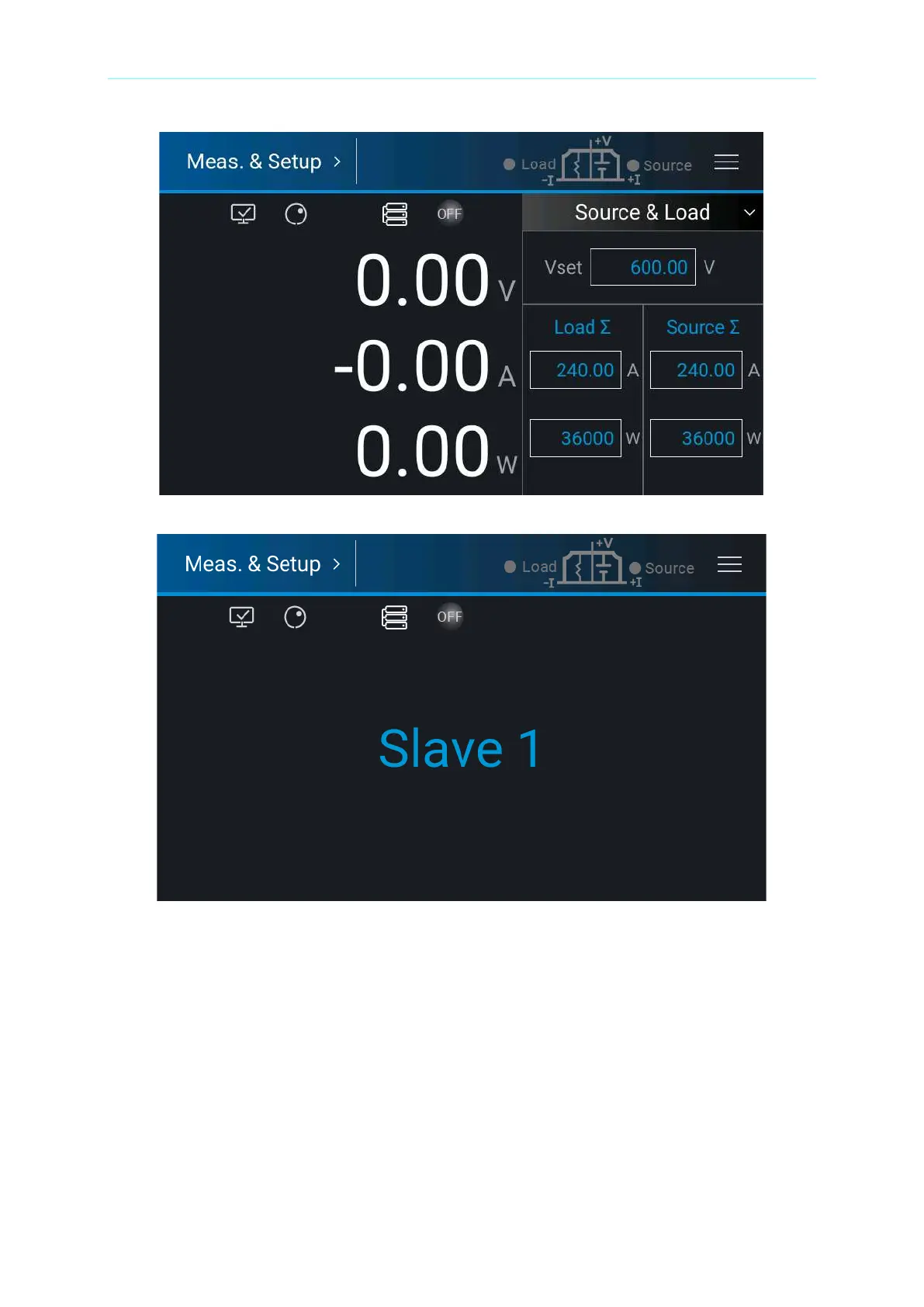

3. Enable the M/S Control to perform series connection control. When the connection is
successful, the Master device displays as Figure 3-59 (ex.62180D-600) shows while the
Slave device displays as Figure 3-57 shows.
