3.2.1.2 Source Mode
Following is the way to set Source Mode:

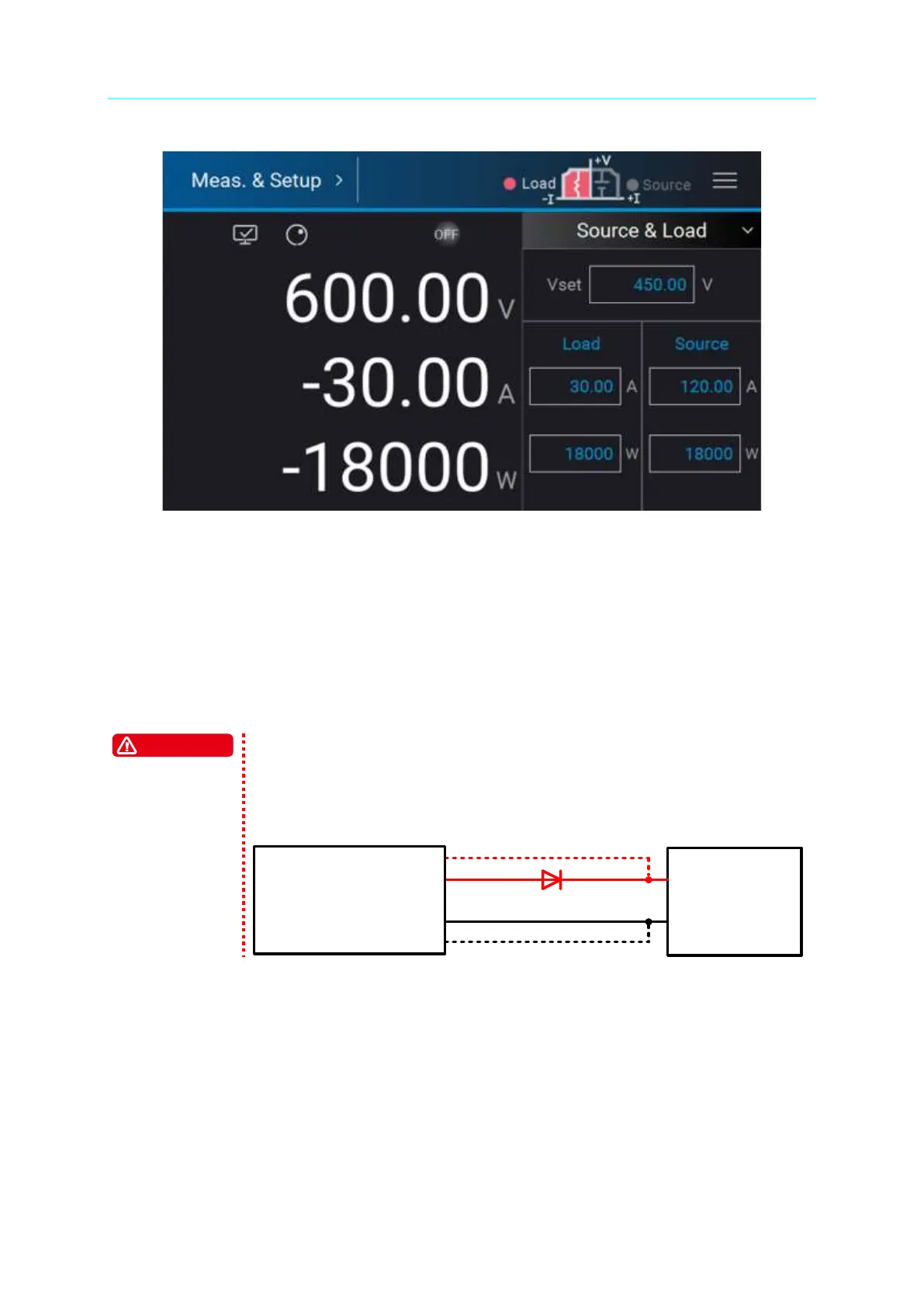

1. Tap the drop-down menu and select Source Mode; the panel will switch to the screen as
Figure 3-5 shows.
2. The rest settings are same as Source & Load Mode.
In Source Mode, negative current will still be generated even when the
output is reversed. (It is recommended to add blocking diode when
connected to the source.)
WARNING
Source Mode
DUT
62000D
Bi-DC SOURCE
SVO+
VO+
SVO-
VO-
