Manual Operation
3-3
3.2.1 Meas. & Setup
3.2.1.1 Source & Load Mode
There are two ways to set the output voltage (CV MODE).
Method 1:
1. Tap V next to the numbers of Vset, the touch panel will switch to a numeric keypad as
Figure 3-3 shows.
2. Use the numeric buttons
（
0 ~9
）
to set the value and tap “ ” to complete the voltage
setting.
3. Press “ ” to output the set voltage. (Be noted that in order to remain the output in CV
mode the current setting must be larger than the load current, otherwise the output
voltage will not equal to the set voltage.)
Method 2:
1. Tap on the panel to use “Rotary” (
) knob and tap V next to the numbers of Vset,
the cursor at the lower right of the number on the main screen will flicker.
2. When using “Rotary” (
) knob for setting, pressing the knob can move the cursor to
individual digit, and then turn the rotary knob to increase or decrease the set value.
3. Press “ ” to output the set voltage. (Be noted that in order to remain the output in CV
mode the current setting must be larger than the load current, otherwise the output
voltage will not equal to the set voltage.)

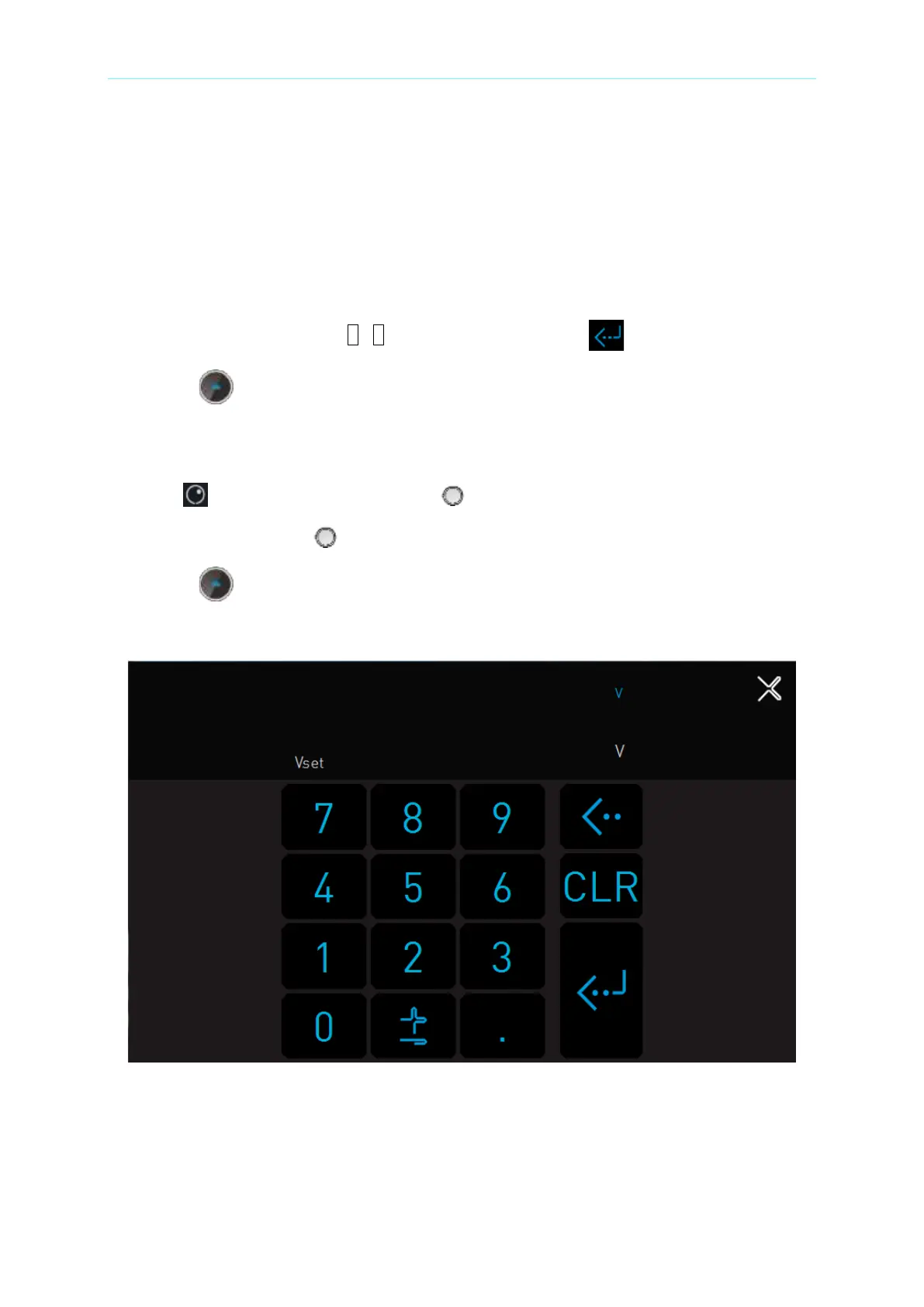

Figure 3-3
Following is the way to set the current (CC MODE):
Tap A next to the numbers under Source, and the rest of the settings are same as shown in
Figure 3-4.
