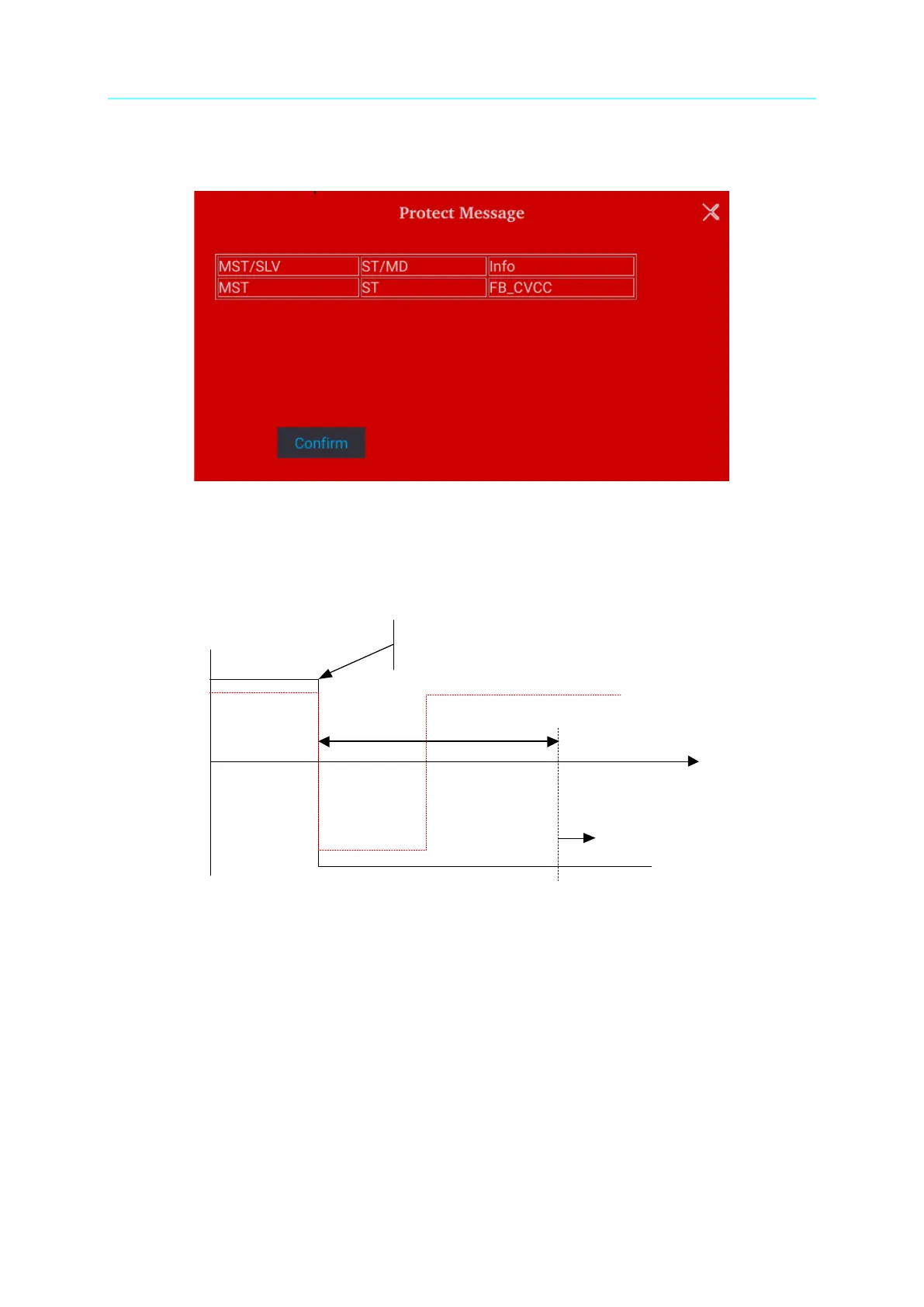

When Foldback protection occurs the main page will prompt a protect message as
Figure 3-29 shows.
Figure 3-29
Be aware that if delay time sets to t seconds, it means the Foldback that set to CV TO
CC or CC TO CV won’t be activated unless it sustains t seconds when a mode change
is detected. If the change time of mode is less than t seconds it will return to its original
state and Foldback protection will not occur as Figure 3-30 shows.
Figure 3-30
Assuming the Foldback is set to CV TO CC, the solid line in Figure 3-30 will create
Foldback protection while the dot line will not.
3.2.3.5 Meas. Setting
1. Tap Meas. Setting to enter into Measurement Setup as Figure 3-31 shows.
2. There are Average Time and Average Method for setting.
