Programmable Bidirectional DC Power Supply 62000D Series
Operating and Programming Manual
3-14

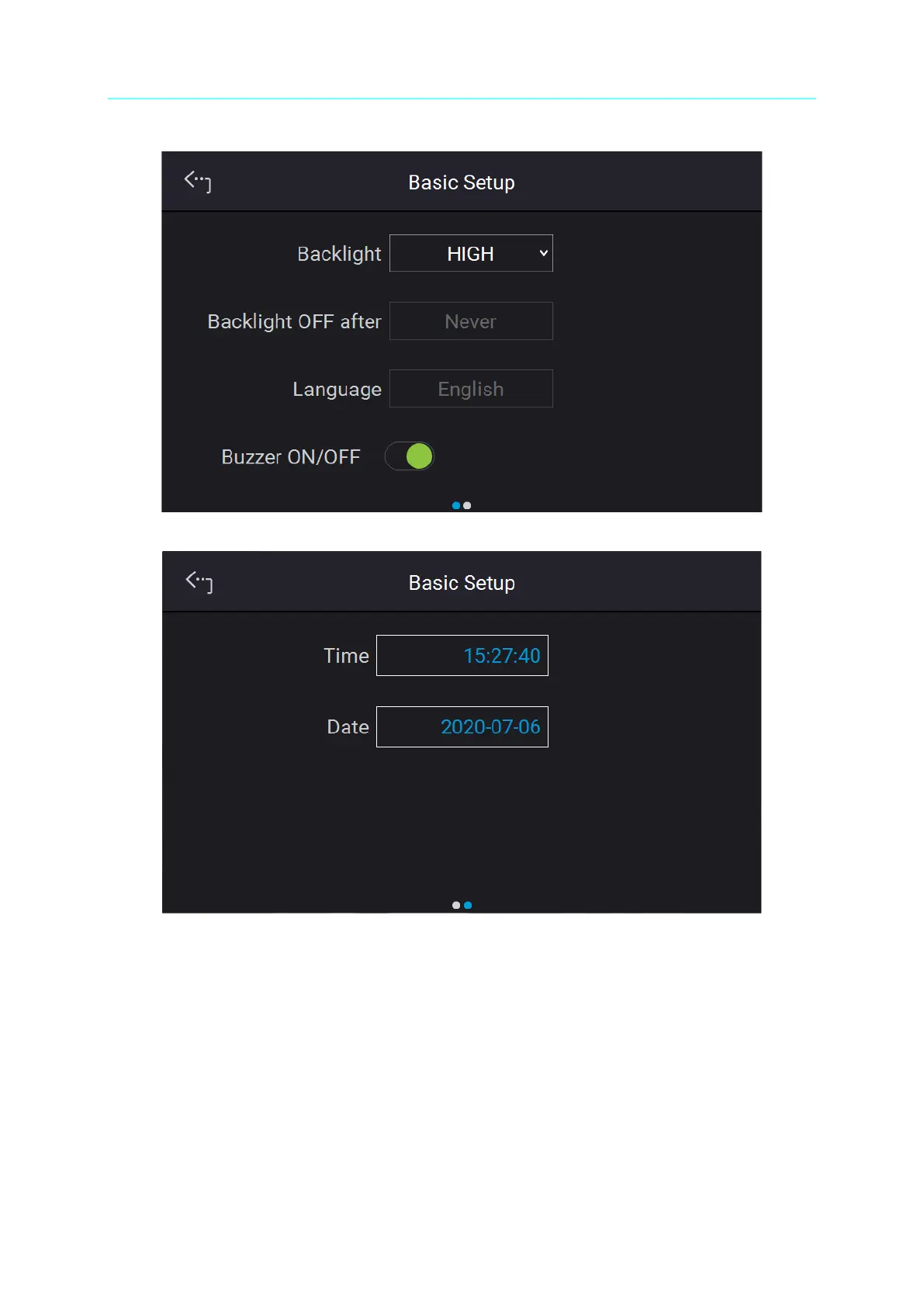

Figure 3-18
Figure 3-19
3.2.3.4 Protection
Chroma 62000D Series DC Power Supplies have complete protection functions divided in
two classes. The first type protection includes over voltage, over current, over power and
FOLDBACK; while the second type protection includes over temperature, fan failure and
over/under input voltage. The first class protection trigger point is set by user as described
below, while the second class protection is auto detected by the system hardware protection
circuit.
In “System Setup” page, select “Protection” to set each protection as shown below. The first
page sets the OVP, OCP, OPP and Foldback as Figure 3-20 shows.
To Next Page
