Chroma 62000D Series User Manual

Programmable Bidirectional DC Power Supply 62000D Series
Operating and Programming Manual
3-8
3.2.2.6 V SLEW RATE

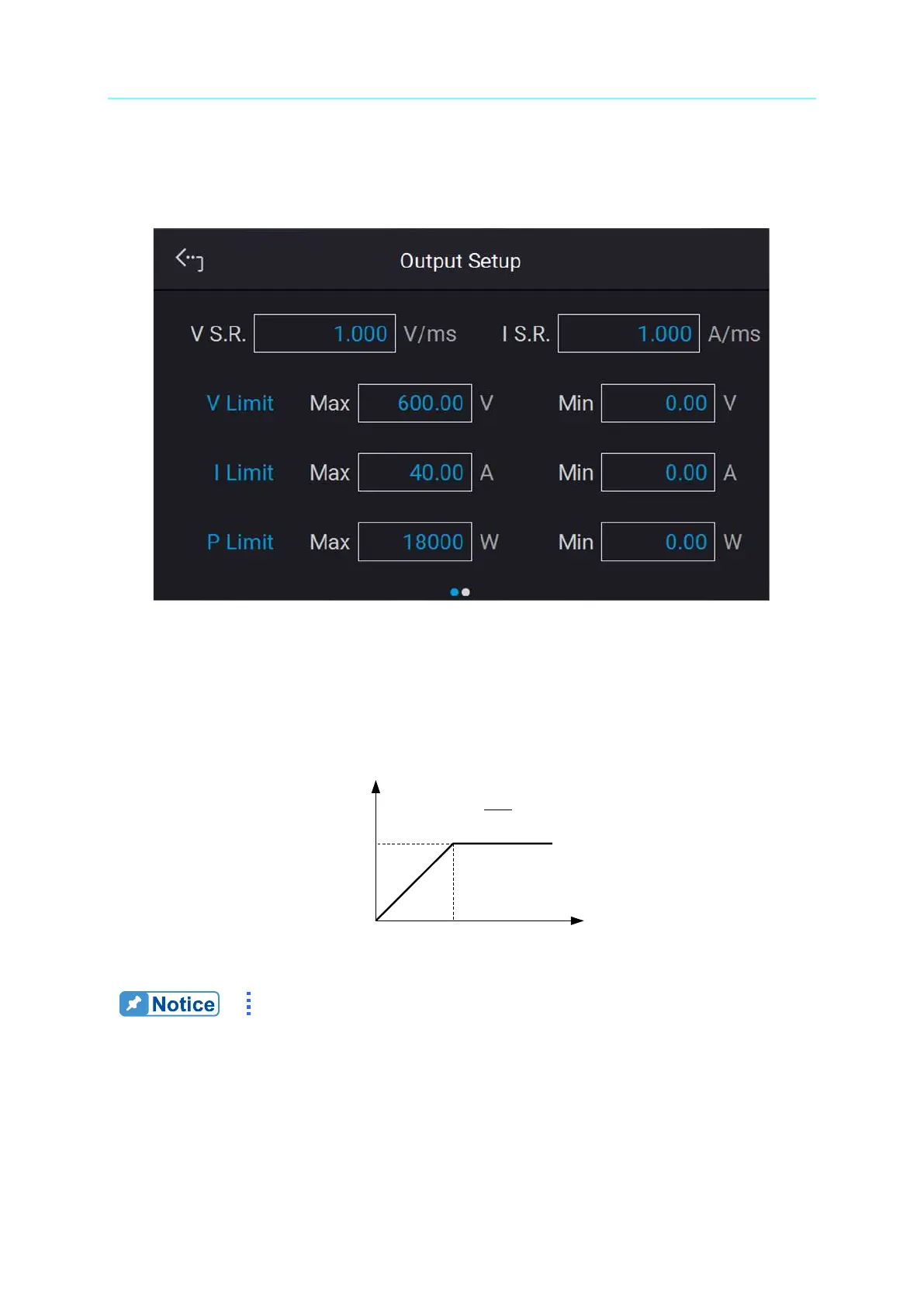

1. Swipe the “Output Setup” page on the touch screen left to next page as Figure 3-8
shows.
Figure 3-8
2. Select the V slew rate corresponding space to set the value.
The output voltage slew rate of the DC power supply is set as follows. The maximum
input Slew Rate is 60V/ms and the minimum is 0.001V/ms. The output of DC power
supply will follow the slew rate to rise to the set output voltage while the fall slew rate is
limited by load. (See Figure 3-9 for the calculation formula.)
Vo
Time(mS)
ΔT
ΔV
V
SR
T



Figure 3-9
The minimum transient time is (ΔT) = 0.5 ms.
3.2.2.7 I SLEW RATE
1. Select the I slew rate corresponding space as shown in Figure 3-8 to set the value.
2. The output current slew rate of the DC power supply is set as follows. The maximum
input Slew Rate is 60A/ms and the minimum is 0.001A/ms. The output of DC power
