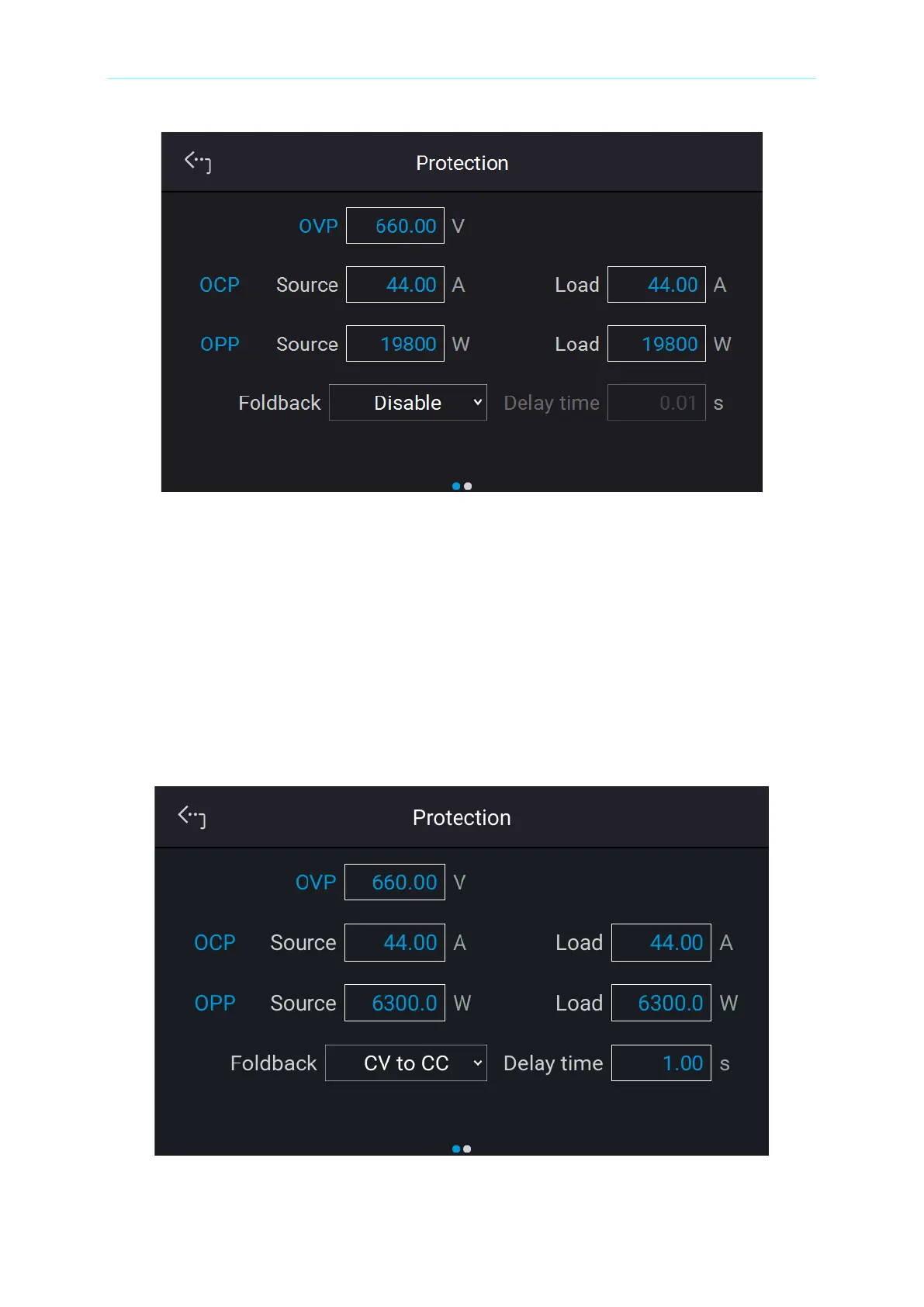

Figure 3-27
1. Use the touch button to set Foldback mode. There are three options available for
selection: Disable, CV TO CC, and CC TO CV.
(1) Disable: Ignore the output off function.
(2) CV TO CC: Active in CV MODE only. Once the operating mode changes to CC
MODE the system will turn off the output to protect the UUT.
(3) CC TO CV: Active in CC MODE only. Once the operating mode changes to CV
MODE the system will turn off the output to protect the UUT.
When the FOLDBACK option set to CV TO CC or CC TO CV, a selection for DELAY
TIME will prompt beneath for users to set the delay time for protection after changed the
mode as Figure 3-28 shows.
Figure 3-28
