Programmable Bidirectional DC Power Supply 62000D Series
Operating and Programming Manual
3-46
1. In Calibration page, tap “Host V” to select APG V SET and list the APG voltage
calibration items as shown in Figure 3-71.

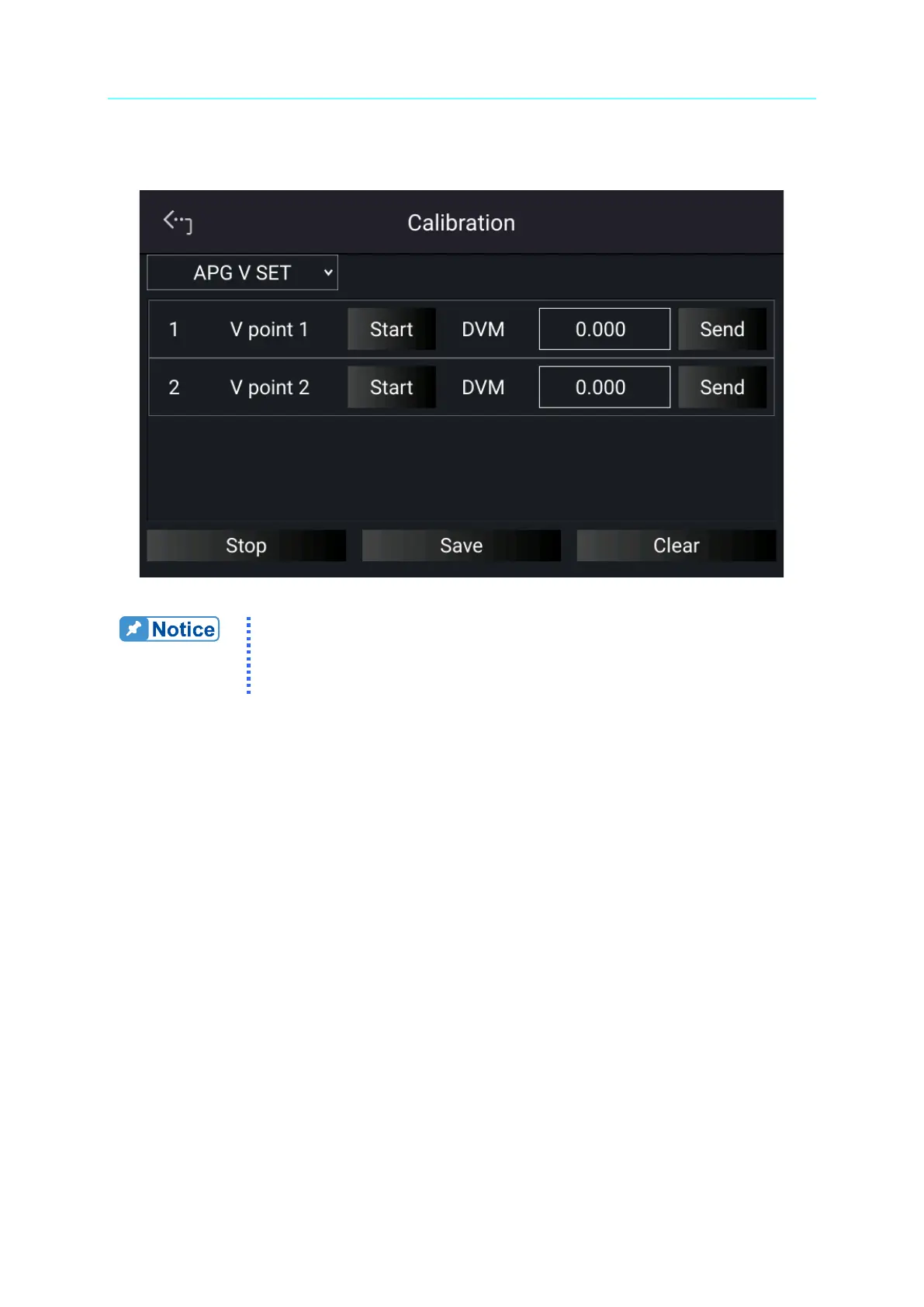

Figure 3-71
1. When entering into the Calibration page, be sure to check the
interface connection on the rear panel is correct.
2. If HP 34401 is used, the DVM1 and DVM2 can be connected to the
front and rear measurement input terminal respectively.
2. When in APG V SET page and the wires are correctly connected, tap “START” next to V
point 1 to calibrate the first point voltage.
3. User will be prompted to input about 1V voltage signal (TP120). Adjust the Power
Supply to 1V±0.1V and use DVM1 to measure the Power Supply. Enter the actual
measured voltage into position [1] and tap “SEND” to confirm.
To Next Page
