Manual Operation
3-25

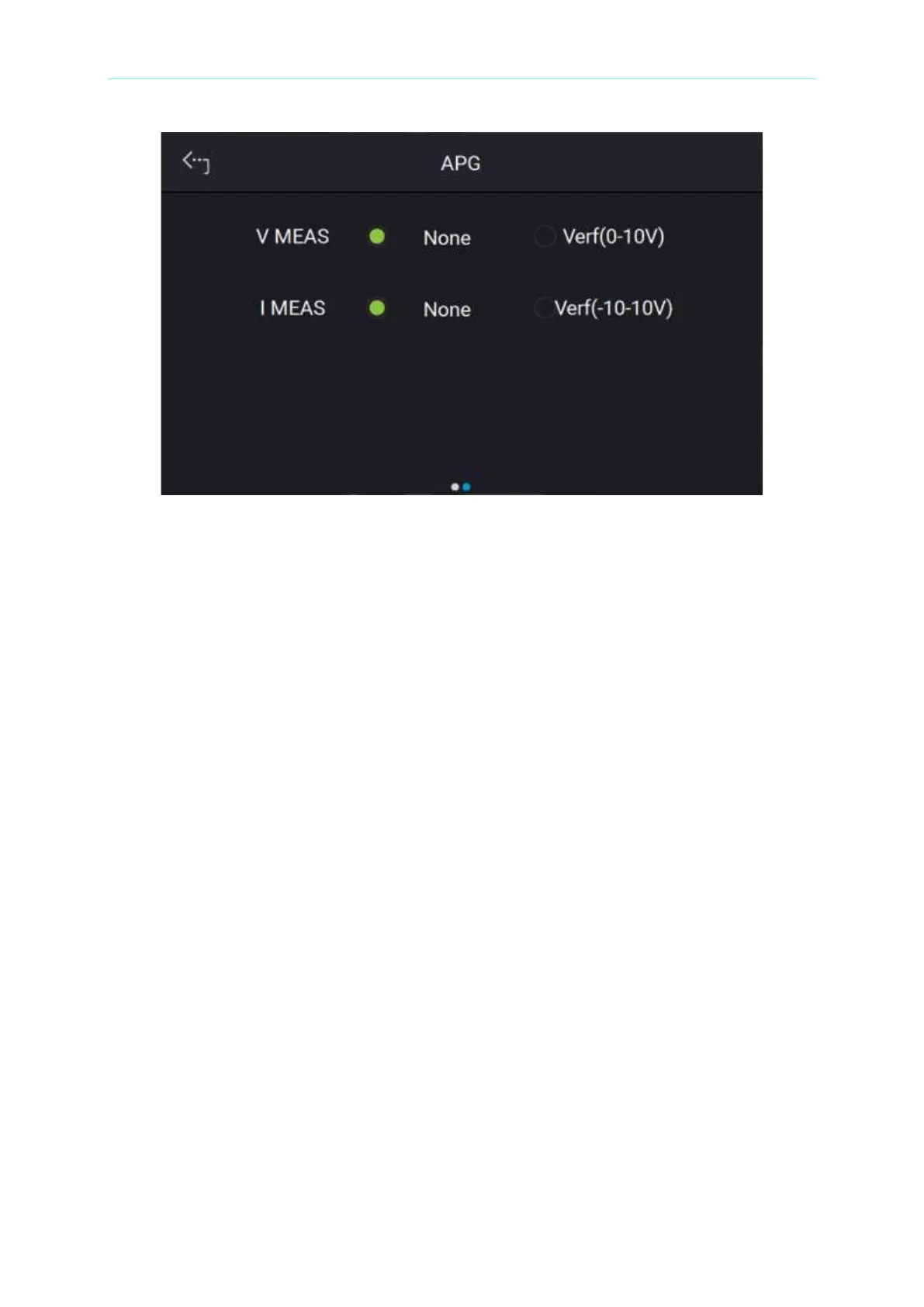

Figure 3-40
2.
V SET
: Use the touch panel to set the mode. There are 2 selections for V SET which are
NONE /Vref (0-10V) , where:
NONE: It means not using the programming function.
Vref (0-10V): It means using the external voltage source as the programming setting.
3.
I SOURCE SET
: Use the touch panel to set the mode. There are 2 selections for I
SOURCE SET which are NONE /Vref (0-10V) , where:
NONE: It means not using the programming function.
Vref (0-10V): It means using the external voltage source as the programming setting.
4.
I LOAD SET
: Use the touch panel to set the mode. There are 2 selections for I LOAD
SET which are NONE /Vref (0-10V) , where:
NONE: It means not using the programming function.
Vref (0-10V): It means using the external voltage source as the programming setting.
5.
V MEAS:
Use the touch panel to set the mode. There are 2 selections for APG VMEAS
which are NONE /Vref (0-10V) , where:
NONE: It means not using the programming function.
Vref (0-10V): It means using the external voltage source as the programming setting.
6.
I MEAS
: Use the touch panel to set the mode. There are 2 selections for APG IMEAS
which are NONE /Vref (-10-10V) , where:
NONE: It means not using the programming function.
Vref (-10-10V): It means using the external voltage source as the programming setting.
7.
Tap the upper left corner on touch panel to go to Menu page.
8.
Tap “MEAS. & Setup” to return to the main page.
