â–€ Installing the Chassis
â–„ ASR 5000 Installation Guide

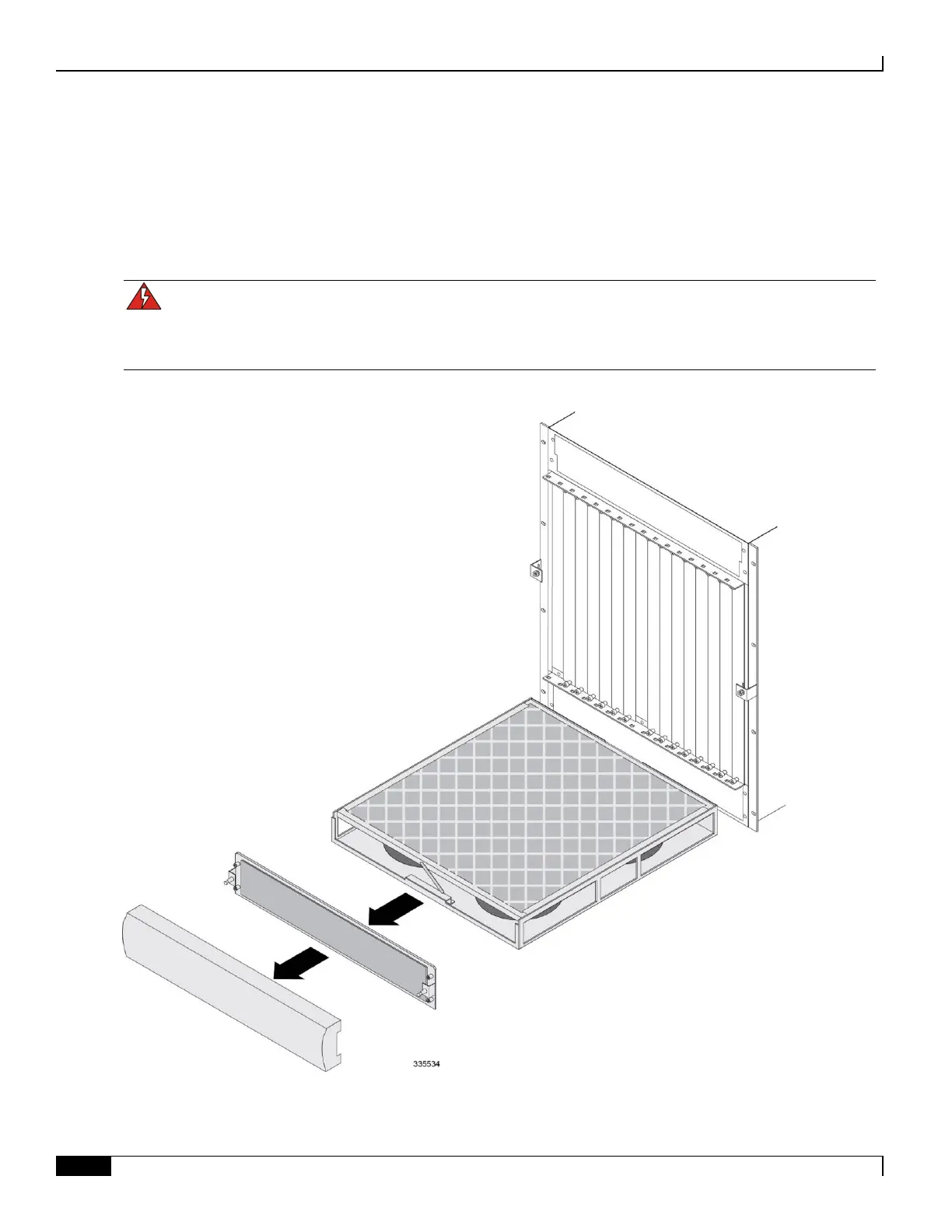

Step a Remove the plastic bezel from the upper-front of the chassis by placing your fingers in the notches
on the sides of the bezel and pulling it toward you. Place it to the side for re-installation later.
Step b Loosen the four screws that secure the fan tray in place using a Phillips #1 screwdriver.
Step c Grasp the two bezel mounts on the front of the fan tray and pull. The fan tray should easily slide
out of the chassis. Place it to the side for re-installation later.
WARNING: To avoid personal injury and/or damage to the fan tray, be sure to support the weight of the fan tray
from its front and back as you slide it completely out of the chassis. Vorsicht beim Herausziehen der Luefter-
Schublade: um eine Beschaedigung des Moduls und eventuelle Verletzungen zu vermeiden, sollte diese hinten und
vorne unterstuetzt werden.
Step 2 Remove the lower fan tray assembly.
