Cisco ASR 5000 Series Installation Guide

Chassis Installation
▀ Installing the Chassis
▄ ASR 5000 Installation Guide
80
Step c Use a Phillips #2 screwdriver to tighten each of the four screws on the PFU to secure it to the
chassis.
Step d Re-install the second PFU in the PFU bay labeled Power Filter Unit 2 by repeating step b and
step c.

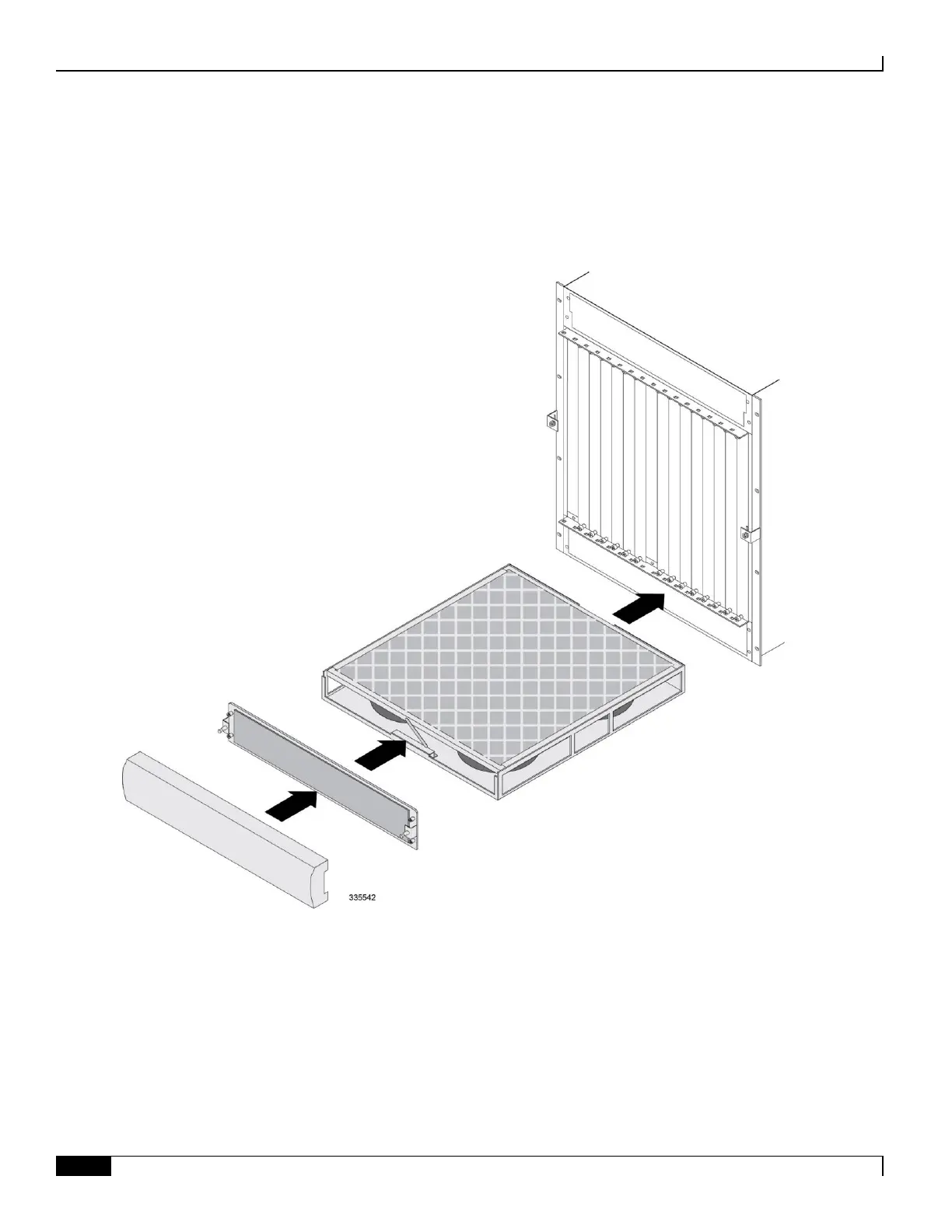

Step 2 Re-install the lower fan tray assembly into the chassis.
Step a Hold the front of the fan tray by its handle with one hand and use your other hand to align it with
the lower fan tray bay of the chassis. The lower fan tray bay is located at the bottom front of the chassis.
Step b Slowly slide the fan tray into the chassis along the guides using its handle until it is seated firmly in
the chassis and can go no further.
Step c Verify that the particulate filter is securely in place. Its front should be flush with the front of the
fan tray assembly and its tab should be lowered to keep it in place.
