Cisco CRS-1 Series Carrier Routing System Getting Started Guide
Chapter 1 Getting Started on the Cisco CRS-1 Router
Hardware Overview: Single-Chassis System

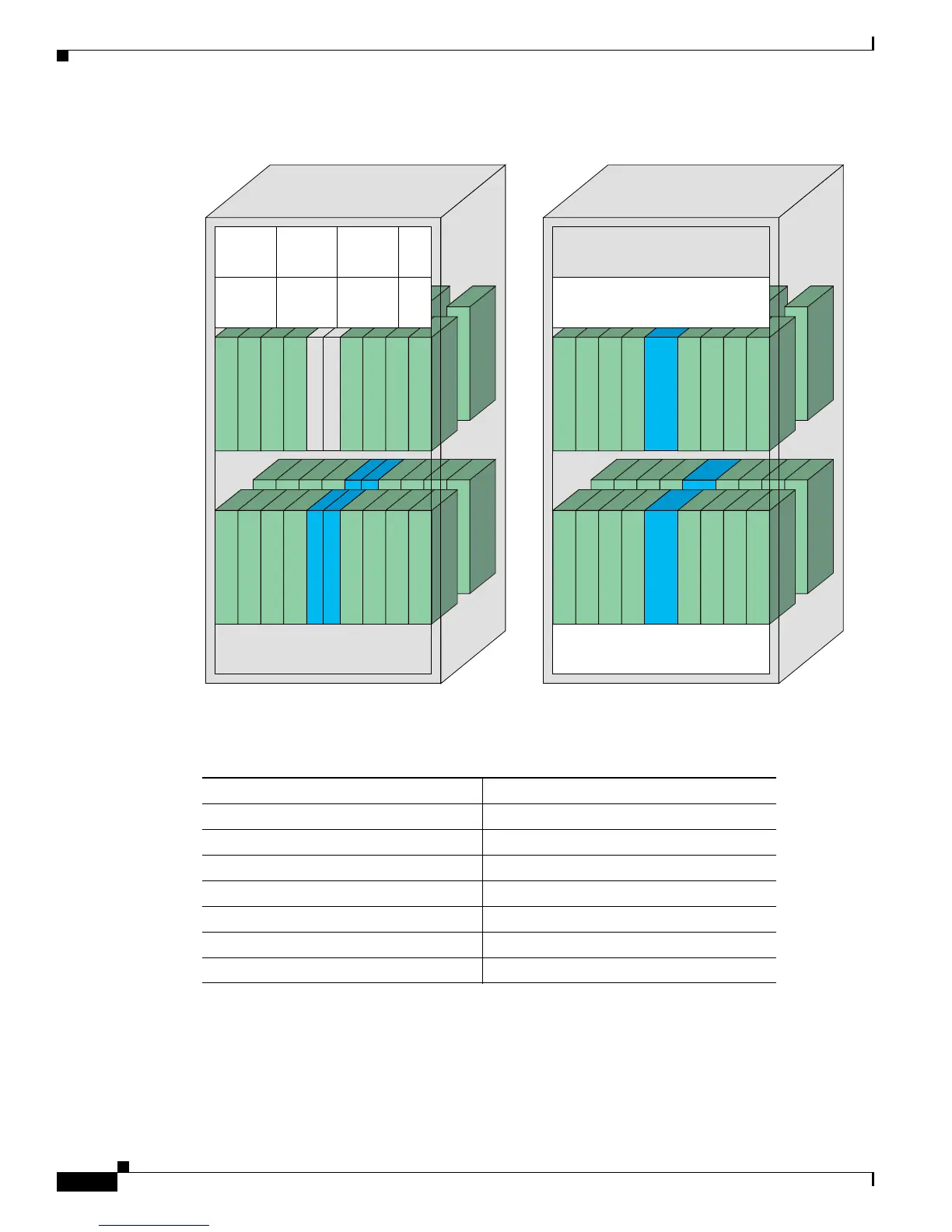

Figure 1-2 Cisco CRS-1 16-Slot Line Card Chassis
Table 1-1 lists the slot range for each card type in the 16-slot chassis.
PLIMPLIM
MSC side of chassisPLIM side of chassis
Line card/DRP
15
Line card/DRP
14
Line card/DRP
13
Line card/DRP
12
Line card/DRP
11
Line card/DRP
10
Line card/DRP
9
Line card/DRP
8
MSC (Line card)
7
MSC (Line card)
6
MSC (Line card)
5
MSC (Line card)
4
MSC (Line card)
3 2 1 0
SM0-
SM3
Fabric cards (FC/S)
SM4-
SM7
Fabric cards (FC/S)
FT0 (fan tray)
FT1
101403
PLIM
PL8
PLIM
PL9
PLIM
PL
10
PLIM
PL
11
PLIM
PL
12
PLIM
PL
13
PLIM
PL
14
PLIM
PL
15
MSC (Line card)MSC (Line card)
PLIM
PL0
PLIM
PL1
PLIM
PL2
PLIM
PL3
PLIM
PL4
PLIM
PL5
PLIM
PL6
PLIM
PL7
FC0 FC1
A0
B0
A1
B1
A2
B2
AM0
AM1
RP0 RP1
MSC (Line card) MSC (Line card) MSC (Line card)
Table 1-1 Card Slots in a Cisco CRS-1 16-Slot Line Card Chassis
Card Type Slot
Route Processor RP0 and RP1
MSC (line card) 0–15
Switch fabric module SM0–SM7
Alarm card AM0–AM1
Fan controller card FC0–FC1
PS0 power shelf components A0–A2
PS1 power shelf components B0–B2
