Chapter 7 RP Redundancy and Hardware Administration on Cisco IOS XR Software
RP Redundancy and Failover
RP Redundancy and Failover
Two RPs can be installed in slots RP0 and RP1 of a line card chassis to form a redundant set (see
Figure 7-10). RP redundancy is enabled by default in the Cisco IOS XR software.

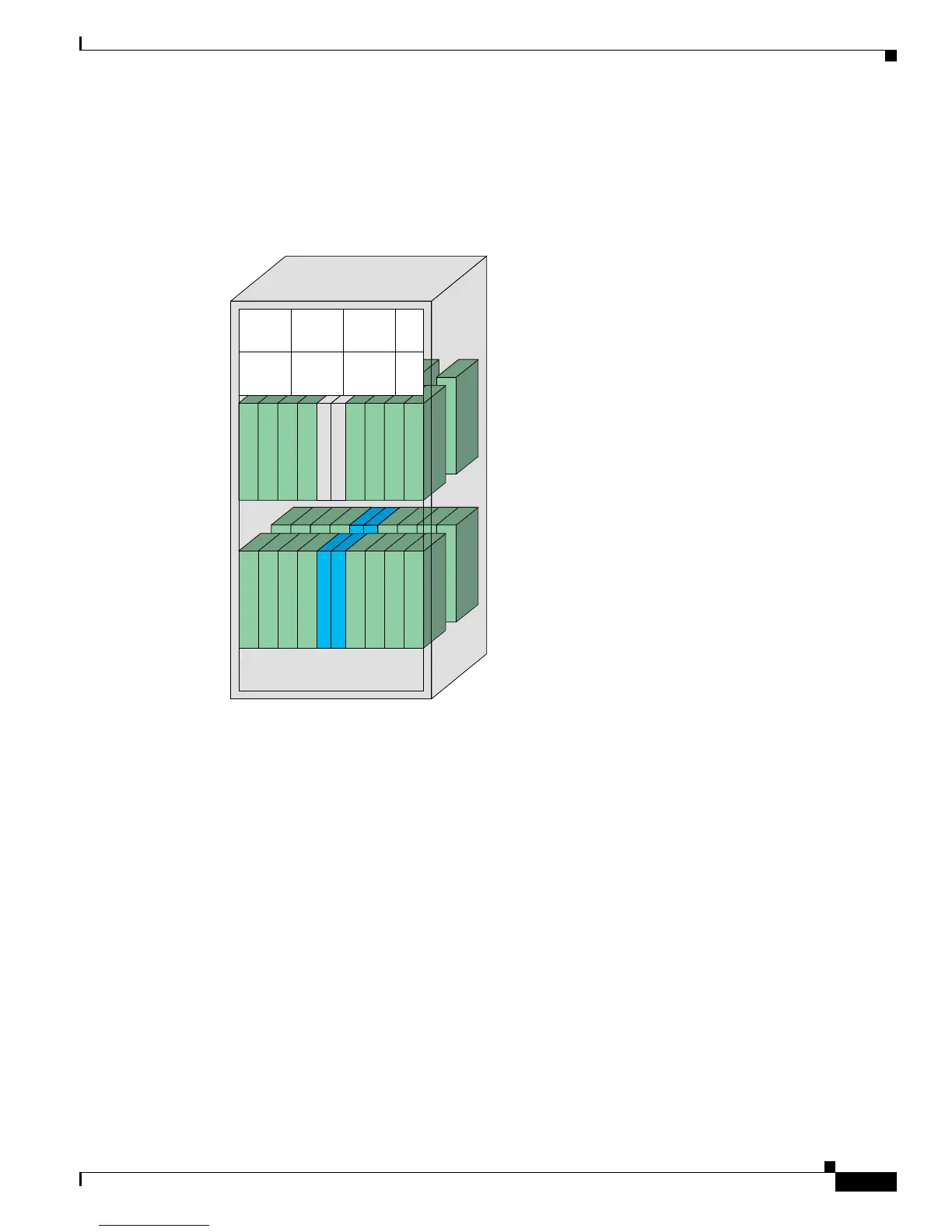

Figure 7-10 Redundant Set of RPs Installed in Slots RP0 and RP1
Determining the Primary RP
During system startup, the first RP to boot with a valid Cisco IOS XR software boot package becomes
the active “primary RP.” The primary RP can in either slot RP0 or slot RP1. You can tell which RP is the
primary RP in the following ways:
• The primary RP can be identified by the green Primary LED on the faceplate of the card. The
primary RP is indicated when the Primary LED is on.
• The slot of the primary RP is indicated in the CLI prompt. For example:
RP/0/RP1/CPU0:router#
In this example, the prompt indicates that you are communicating with the primary RP in slot RP1.
See “CLI Prompt” section on page 2-4 for a complete description of the CLI prompt.
• Enter the show redundancy command in EXEC mode to display a summary of the primary and
standby RP status.
Note: Illustration not to scale
PLIM
PL8
PLIM
PL9
PLIM
PL
10
PLIM
PL
11
PLIM
PL
12
PLIM
PL
13
PLIM
PL
14
PLIM
PL
15
Line cardLine card
PLIM
PL0
PLIM
PL1
PLIM
PL2
PLIM
PL3
PLIM
PL4
PLIM
PL5
PLIM
PL6
PLIM
PL7
FC0 FC1
A0
B0
A1
B1
A2
B2
AM0
AM1
RP0 RP1
116536
