Citrix SD-WAN Platforms

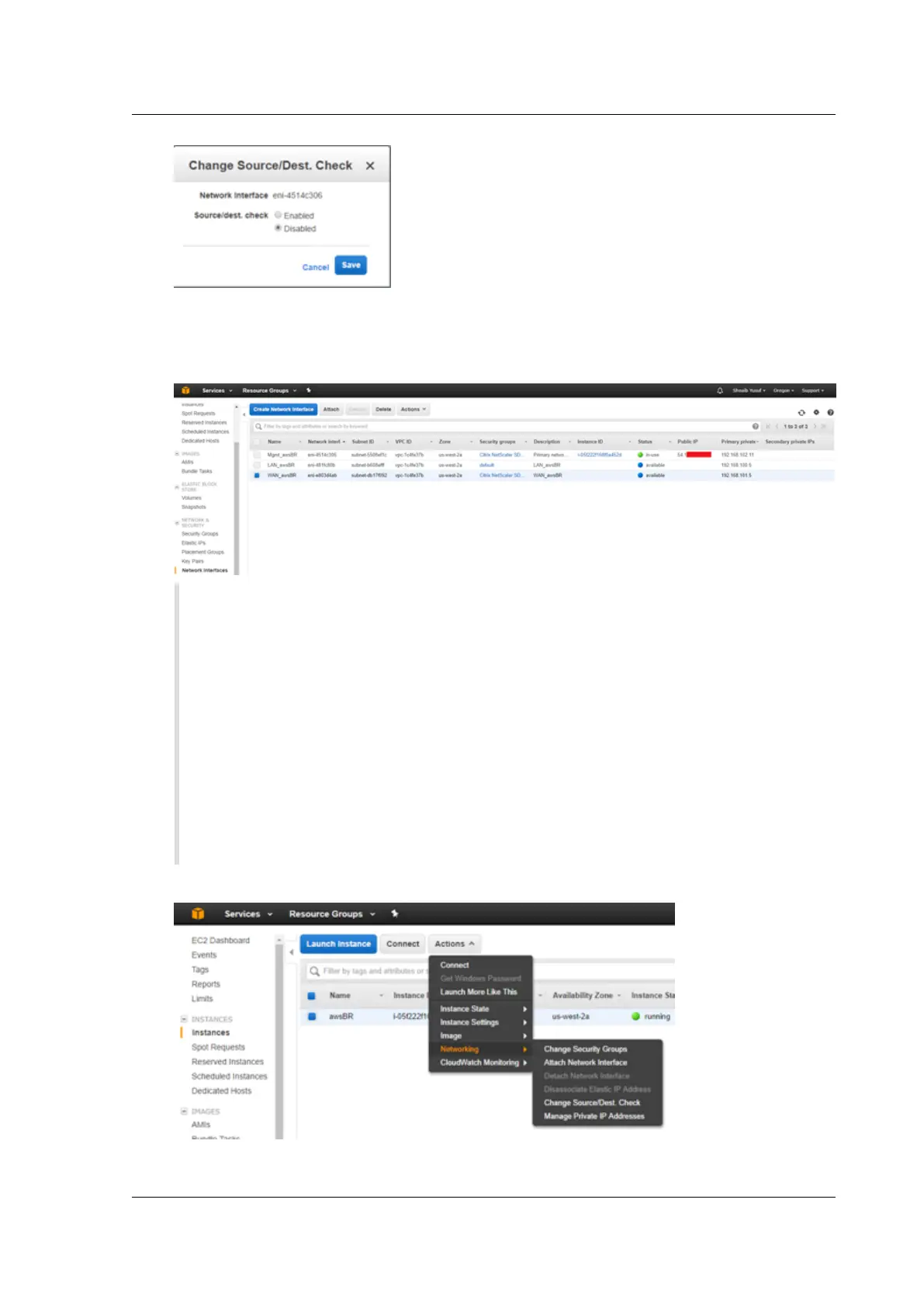

24. At this point all the Network Interfaces: Mgmt., LAN, and WAN each are configuredwith a Name,
Primary private IP, and disabled for Source/Dest. Check attribute. Only the Mgmt. Network
Interface has a Public IP associated with it.
Important
Disabling the Source/Dest. Check attribute enables the interface to handle network traf-
fic that is not destined for the EC2 instance. As the NetScaler SD-WAN AMI acts as a go-
between for network traic, the Source/Dest. Check attribute must be disabled for proper
operation.
The Private IPs defined for these Network Interfaces, ultimately, must match the IP ad-
dresses in your SD-WAN configuration. It can be necessary to define more than one Pri-
vate IP for the WAN Network Interface if that interface is associated with more than one
WAN Link IP in the SD-WAN configuration for this site node. This can be accomplished by
defining Secondary Private IPs for the WAN Interface as needed.
25. From the EC2 Dashboard tool bar, select Instances.
© 1999-2021 Citrix Systems, Inc. All rights reserved. 289
