Citrix SD-WAN Series User Manual

Citrix SD-WAN Platforms

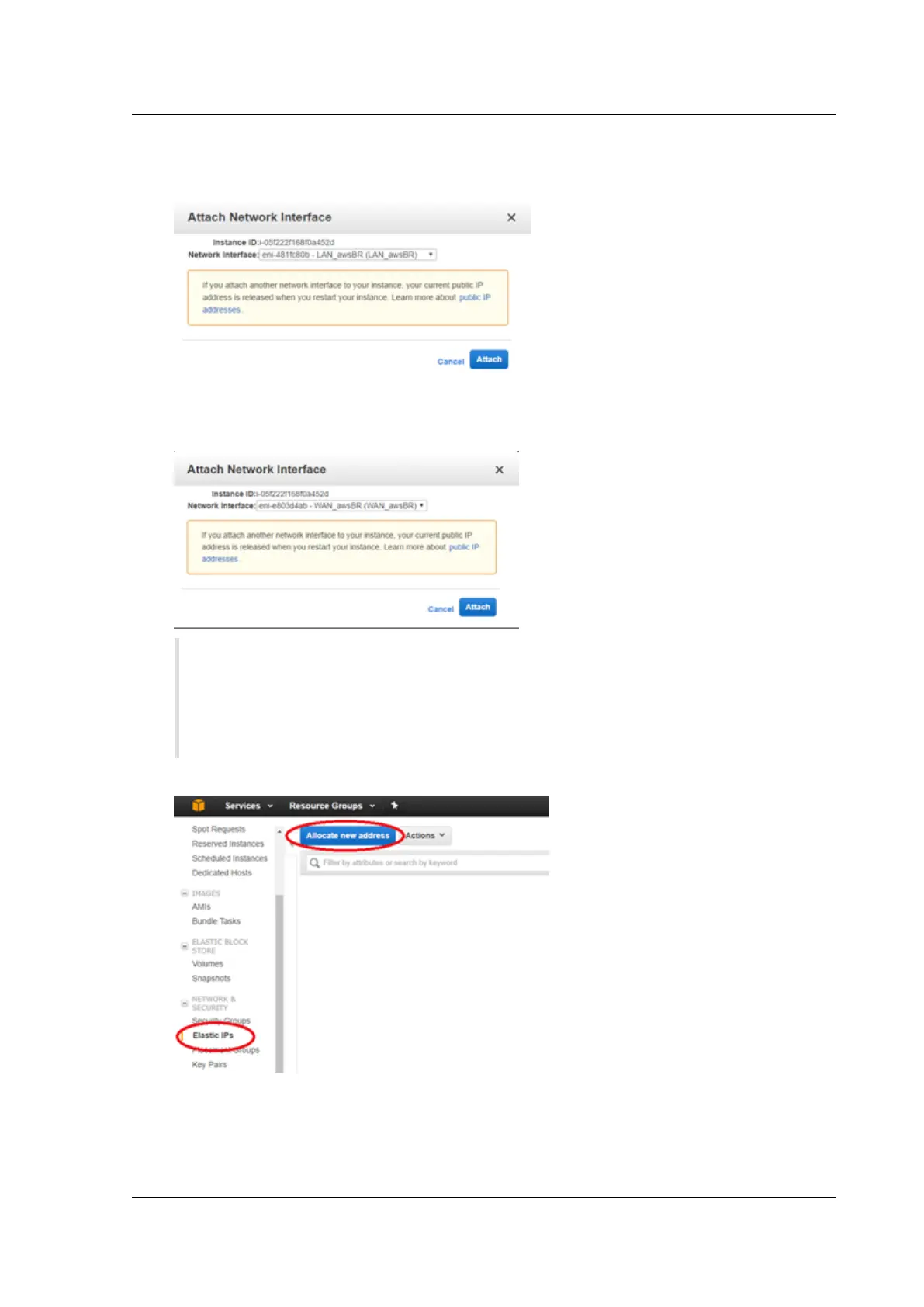

26. Highlight the newly created instance, then select Actions > Networking > Attach Network In-
terface.
27. Attach first the LAN network interface and then the WAN network interface to the SD-WAN SE
AMI.
Note
Attaching the Mgmt, LAN, and WAN in that order attaches to eth0, eth1, eth2 in the SD-WAN
AMI. This aligns with the mapping of the provisioned AMI and ensures that interfaces are
not reassigned incorrectly in the event of AMI reboot.
28. From the EC2 Dashboard tool bar, select Elastic IPs (EIP), then click Allocate new address.
29. ClickAllocate toallocatea new IP address, then Close aer the New address requestsucceeded.
30. Highlight the new EIP and select Action > Associate address to associate the EIP with the Mgmt.
© 1999-2021 Citrix Systems, Inc. All rights reserved. 290

Citrix SD-WAN Series Specifications

General

Product Type	SD-WAN Appliance
Product Series	SD-WAN
Network Interfaces	Gigabit Ethernet
Performance	Varies by model
Form Factor	Rackmount
Management	CLI
Throughput	Varies by model
Interfaces	Ethernet
VPN Support	IPsec, SSL VPN
High Availability	Yes
Security Features	Firewall
WAN Optimization	Application Acceleration, Data Deduplication, Compression
