Citrix SD-WAN Platforms

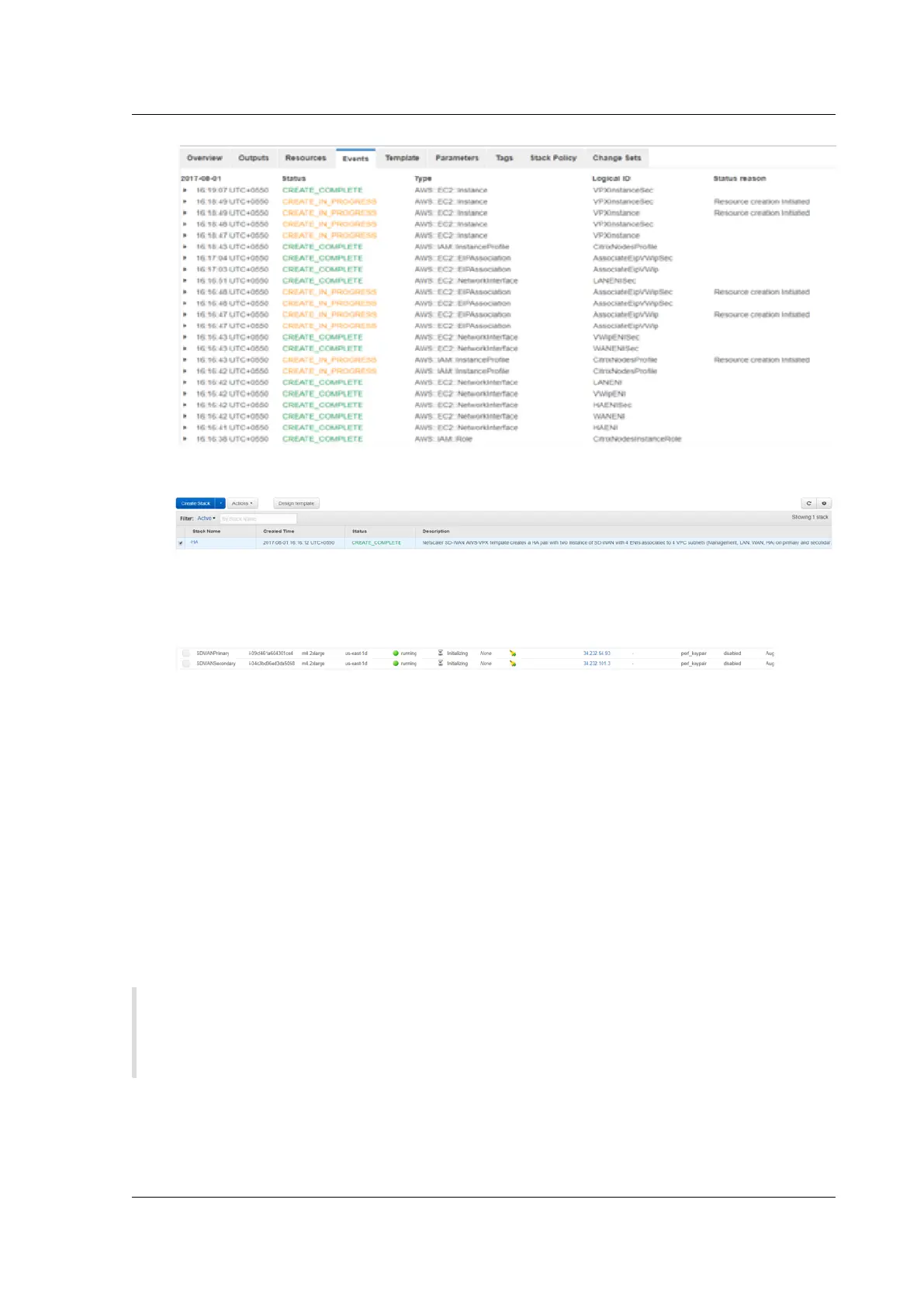

15. Aer successful stack creation, the status of the template appears as Create_Complete.
16. Navigate from AWS console to Services > EC2 > Instances. You can see two instances SDWAN-
Primary and SDWANSecondary instances created, up and running with Elastic IPs associated
with the instances.
17. Select SDWANPrimary instance. You can notice all the resources rightly assigned to the in-
stance, Security groups, Elastic IP, IAM role, and four Network Interfaces. Failed to create any
high availability functionality might not work as expected.
18. Similarly select SDWANSecondary instance and verify the above resources.
Secondary floating IPs for LAN and WAN links
You need a secondary floating IPs for LAN and WAN links for the high availability to work. Once the
stack is created, assign new secondary private IPs to the LAN and WAN interfaces of the active EC2
instance. These secondary configured IPs are used while configuring virtual IP addresses in VPX.
Perform the following procedure to attach the secondary LAN IPs to the active instance:
Note
Once the HA solution is deployed, we have to assign secondary floating IP only to the primary
instance.
1. Navigate to Services > EC2 > Instances.
© 1999-2021 Citrix Systems, Inc. All rights reserved. 317
