Creation of LAN, WAN and MGMT Subnets for Citrix SD-WAN VPXL appliance
The SD-WAN standalone appliance hosts 3 Interfaces in general.
1. Management Interface
2. LAN Interface
3. WAN Interface
The order of association of the interfaces also are important and the first interface that is associated
is the management, followed by LAN and then the WAN subnet.
Management subnet

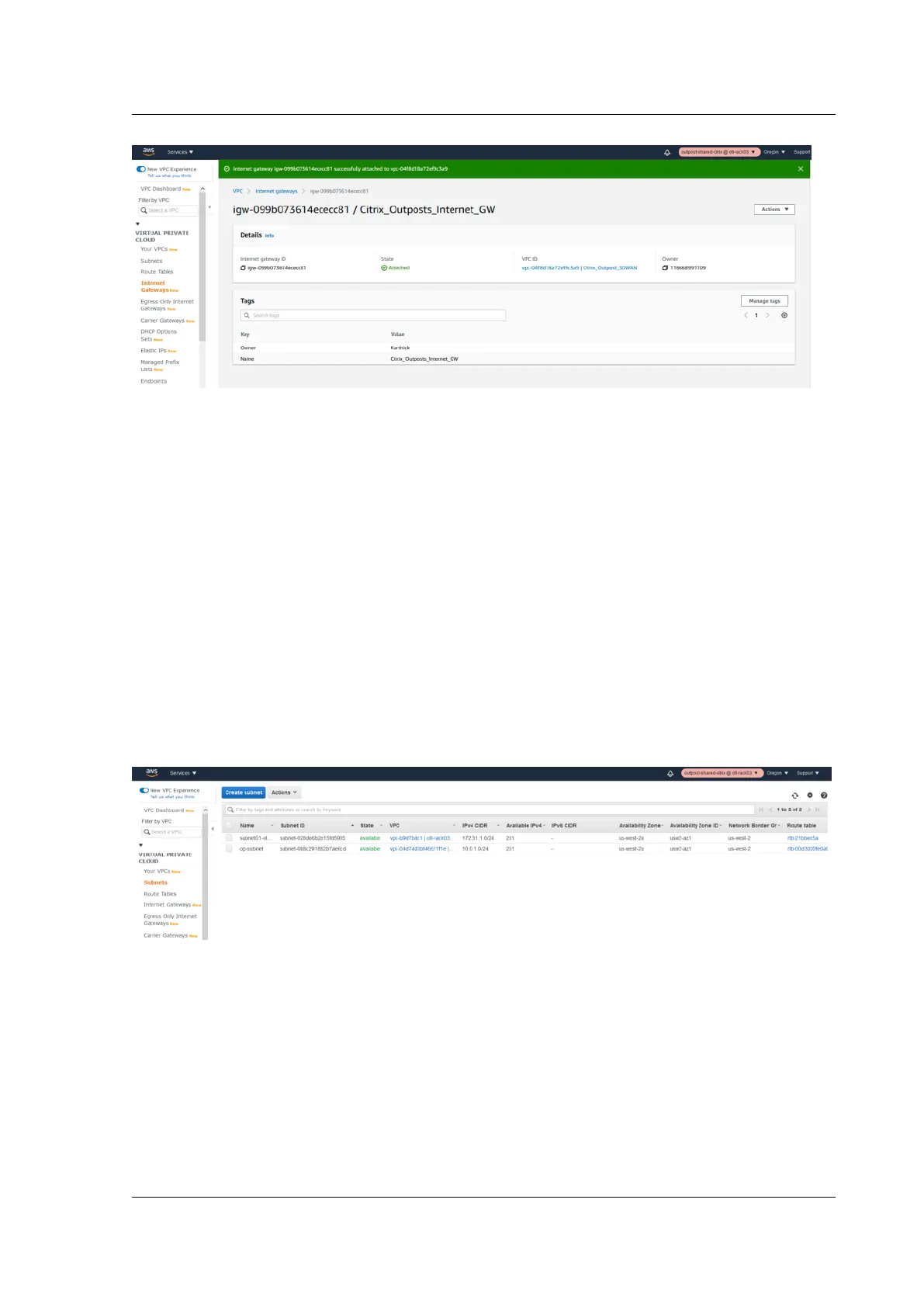

• Click Subnets under VPC
• Click Create subnet
• In the subnet creation window, select the VPC created for SD-WAN as in step 1 and associate.
• Select any availability zone of your choice.
• Provide the management interface a subnet prefix from the VPC CIDR.
• Forthis configuration guide, the managementinterface will be configured with 192.168.102.0/24.
• Click create.
