188 678.1 - RHB LEXION 480 4.2.15
Sieve pan

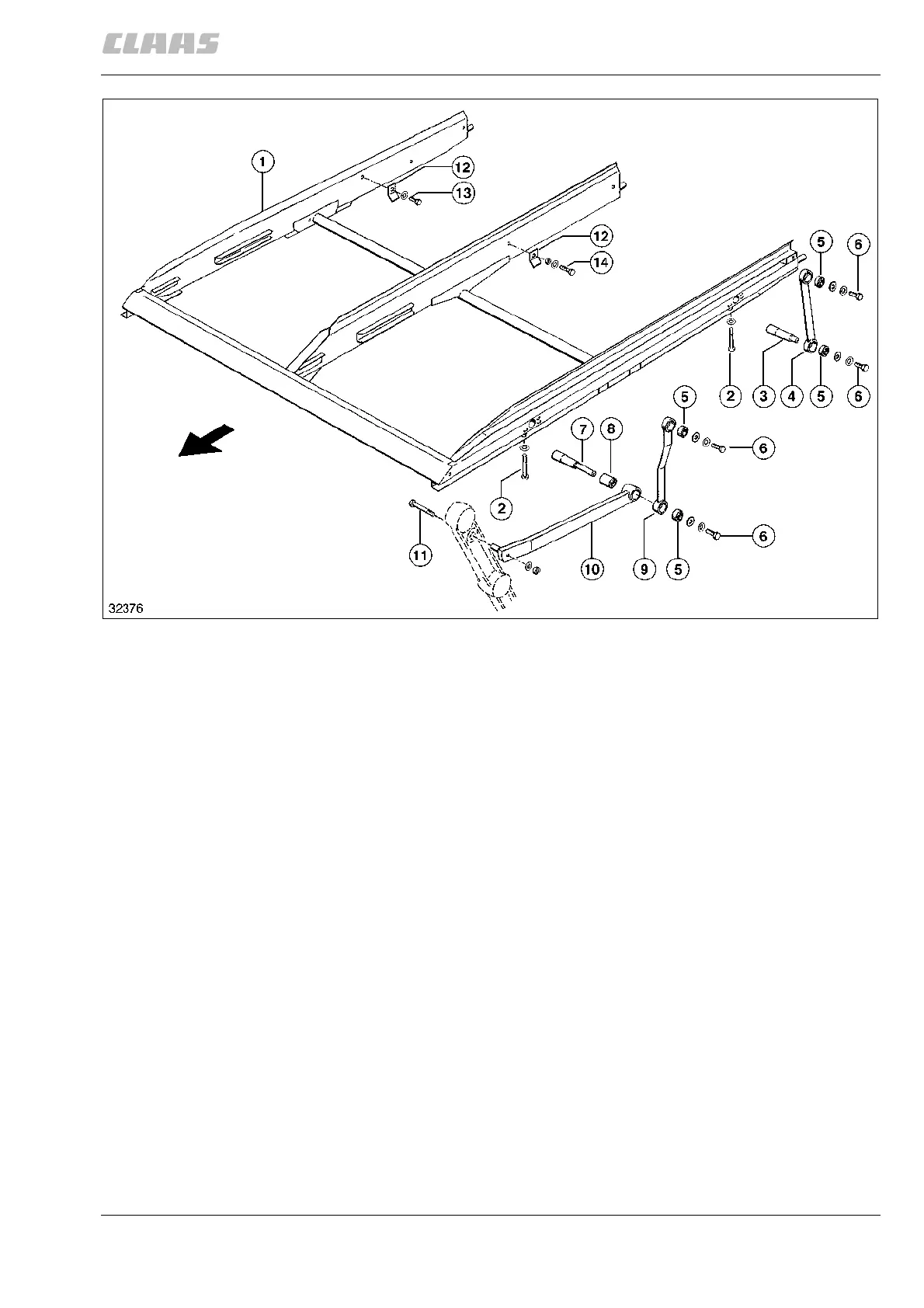

3-D upper sieve frame, disassembled
1 Upper sieve frame
2 Hex. bolt M 10 x 75 DIN 931-10.9
Contact washer A 10
3Pin
4 Rear control arm
5 Metal/rubber bearing
6 Hex. bolt M 10 x 20 DIN 933-8.8
Contact washer A 10
Washer 11 x 26 x 4
7Pin
8 Metal/rubber bearing
9 Front control arm
10 Thrust rod
11 Pin (up to serial no. ...)
Hex. bolt M 10 x 90 DIN 931-8.8
(from serial no. …)
Contact washer A 10
Hex. nut M 10 DIN 934-8.8
12 Clamping piece
13 Hex. bolt M 10 x 25 DIN 933-8.8
Contact washer A 10
14 Hex. bolt M 10 x 65 DIN 933-10.9
Contact washer A 10
Hex. nut M 10 DIN 934
(Fig. 46)
46
Sieve pan
