1-6 Compaq AlphaServer ES40 Service Guide

1.3

System Chassis—Front View/Top View

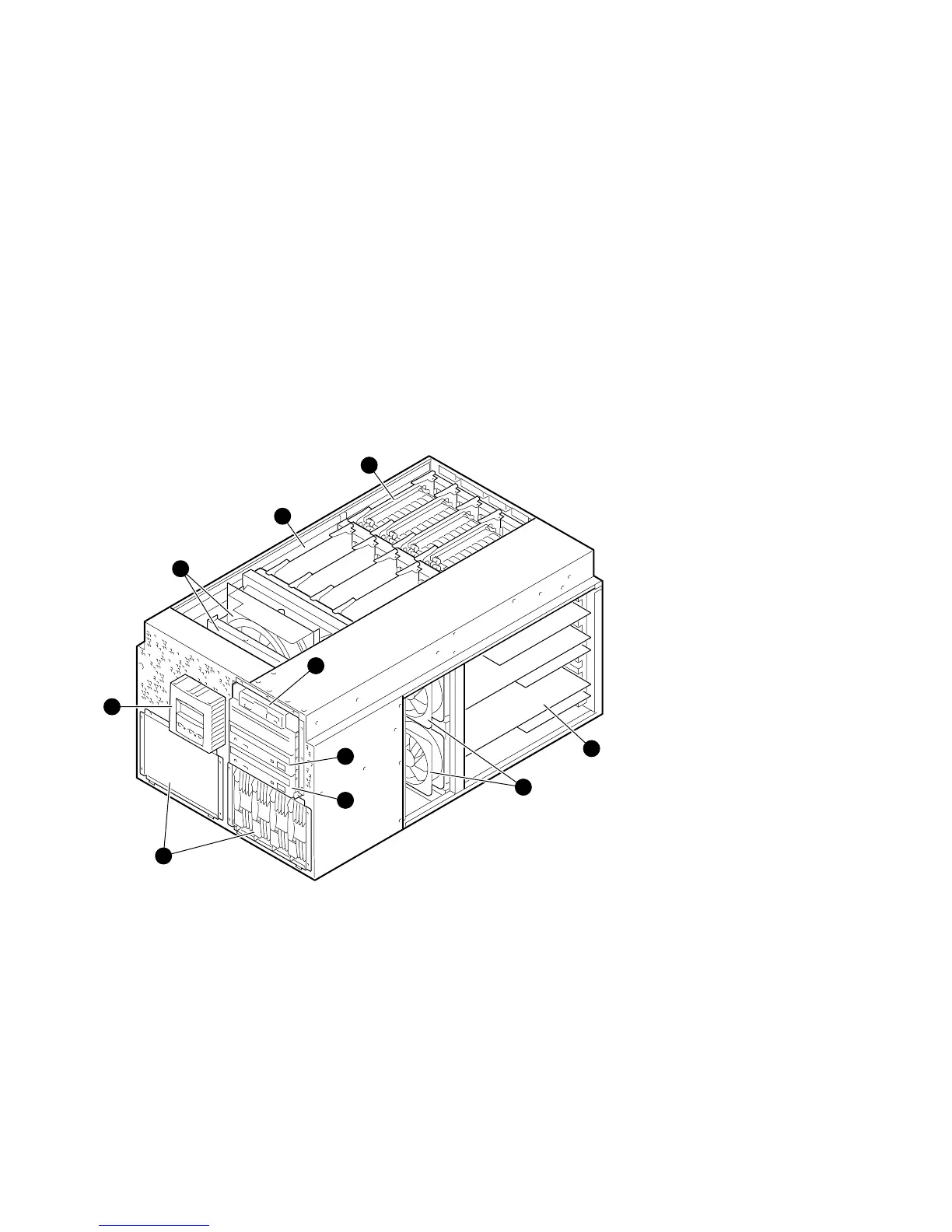

Figure 1–3 Components Top/Front View (Pedestal/Rackmount

Orientation)

PK0201

➊

Operator control panel

➋

CD-ROM drive

➌

Removable media bays

➍

Floppy diskette drive

➎

Storage drive bays

➏

Fans

➐ CPUs

➑ Memory

➒ PCI cards
