8-42 Compaq AlphaServer ES40 Service Guide
8.15 PCI Backplane

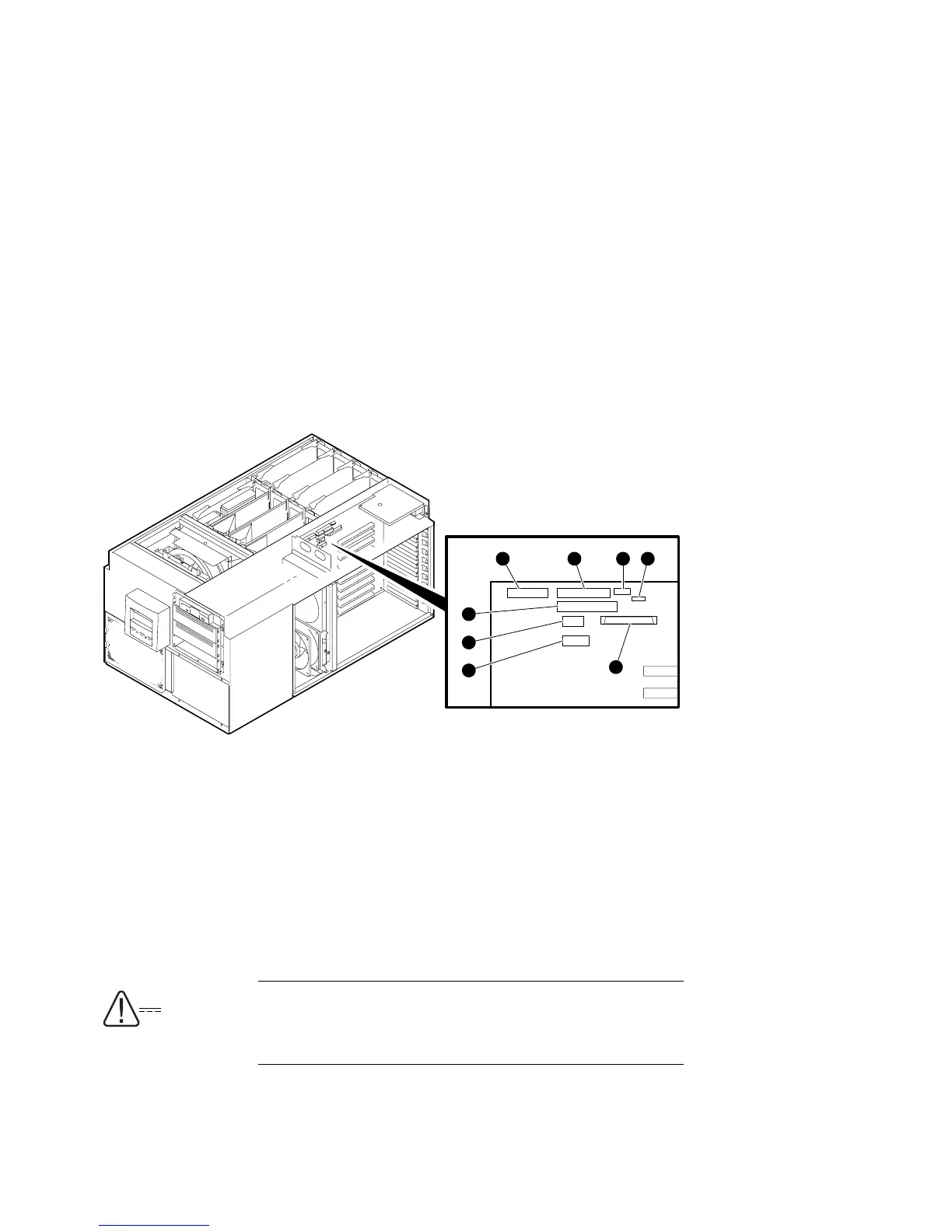

Figure 8–20 Cables Connected to PCI Backplane
1 2 3 4
8
5
6
7
PK0279
Connecting Cable Connects To:
➊
17-04785-01 Fans
➋
17-03970-04 Floppy
➌ 17-04786-01 Cover sensors
➍ 70-31349-01 Speaker
➎ 17-04678-02 CD-ROM
➏
17-03971-07 OCP
➐
17-04914-01 (if present) Storage disk cage
➑
17-04400-06 I/O controller module
V @ >240VA
WARNING: High current area. Currents exceeding
240 VA can cause burns or eye injury. Avoid
contact with parts or remove power prior to access.
