1-20 Compaq AlphaServer ES40 Service Guide
1.10 Remote System Management Logic
The remote system management logic consists of two major elements:
the System Power Controller (SPC), used to monitor and control system
power supplies, regulators, and cooling apparatus; and the Remote
Management Console (RMC), which facilitates remote interrogation
and control of the system. The components used within the remote
system management logic are powered by the AUX_5V supply, which is
always present whenever AC input power is available to the system.

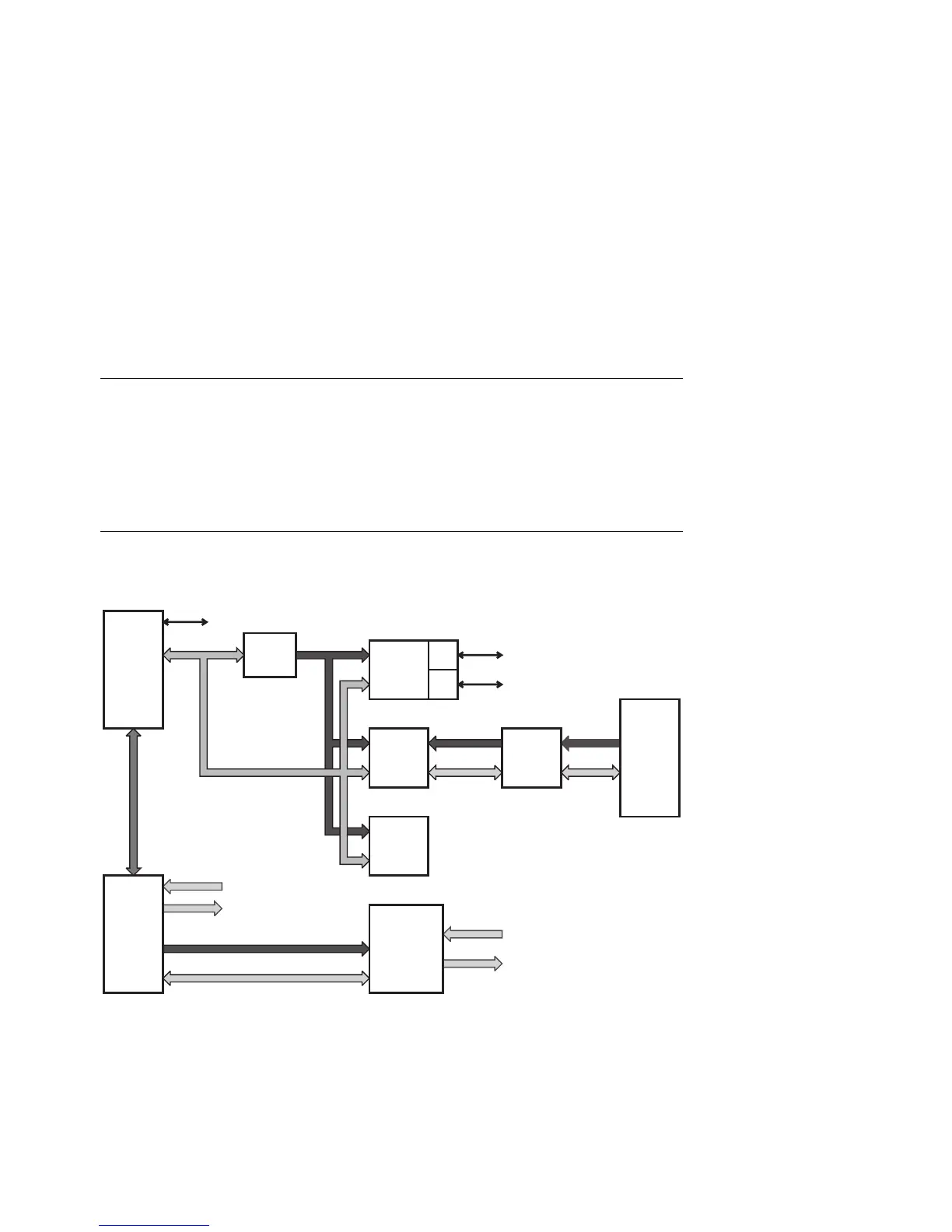

Figure 1–11 Remote System Management Logic Diagram
TIG
ADDR
Latch
PWR5
AUX5
AUX5
AUX5
AUX5
AUX5AUX5
AUX5
AUX5
ADDRESS
I
2
C
COM1(Modem Port)
System COM1 UART
DATA
ADDRESS
ADDRESS
STATUS
STATUS
CONTROL
CONTROL
DATA
DATA
DUART
SPC
Register
Array
RMC
Flash
RAM
Dual-
Port
SRAM
Bus
Isolator
PKO912
PICADBUS
RMC
PIC
SPC
PIC
