149
9) Install retaining ring to housing groove.
Make sure that the retaining ring is
completely dropped in the groove.

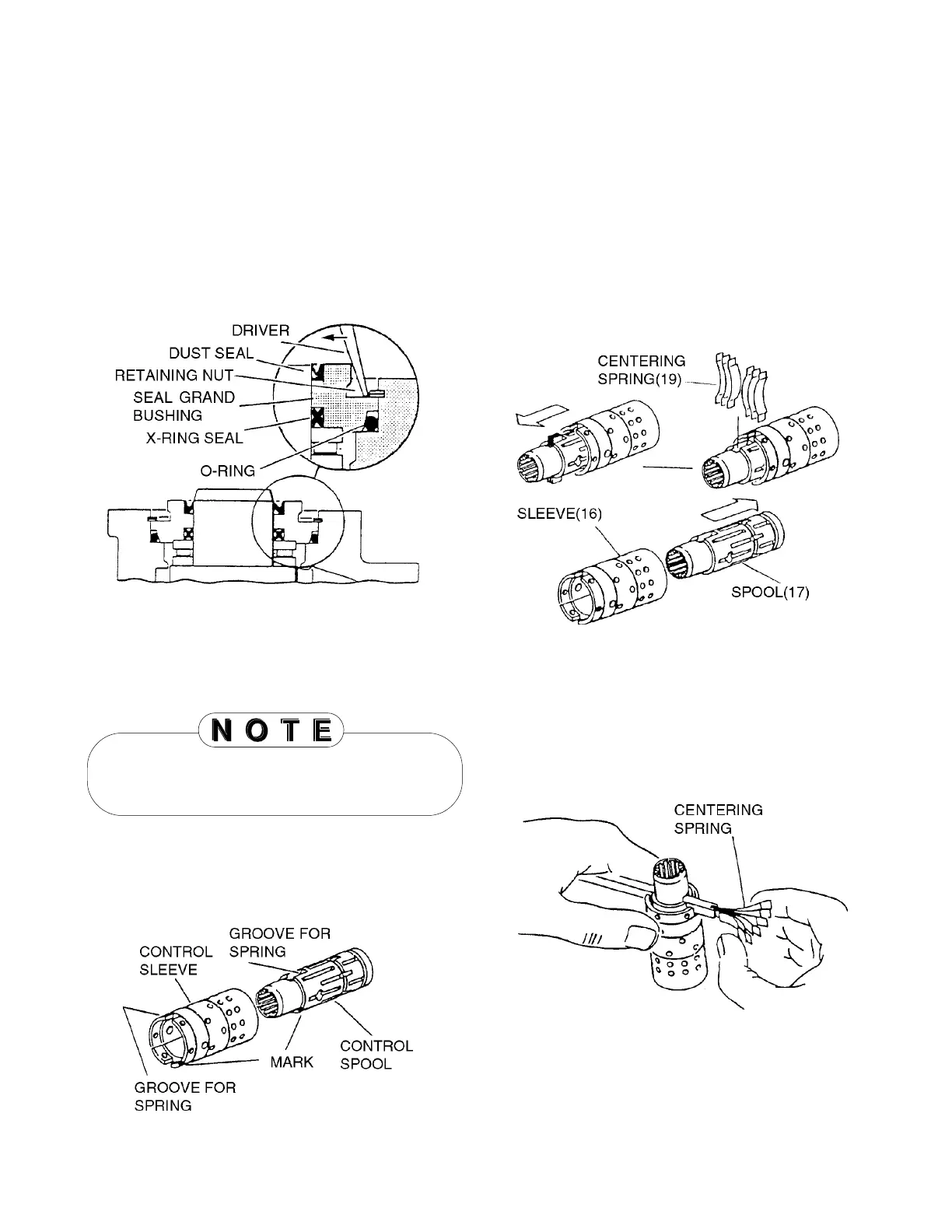

10) Install dust seal and X-ring seal to seal
grand bushing (3) and insert spool (17) as
shown below.
Make sure that seal grand bushing is
contacting to bearing race (7).
1) Assemble the spool and sleeve that the
groove for spring is alined.
2) Make sure that the spool (17) can be turned
smoothly.
3) In case that the sleeve and spool have
aliment mark, aline the mark.
4) Put together 3 springs and other 3 springs
back to back and install them to spool and
sleeve.. Use special tool for their installation
as shown below.
To Next Page
