160

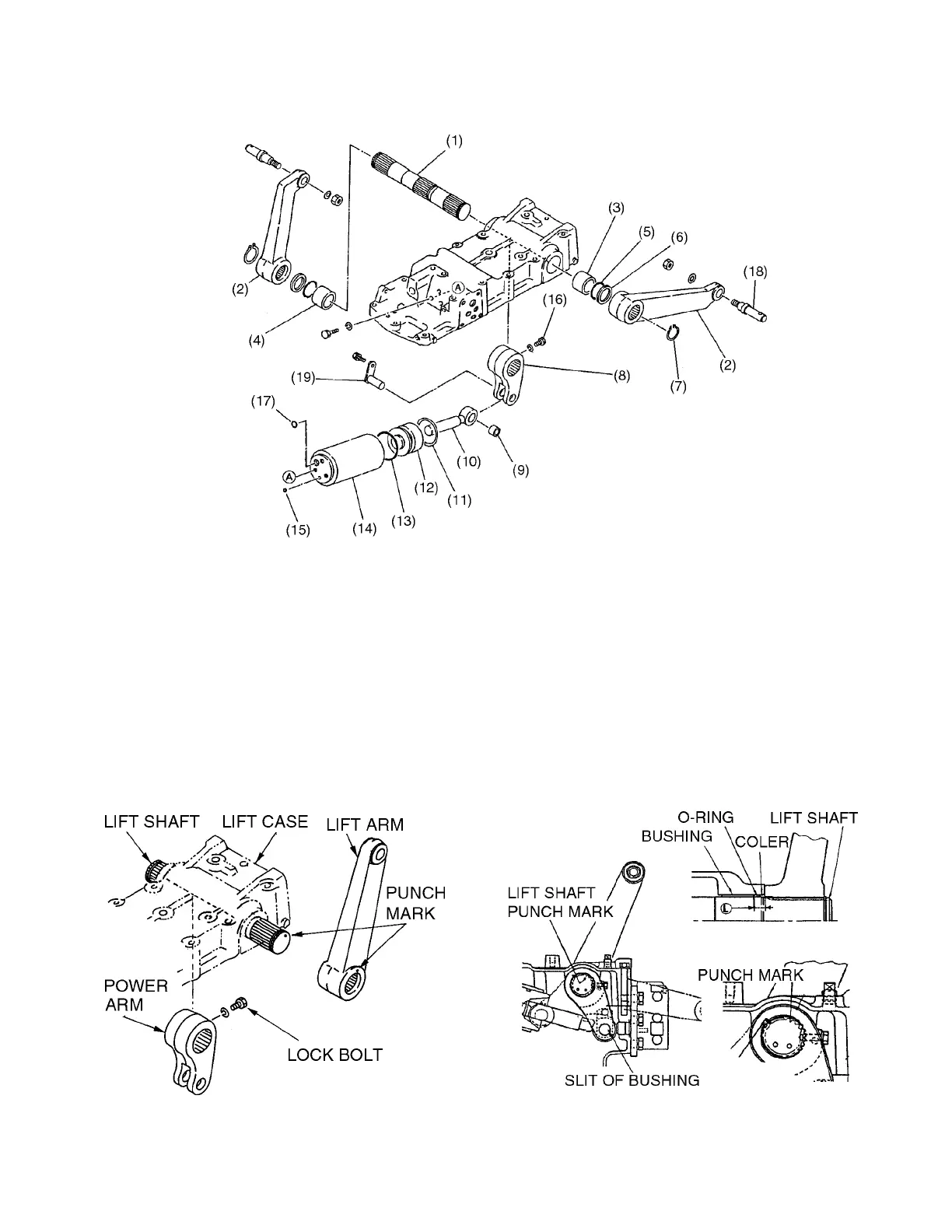

3) Install the bushing (9) to piston rod (10).
Bushing should be placed with its slit
coming as shown in the following drawing.
4) Install the bushings (3) to lift case. Bushing
should be placed with its seam coming as
shown in the following drawing.
5) Drive in bushing at lift shaft to [0.374~0.394
in.] deep as shown in the following drawing.
6) Apply molybdenum(MoS2) to spline of lift
shaft.
*Special tool for bushing (3) and (4)
insullation.
Parts number 19619021000 and
19619025000 for (3) and (4).
