90

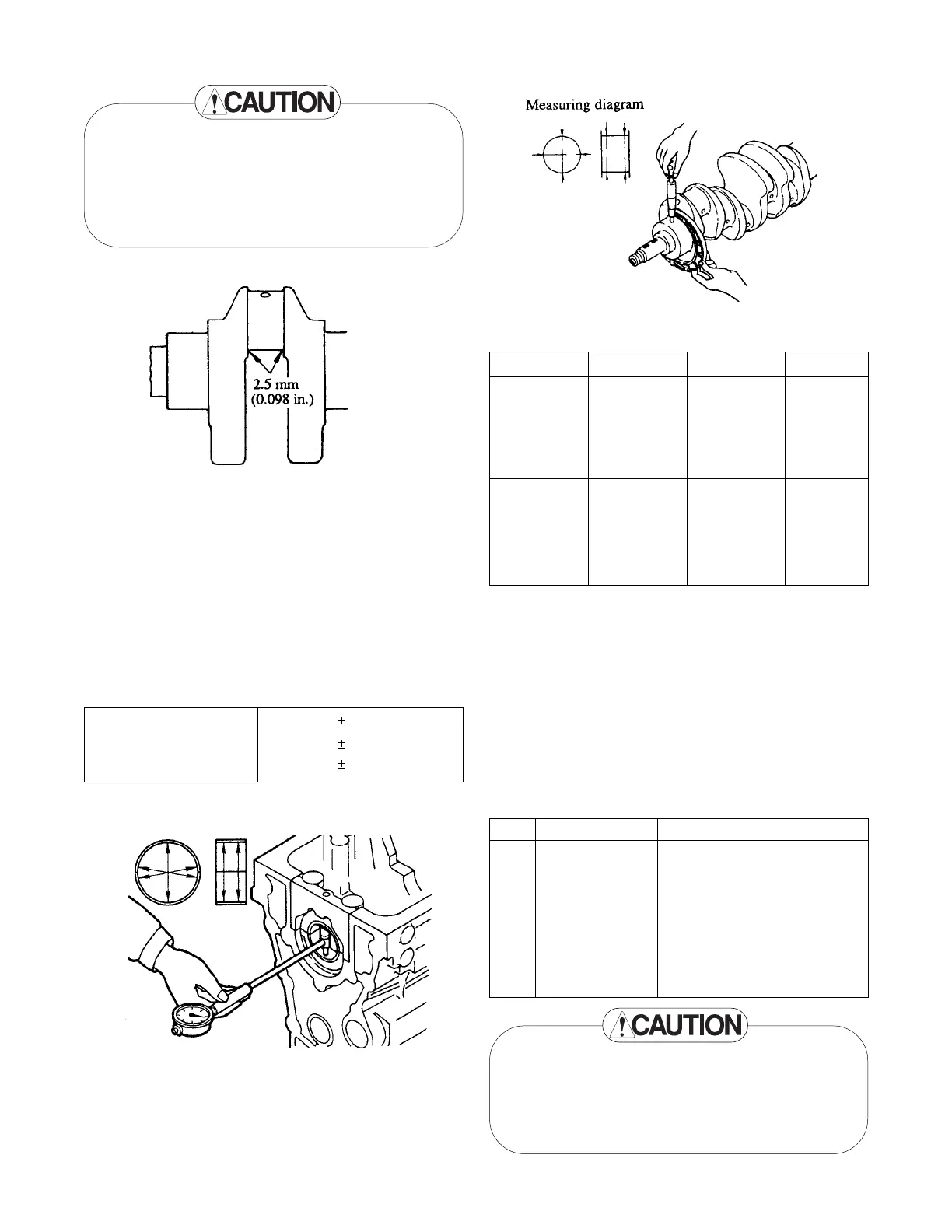

a)Grind all the crankpins of one crankshaft to
the same undersize.
b)Finish the crankpin fillets to a radius of
2.5 mm(0.098 in.).
(2)Clearance between journal and main
bearing
(a)Install the main bearing(upper and
lower halves)and cap to the cylinder
block and tighten the cap bolts to the
specified torque. Measure the bore in
the bearing for the journal as shown in
the illustration.
(b)Measure the diameter of the journal as
shown in the illustration to find the
clearance between the journal and main
bearing.
Unit:mm(in.)
Item Nominal size Standard Limit
Diameter 52 51.985to
of journal (2.05) 52.000
(standard) (2.04665to
2.04724
clearance 0.030 to
between 0.077
journal and (0.00118to 0.100
main bearing 0.00303 (0.00394)
(c)If the clearance exceeds the limit, install a
new bearing and check the clearance again.
(d)If the clearance still exceeds the limit,grind
the journal to 0.25 mm(0.0098in.), 0.50
mm(0.0197 in.)or 0.75 mm(0.0295 in.)
undersize and use undersizemain bearing.
Journal undersize Unit:mm(in.)
Item Undersize Finish
0.25 51.75
(0.0098) 2.0374
0.50 51.50
(0.0197) 2.0276
0.75 51.25
(0.0295) 2.0177
5.25 0.25 kgf•m
(38 1.8 lbf•ft)
[51.5 2.5 N•m]
Tightening torque
0
-0.00059
0
-0.015
Journal
0
-0.00059
0
-0.015
0
-0.00059
0
-0.015
a)Grind all the journals of one crankshaft
to the same undersize.
b)Finish the journal fillets to a radius of 2
mm(0.08 in.).
