Cushman 898673 - Page 105

103
Reference
Frame
893594, 894198, 894533
1 120177 Lockwasher , 3/8 2..............
2 306562 Nut, 3/8-16 2...................
3 306836 Screw, 3/8-16 x 2 1/4 2..........
4 306981 Washer, 3/8 2..................
5 450453 Nut, M8-1.25 (G10.9) 16.........
6 452454 Nut, M10-1.50 (10.9) 6..........
7 450412 Lockwasher , M10 2.............
8 452389 Screw, M8-1.25 x 25 (8.8) 12.....
9 452398 Screw, M10-1.50 x 20 (8.8) 2.....
10 452406 Screw, M10-1.50 x 90 (8.8) 4.....
11 800571 Nut, M10-1.25 (8.8) 1...........
12 809174 Washer, 3/8 (1.94” dia.) 1........
13 843568 Mount, transmission 1...........
14 843760 Mount, hydraulic pump 1.........
15 844272 Mount, engine (right) 1..........
16 841885 Mount, isolation 2...............
17 894581 Mount, motor (left) 1............
18 894582 Mount, motor (right) 1...........
19 893525 Support, platform 2.............
20 894580 Frame, engine mount 1..........
21 452388 Screw, M8-1.25 x 20 (8.8) 4......
22 01550-08163 Screw 4..................
23 11741-85200 Support, transmission 1....
24 11710-77100 Bracket, rear mount 1......
25 08310-00103 Nut 1....................
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.

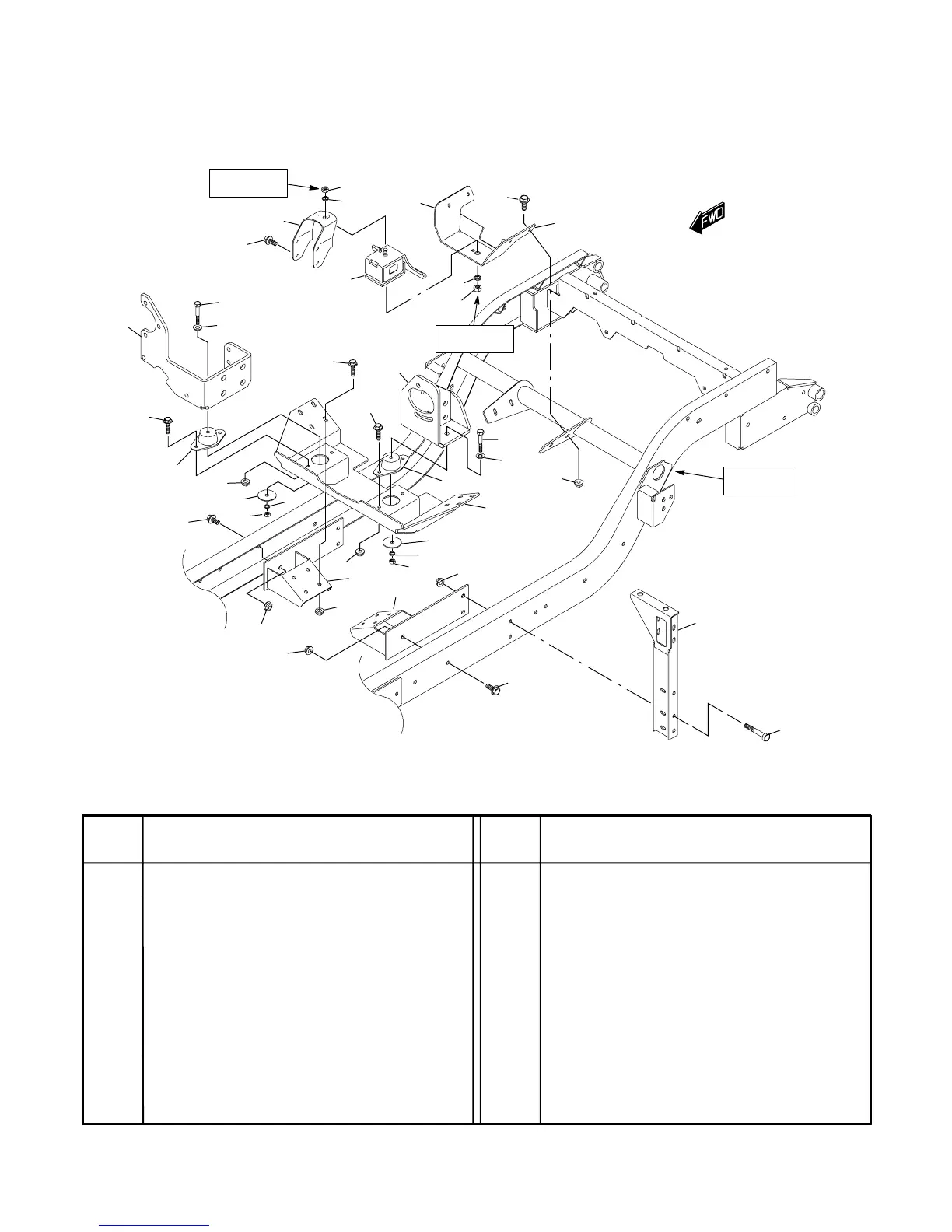

ENGINE and TRANSMISSION MOUNTS (DIESEL)
7
8
10
13
24
25
19
7
11
11
Use
Loctite 242
23
22
3
4
15
21
16
8
21
5
12
1
2
9
6
6
5
18
5
12
1
2
17
6
3
4
5
14
20
9
16
Use
Loctite 242
Front Of Vehicle
