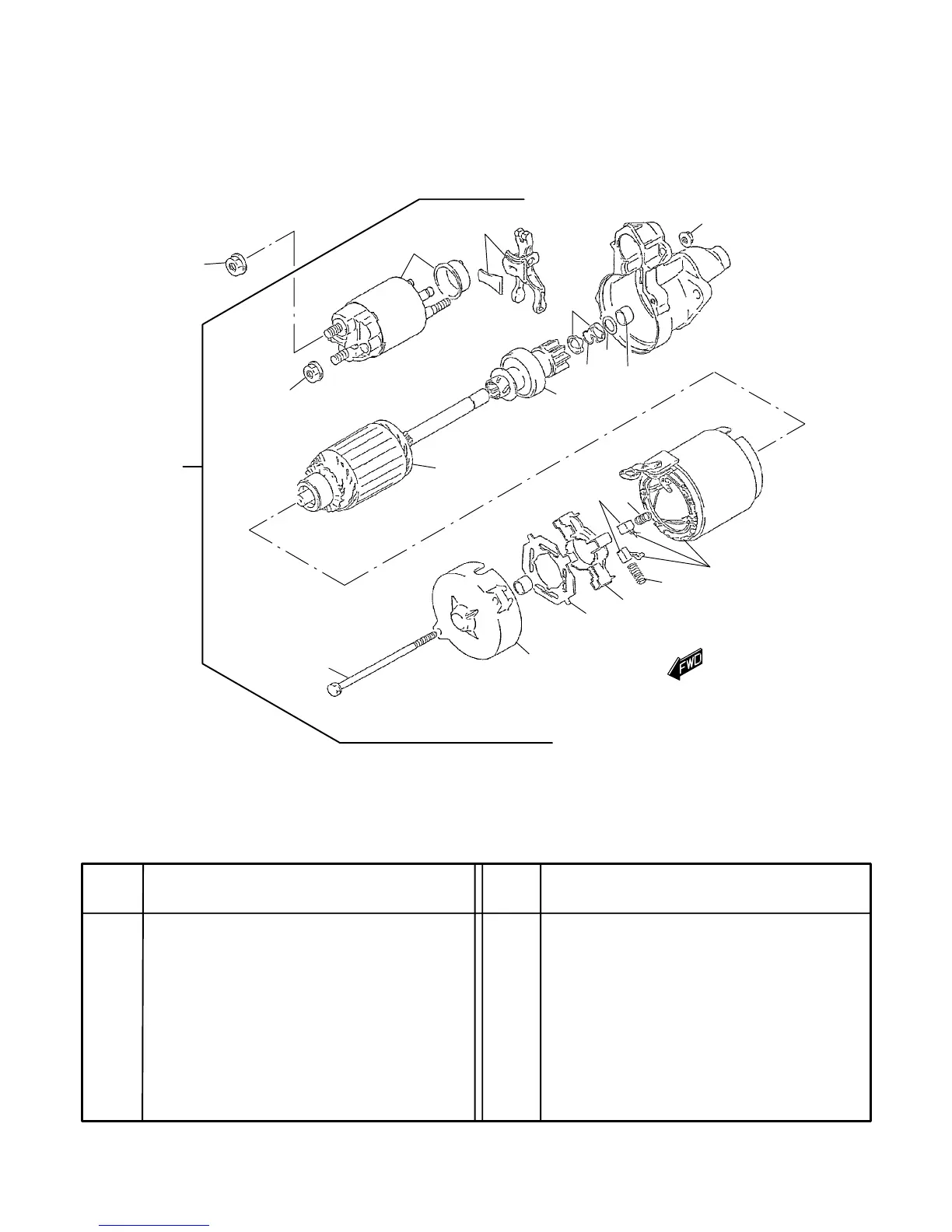

STARTER MOTOR (SUZUKI 970)
Ref.
No.
Part
No.
Description
No.
Req’d
No.
Req’d
Description
Part
No.
Ref.
No.
9
1 31100-79X50 Motor, starting 1...........
2 31152-51
A10 :Bushing 1...............
3 31220-51
A10 :Switch assembly 1........
4 08316-10063 :Nut 2....................
5 31191-85020 :Lever, pinion drive 1.......
6 08316-10083 :Nut, switch 2.............
7 31153-51
A10 :W asher 1................
8 31312-51
A10 :Ring, snap 1.............
9 31310-51
A10 :Nut, pinion stop 2.........
10 31320-51
A10 :Clutch assembly 1........
11 31311-51
A10 :Armature 1..............
12 31110-52
A50 :Yoke assembly 1.........
13 31131-51
A10 ::Brush 4.................
14 31135-51
A10 :Spring, brush 4...........
15 31173-51
A10 :Holder, brush 1...........
16 31175-51
A10 :Insulator 1...............
17 31172-51
A10 :Bushing 1...............
18 31281-51
A10 :Bolt 2...................
19 08316-10083 Nut 1....................
: INDENTED PART NAMES INDICATE THESE PARTS ARE INCLUDED IN THE PRECEDING ASSEMBLY
7
2
8
4
5
3
19
6
11
10
14
12
15
16
17
18
13
14
1
Front Of Vehicle
To Next Page
